CSV 240 (24A-203B101) - Cub Cadet Chipper/Shredder/Vacuum (1999) Transmission Parts Diagram

Chipper/Shredder/Vacuum

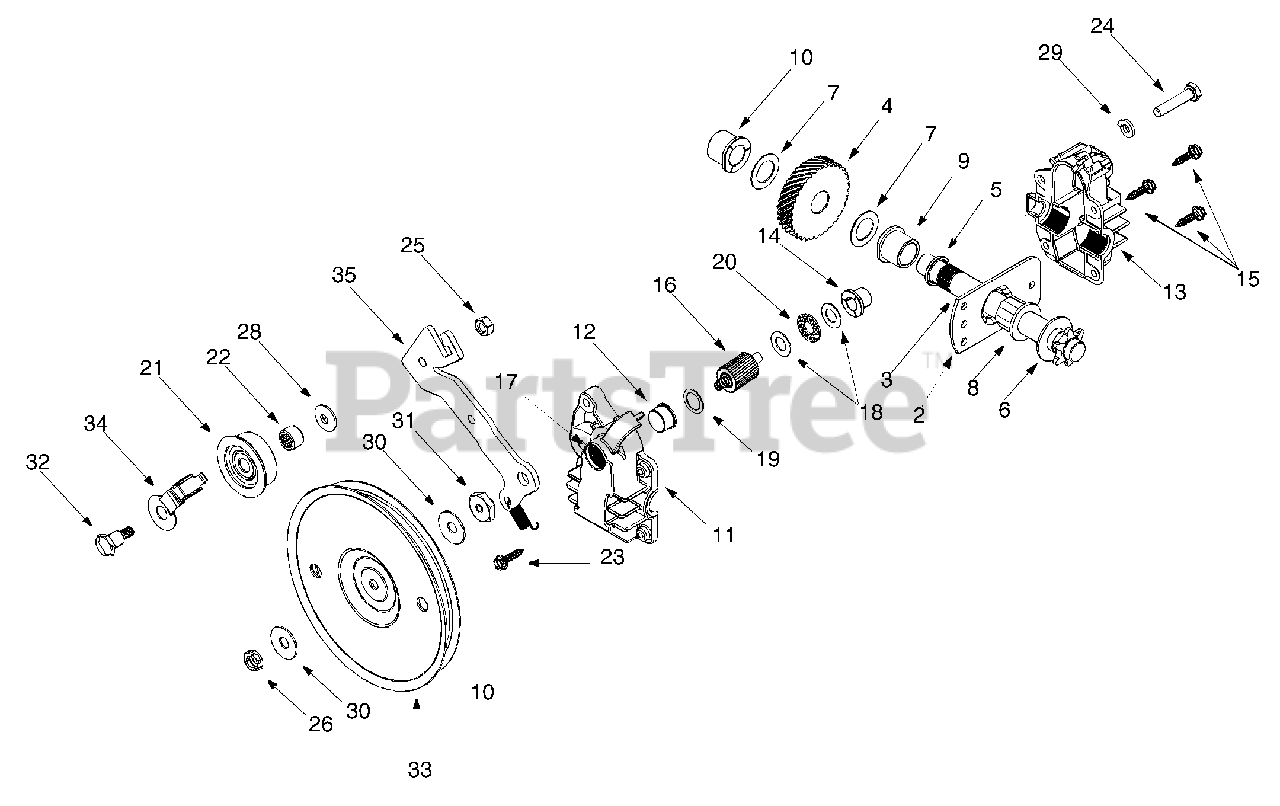

Transmission Parts Diagram

  • Title

?1

Cub Cadet 618-0255

Transmission Assembly Complete
(Superseded to 918-0255)

$782.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

Cub Cadet 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 711-1118

Output Shaft 6T Sprocket
(Superseded to 911-1118)

$32.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 717-1432

Helical 34T Gear

$58.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 721-0213

Oil Seal

$10.99

$

In Stock, Qty 15

0

6

Cub Cadet 736-0187

Flat Washer .64 ID x 1.24 OD

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0336

Flat Washer 5/8 x 1.0
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

8

Cub Cadet 741-0413

Hex Flange Bearing .631 ID

$9.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 741-0414

Flange Bearing .629 ID

$10.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 741-0415

Flange Bearing .566 ID
(Superseded to 941-0415)

$10.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 719-0325

Lower Housing

$92.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 748-0373

Flange Bearing .503 ID

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 719-0324A

Upper Housing

$92.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 748-0208A

Flange Bearing .378 ID

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0589

Hex Washer Screw #10-16 x .75

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 717-1433

Pinion Shaft 10T

$40.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 721-0329

Oil Seal
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0314

Thrust Washer .382 ID x .684 OD

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-0520

Flat Washer .504 ID x .70 OD
(Superseded to 936-0520)

$5.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 741-0479

Thrust Bearing .375 ID x .812 OD

$11.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 656-0008

Pulley Ass'y Idler w/ Bearing
(Superseded to 956-0008)

$20.99

$

In Stock, only 2 left!

0

22

Cub Cadet 741-0556

Needle Bearing .375 ID x .375 OD

$17.99

$

In Stock, only 4 left!

0

23

Cub Cadet 710-0589

Hex Screw #10-16 x .75

$6.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-1062

Hex Cap Screw 1/4-20 x 1.25

$6.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 712-3045

Hex Jam Nut 5/16-24 LH Thd
(Superseded to 912-3045)

$4.99

$

Usually ships in 3-6 days

0

?27

Cub Cadet 732-0357A

Extension Spring 1.12 Lg

$4.49

$

In Stock, Qty 13

0

28

Cub Cadet 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

30

Cub Cadet 736-0425

Bell Washer .325 ID x .930 OD

$4.99

$

In Stock, Qty 13

0

31

Cub Cadet 738-0440

Shoulder Spacer .375 ID x .165 OD

$5.99

$

In Stock, only 4 left!

0

32

Cub Cadet 738-0826

Shoulder Bolt 1/4-28 x .375

$12.99

$

In Stock, only 1 left!

0

33

Cub Cadet 756-0618

Flat Pulley 5.06 Dia
(Superseded to 756-0656)

$36.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 782-7569

Belt Keeper

$7.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 782-7570

Idler Bracket
(Superseded to 682-0054)

$25.99

$

Usually ships in 3-6 days

0
