CSV 240 (24A-203B101) - Cub Cadet Chipper/Shredder/Vacuum (1998) Wheel Parts Diagram

Chipper/Shredder/Vacuum

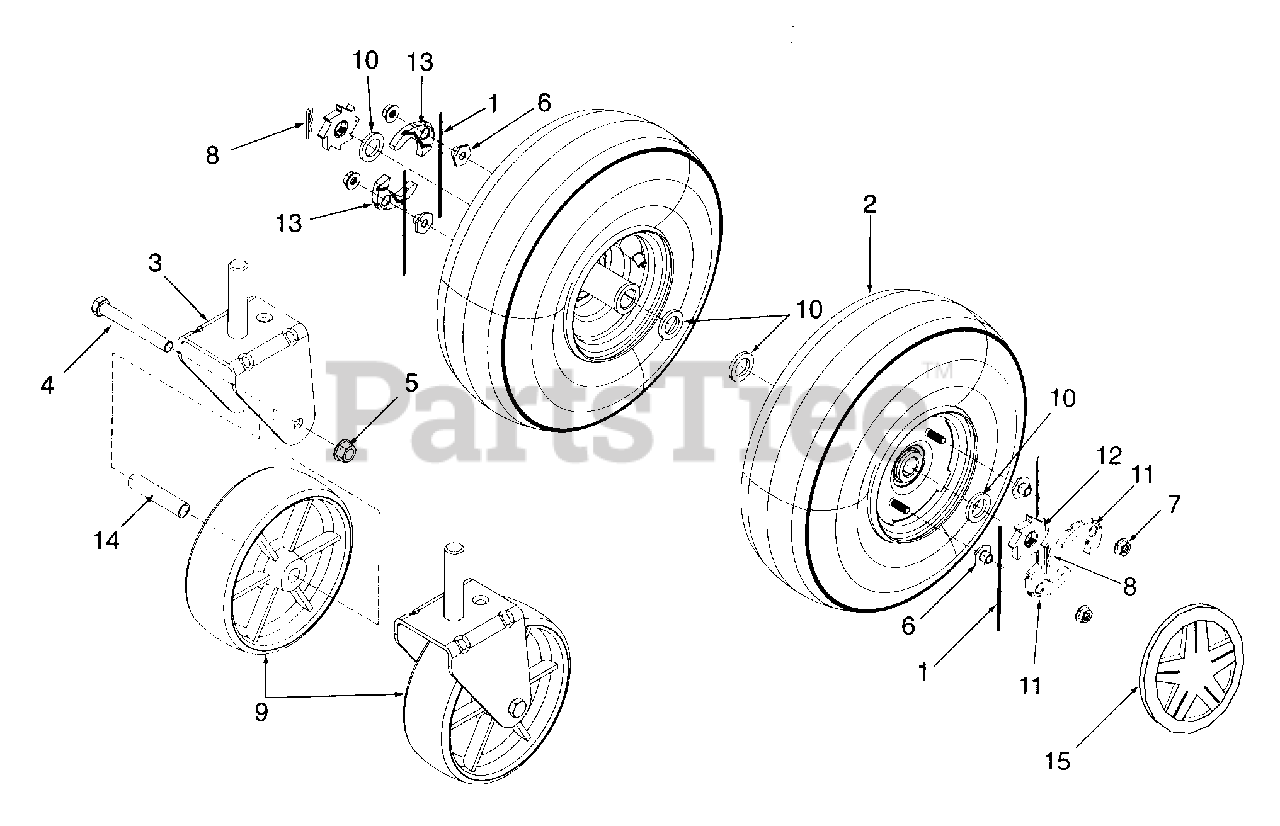

Wheel Parts Diagram

  • Title
1

Cub Cadet 10662B

Spring, Plastic Ratchet

$

$

Currently unavailable

2

Cub Cadet 634-0136

Wheel Assembly, Complete
(Superseded to 634-0244)

Variations

Cub Cadet 634-0136-0911

Wheel Assembly, CSV - Carlisle Gray (0911)

$138.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0136-0931

Wheel Assembly, CSV - Carlisle Beige (0931)

$138.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0136-0941

USE 634-0243 WHEEL ASM-COMP C - Carlisle Yellow (0941)

$

$

Not available

$138.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0129-0499

Ratchet Rim Ass'y, Complete

$

$

Not available

Cub Cadet 734-0210

Tire, Pneumatic, 10 x 4
(Superseded to 734-1598-0901)

$119.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0255

Valve, Tubeless Air
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 741-0487A

Bearing, Flange, .632 ID
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 681-0088-0498

Bracket Assembly, Pivot Wheel
(Superseded to 681-0088)

$49.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0194

Screw, Hex Cap, 3/8-16 x 3.0

$

$

Not available

5

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0456

Nut, Special Hex 1/4-20

$10.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 734-1804

Wheel, 6.00 x 2.00
(Superseded to 734-1804A)

$41.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-0366

Washer, Flat, .64 x 1.12 x .12

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 748-0188B

Pawl, LH .345 ID
(Superseded to 948-0188B)

$

$

Not available

12

Cub Cadet 748-0405

Ratchet, Wheel, .5 Serr ID x 1.62

$11.99

$

In Stock, Qty 7

0

13

Cub Cadet 748-0381

Pawl, RH .345 ID

$11.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 750-1042

Spacer, .384 ID x .5 OD x 2.3 Lg

$13.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 731-1850

Hubcap, 4.0 Beige
(Superseded to 931-1850)

$

$

Not available
