CSV 240 (24A-203B100) - Cub Cadet Chipper/Shredder/Vacuum Engine (2000) Engine Assembly (Model CSV240) Parts Diagram

Chipper/Shredder/Vacuum Engine

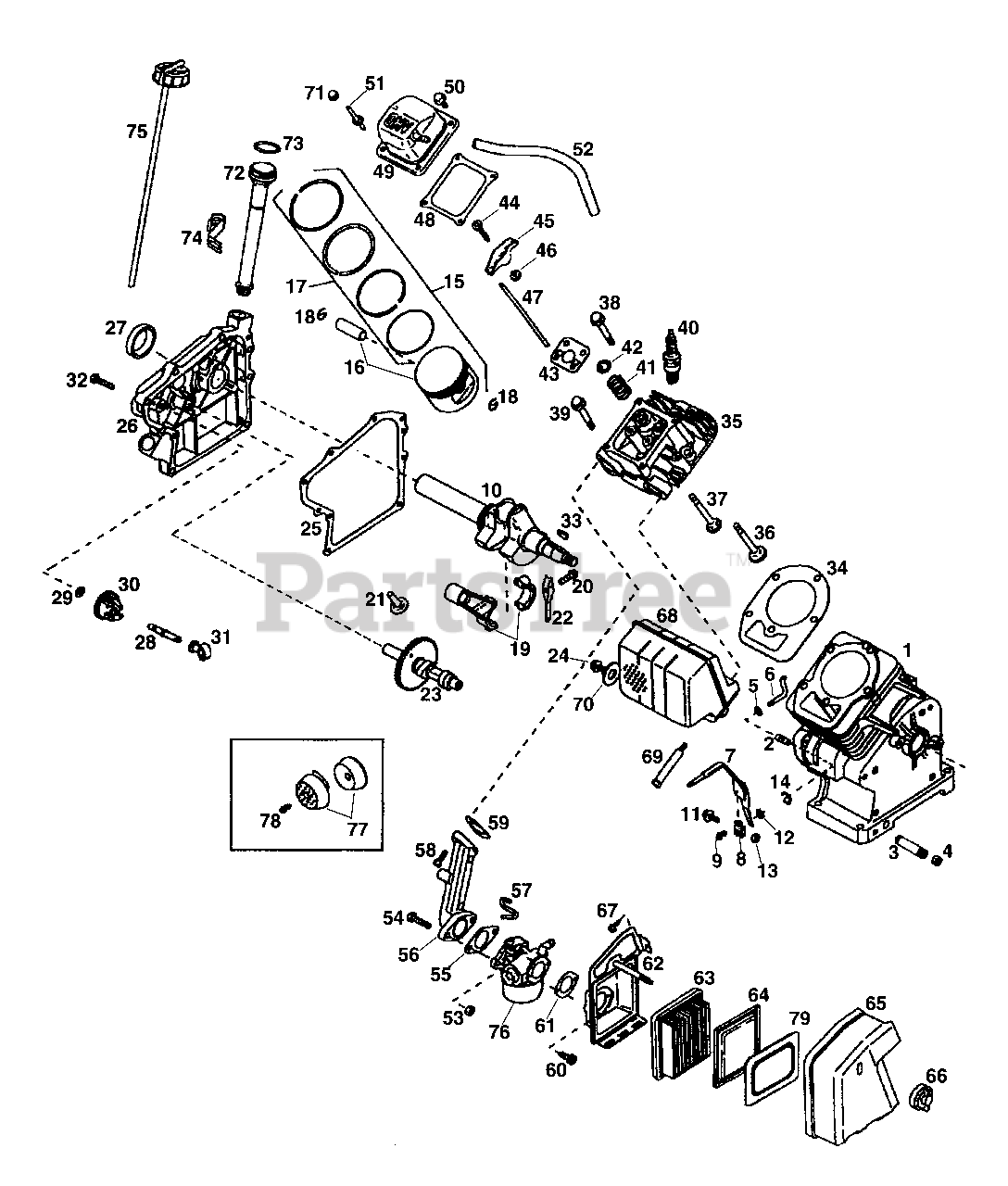

Engine Assembly (Model CSV240) Parts Diagram

  • Title

1

Cub Cadet TC-36718

Cylinder

Note: (Includes dowel pin & seal)

$

$

Not available

2

Cub Cadet TC-26727

Dowel Pin

$1.99

$

In Stock, Qty 5

0

3

Cub Cadet TC-31857

Oil Drain Extension

$9.49

$

Usually ships in 3-12 days

0

4

Cub Cadet TC-30969

Extension Cap

$5.49

$

Usually ships in 3-12 days

0

5

Cub Cadet TC-28277

Washer

$1.99

$

In Stock, only 4 left!

0

6

Cub Cadet TC-30589

Governor Rod

$5.49

$

In Stock, only 1 left!

0

7

Cub Cadet TC-36618

Governor Lever

$6.99

$

Usually ships in 3-12 days

0

8

Cub Cadet TC-36700

Governor Lever Clamp

$

$

Not available

9

Cub Cadet TC-651028

Screw, Torx T 15, 8-32 x 3/8"

$1.99

$

In Stock, only 4 left!

0

10

Cub Cadet TC-36831

Crankshaft

$103.99

$

Usually ships in 3-12 days

0

11

Cub Cadet TC-29826

Screw, 10-32 x 3/4"

$1.99

$

In Stock, only 4 left!

0

12

Cub Cadet TC-29918

Lock Washer

$1.99

$

In Stock, Qty 5

0

13

Cub Cadet TC-29216

Lock Nut, 10-32

$1.99

$

In Stock, only 3 left!

0

14

Cub Cadet TC-29642

Retaining Ring

$100.99

$

In Stock, only 2 left!

0

15

Cub Cadet TC-40004

Piston, Pin & Ring Set

Note: (Standard)

$74.99

$

In Stock, only 1 left!

0

Cub Cadet TC-40005

Piston, Pin & Ring Set (.010" OS)
(Superseded to TC-40045)

$

$

Not available

16

Cub Cadet TC-36070

Piston & Pin Assy (Standard)

Note: (Incl. 18)

$

$

Not available

Cub Cadet TC-36071

Piston & Pin Assy (.010" OS)

Note: (Incl. 18)

$

$

Not available

17

Cub Cadet TC-40006

Ring Set (Standard)

$42.99

$

Usually ships in 3-12 days

0

Cub Cadet TC-40007

Ring Set (.010" OS)

$34.99

$

Usually ships in 3-12 days

0

18

Cub Cadet TC-20381

Piston Pin Retaining Ring

$1.99

$

In Stock, Qty 7

0

19

Cub Cadet TC-32875A

Connecting Rod Assy
(Superseded to TC-32875B)

Note: (Incl. 20 & 22)

$47.99

$

In Stock, only 1 left!

0

20

Cub Cadet TC-32610A

Connecting Rod Bolt

$1.99

$

In Stock, Qty 6

0

21

Cub Cadet TC-35616

Valve Lifter

$

$

Not available

22

Cub Cadet TC-36611

Oil Dipper

$1.99

$

In Stock, only 1 left!

0

23

Cub Cadet TC-37040

Camshaft

$30.99

$

In Stock, only 1 left!

0

24

Cub Cadet TC-651015

Screw, 1 /4-20 x 1-1/8"

$1.99

$

In Stock, only 4 left!

0

25

Cub Cadet TC-36624

Cylinder Cover Gasket

$6.99

$

In Stock, only 1 left!

0

26

Cub Cadet TC-36625

Cylinder Cover

Note: (Incl. 27-31)

$111.99

$

Usually ships in 3-12 days

0

27

Cub Cadet TC-27897

Oil Seal

$8.49

$

In Stock, only 3 left!

0

28

Cub Cadet TC-30574A

Governor Shaft

$7.49

$

In Stock, only 4 left!

0

29

Cub Cadet TC-30590A

Washer

$1.99

$

In Stock, Qty 7

0

30

Cub Cadet TC-30591

Governor Gear Assy

Note: (Incl. 30)

$13.99

$

In Stock, only 1 left!

0

31

Cub Cadet TC-36057

Governor Spool

$1.99

$

In Stock, only 4 left!

0

32

Cub Cadet TC-650488

Screw, 1/4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

33

Cub Cadet TC-610961

Flywheel Key

$1.49

$

In Stock, Qty 20+

0

34

Cub Cadet TC-36719

Cylinder Head Gasket

$10.99

$

In Stock, only 2 left!

0

35

Cub Cadet TC-36721

Cylinder Head

$

$

Not available

36

Cub Cadet TC-36471

Exhaust Valve

Note: (Standard); (Incl. 42)

$13.99

$

Usually ships in 3-12 days

0

Cub Cadet TC-36472

Exhaust Valve (1/32" OS)

Note: (Incl. 42)

$

$

Not available

37

Cub Cadet TC-29314B

Intake Valve

Note: (Standard); (Incl. 42)

$

$

Not available

Cub Cadet TC-29315C

Intake Valve (1/32" OS)

Note: (Incl. 42)

$

$

Not available

38

Cub Cadet TC-650912

Screw, 5/16-18 x 1-1/2"

$1.99

$

In Stock, only 2 left!

0

39

Cub Cadet TC-650999

Screw, 5/16-18 x 2-41/64"

$3.99

$

In Stock, Qty 5

0

40

Cub Cadet 759-3331

Resistor Spark Plug (N4C)

$3.99

$

In Stock, only 2 left!

0

41

Cub Cadet TC-37039

Valve Spring

$3.99

$

In Stock, only 2 left!

0

42

Cub Cadet TC-31673

Valve Spring Cap

$1.99

$

In Stock, only 1 left!

0

43

Cub Cadet TC-36649

Push Rod Guide

$3.99

$

Usually ships in 3-12 days

0

44

Cub Cadet TC-650913

Rocker Arm Stud

$1.99

$

Usually ships in 3-12 days

0

45

Cub Cadet TC-35624A

Rocker Arm

$26.99

$

Usually ships in 3-12 days

0

46

Cub Cadet TC-650914

Nut, 1/4-28

$1.99

$

Usually ships in 3-12 days

0

47

Cub Cadet TC-36629

Push Rod

$3.99

$

In Stock, only 2 left!

0

48

Cub Cadet TC-35626

Rocker Arm Cover Gasket

$3.99

$

In Stock, only 1 left!

0

49

Cub Cadet TC-36630A

Rocker Arm Cover

$

$

Not available

50

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

51

Cub Cadet TC-651012

Stud

$1.99

$

In Stock, only 1 left!

0

52

Cub Cadet TC-36675A

Breather Tube

$5.49

$

In Stock, only 1 left!

0

53

Cub Cadet TC-650852

Nut, 1/4-20

$1.99

$

In Stock, only 1 left!

0

54

Cub Cadet TC-650451

Screw, 1/4-20 x 1"

$1.99

$

In Stock, only 4 left!

0

55

Cub Cadet TC-26756

Carb. to Intake Pipe Gasket

$2.99

$

In Stock, Qty 10

0

56

Cub Cadet TC-36631

Intake Pipe

$43.99

$

Usually ships in 3-12 days

0

57

Cub Cadet TC-36632

Throttle Link

$1.49

$

In Stock, Qty 18

0

58

Cub Cadet TC-650451

Screw, 1/4-20 x 1"

$1.99

$

In Stock, only 4 left!

0

59

Cub Cadet TC-36581

Intake Pipe Gasket

$1.49

$

In Stock, Qty 13

0

60

Cub Cadet TC-28820

Screw, 10-32 x 1/2"
(Superseded to TC-651081)

$4.49

$

Usually ships in 3-12 days

0

61

Cub Cadet TC-27272A

Air Cleaner Gasket

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet TC-36633A

Air Cleaner Body

$26.99

$

In Stock, only 1 left!

0

63

Cub Cadet TC-36046

Air Cleaner Filter

Note: (Incl. 61)

$8.99

$

In Stock, Qty 11

0

64

Cub Cadet TC-36634

Air Cleaner Filter (Poly)

$7.49

$

Usually ships in 3-12 days

0

65

Cub Cadet TC-37073

Air Cleaner Cover

$15.99

$

Usually ships in 3-12 days

0

66

Cub Cadet TC-650886

Wing Nut

$2.49

$

Usually ships in 3-12 days

0

67

Cub Cadet TC-650821

Screw, 10-32 x 31/64"

$1.99

$

Usually ships in 3-12 days

0

68

Cub Cadet TC-36641

Muffler

$

$

Not available

69

Cub Cadet TC-650988

Screw, 1/4-20 x 2-9/32"

$4.49

$

In Stock, only 3 left!

0

70

Cub Cadet TC-36674

Spacer

$1.99

$

In Stock, only 1 left!

0

71

Cub Cadet TC-650852

Nut & Lock Washer

$1.99

$

In Stock, only 1 left!

0

72

Cub Cadet TC-35554

Oil Fill Tube

$19.99

$

In Stock, only 1 left!

0

73

Cub Cadet TC-35499

O-Ring

$1.49

$

In Stock, only 3 left!

0

74

Cub Cadet TC-36651

Fill Tube Clip

$1.99

$

In Stock, only 1 left!

0

75

Cub Cadet TC-36640

Dipstick
(Superseded to TC-36902)

$7.49

$

Usually ships in 3-12 days

0

76

Cub Cadet TC-640025B

Carburetor Assy
(Superseded to TC-640025C)

$105.99

$

In Stock, only 1 left!

0

77

Cub Cadet TC-36085

Spark Arrestor Kit

Note: (Incl. 78); Optional

$12.99

$

Usually ships in 3-12 days

0

78

Cub Cadet TC-650760

Screw, 8-32 x 3/8"

$1.99

$

In Stock, only 3 left!

0

79

Cub Cadet TC-37074

Air Cleaner Baffle

$1.99

$

In Stock, only 4 left!

0

Cub Cadet TC-754299A

Short Block

$

$

Currently unavailable
