CSV 240 (24A-203B100) - Cub Cadet Chipper/Shredder/Vacuum (2002) General Assembly Parts Diagram

Chipper/Shredder/Vacuum

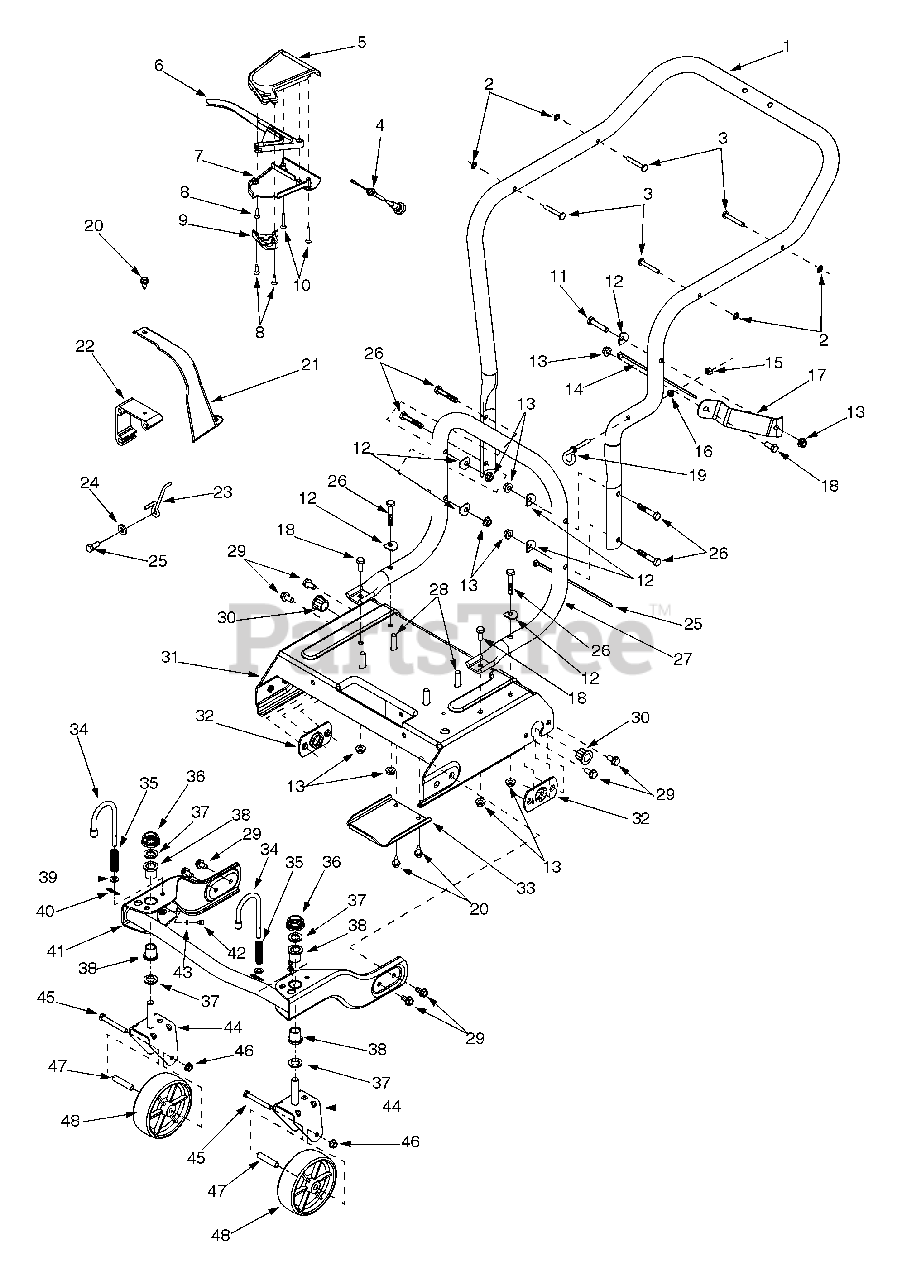

General Assembly Parts Diagram

  • Title

1

Cub Cadet 749-1095

Upper Handle

Variations

Cub Cadet 749-1095-0638

HANDLE-UPPER CSV - MTD/TROY-BILT RED (0638)

$180.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-1095-0650

HANDLE-UPPER CSV - RED METALLIC (0650)

$180.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-1095-0665

HANDLE-UPPER CSV - YARDMAN GREEN (0665)

$180.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-1095-0716

HANDLE-UPPER CSV - CUB YELLOW-99 (0716)

$207.99

$

Usually ships in 3-6 days

0

$207.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 1539-019

Push Nut

$4.49

$

In Stock, Qty 10

0

3

Cub Cadet 711-0737

Stud Pin .250 x 1.75
(Superseded to 911-0737)

$4.99

$

In Stock, Qty 6

0

4

Cub Cadet 746-0714

Clutch Cable 56"
(Superseded to 946-0714)

$33.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 731-1735

Upper Clutch Cover
(Superseded to 753-0832)

$61.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 731-0620

Drive Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

7

Cub Cadet 731-1736

Lower Clutch Cover

$

$

Currently unavailable

8

Cub Cadet 710-0841

Screw #10-12 x .750

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 731-1059

Mounting Cable Cap
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

10

Cub Cadet 710-1331

Screw #10-16 x 1.25

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 710-0805

Hex Cap Screw 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0451

Shoulder Washer .320 ID x .93 OD

$4.49

$

In Stock, Qty 11

0

13

Cub Cadet 712-3004A

Hex Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

17

Cub Cadet 781-0647

Discharge Chute Bracket

Variations

Cub Cadet 781-0647-0498

USE 781-0647-0716 BRACKET ST - OLD CUB YELLOW (0498)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0647-0637

Stabilizer Bracket, D - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0647-0716

BRACKET STABILIZER D - CUB YELLOW-99 (0716)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0647-0638

BRACKET. STABILIZER D - MTD/TROY-BILT RED (0638)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0647-0650

BRACKET. STABILIZER D - RED METALLIC (0650)

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0647-0662

BRACKET. STABILIZER D - OYSTER GRAY (0662)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0647-0665

BRACKET. STABILIZER D - YARDMAN GREEN (0665)

$12.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 747-0815

Eye Bolt

$15.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-0896

Hex Washer Screw 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 731-1646

Belt Cover

$14.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 719-0359

Engine Mounting Adapter

$31.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 747-0929A

Belt Keeper

$12.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-3008

Flat Washer .344 x .75 x .12
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-0157

Hex Cap Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 15

0

26

Cub Cadet 710-3103

Hex Cap Screw 5/16-18 x 1.75

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 749-1094

Lower Push Handle

Variations

Cub Cadet 749-1094-0638

HANDLE-LOWER PUSH - MTD/TROY-BILT RED (0638)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-1094-0650

HANDLE-LOWER PUSH - RED METALLIC (0650)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-1094-0665

HANDLE-LOWER PUSH - YARDMAN GREEN (0665)

$78.99

$

Usually ships in 3-6 days

0

Cub Cadet 749-1094-0716

HANDLE-LOWER PUSH - CUB YELLOW-99 (0716)

$78.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-0502A

Screw 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

29

Cub Cadet 710-0604A

Hex Washer Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 741-0413

Hex Flange Bearing .631 x .720

$9.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 681-0097A

Frame Assembly

Variations

Cub Cadet 681-0097A-0637

FRAME ASM - POWDER BLACK (0637)

$158.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0097A-0638

FRAME ASM - MTD/TROY-BILT RED (0638)

$158.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0097A-0650

FRAME ASM - RED METALLIC (0650)

$137.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0097A-0498

FRAME ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 681-0097A-0716

FRAME ASSEMBLY (CUB YELLOW) - CUB YELLOW-99 (0716)

$

$

Not available

$137.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 781-0700

Axle Bracket
(Superseded to 781-0700-0637)

Variations

Cub Cadet 781-0700-0637

Axle Bracket - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 781-0697

Transmission Cover
(Superseded to 781-0697-0637)

Variations

Cub Cadet 781-0697-0637

COVER TRANS - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0697-0662

USE 781-0697-0637 COVER TRANS - OYSTER GRAY (0662)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 747-0924

Lock Pin

$20.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

36

Cub Cadet 726-0214

Push Cap

$10.99

$

In Stock, Qty 5

0

37

Cub Cadet 736-0366

Flat Washer 5/8 ID x 1.0 OD

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 741-0487A

Flange Bearing .632 ID
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0264

Flat Washer .330 ID x .630 OD

$6.99

$

In Stock, only 2 left!

0

40

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 681-0087

Bracket Assembly

Variations

Cub Cadet 681-0087-0483

BRACKET ASSY-FRONT WHEEL - CHARCOAL GRAY (0483)

$188.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0087-0498

BRACKET ASSY-FRONT WHEEL - OLD CUB YELLOW (0498)

$233.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0087-0637

BRACKET ASSY-FRONT WHEEL - POWDER BLACK (0637)

$233.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0087-0638

BRACKET ASSY-FRONT WHEEL - MTD/TROY-BILT RED (0638)

$216.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0087-0650

BRACKET ASSY-FRONT WHEEL - RED METALLIC (0650)

$188.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0087-0662

BRACKET ASSY-FRONT WHEEL - OYSTER GRAY (0662)

$188.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0087-0665

BRACKET ASSY-FRONT WHEEL - YARDMAN GREEN (0665)

$188.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0087-0691

USE 681-0087-0637 BRACKET ASS - BLACK JACK (0691)

$233.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0087-0716

BRACKET ASSY-FRONT WHEEL - CUB YELLOW-99 (0716)

$216.99

$

Usually ships in 3-6 days

0

$188.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 737-3000

Grease Fitting 3/16
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0931

Flat Washer.203 ID x .403 OD

$4.99

$

In Stock, only 1 left!

0

44

Cub Cadet 681-0088

Bracket Assembly

Variations

Cub Cadet 681-0088-0483

BRACKET ASSY PIVOT WHEEL - CHARCOAL GRAY (0483)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0088-0498

BRACKET ASSY PIVOT WHEEL - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0088-0637

BRACKET ASSY PIVOT WHEEL - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0088-0638

BRACKET ASSY PIVOT WHEEL - MTD/TROY-BILT RED (0638)

$56.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0088-0650

BRACKET ASSY PIVOT WHEEL - RED METALLIC (0650)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0088-0662

BRACKET ASSY PIVOT WHEEL - OYSTER GRAY (0662)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0088-0665

BRACKET ASSY PIVOT WHEEL - YARDMAN GREEN (0665)

$56.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0088-0691

USE 681-0088-0637 BRACKET ASS - BLACK JACK (0691)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0088-0716

BRACKET ASSY PIVOT WHEEL - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-0521

Hex Cap Screw 3/8-16 x 3.0

$5.49

$

In Stock, Qty 11

0

46

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

47

Cub Cadet 750-1042

Spacer

$13.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 734-1804

Wheel 6.0 x 2.0
(Superseded to 734-1804A)

$41.99

$

Usually ships in 3-6 days

0
