CSV 240 (247-203B100) - Cub Cadet Chipper/Shredder/Vacuum Engine (1997) Engine Assembly II Parts Diagram

Chipper/Shredder/Vacuum Engine

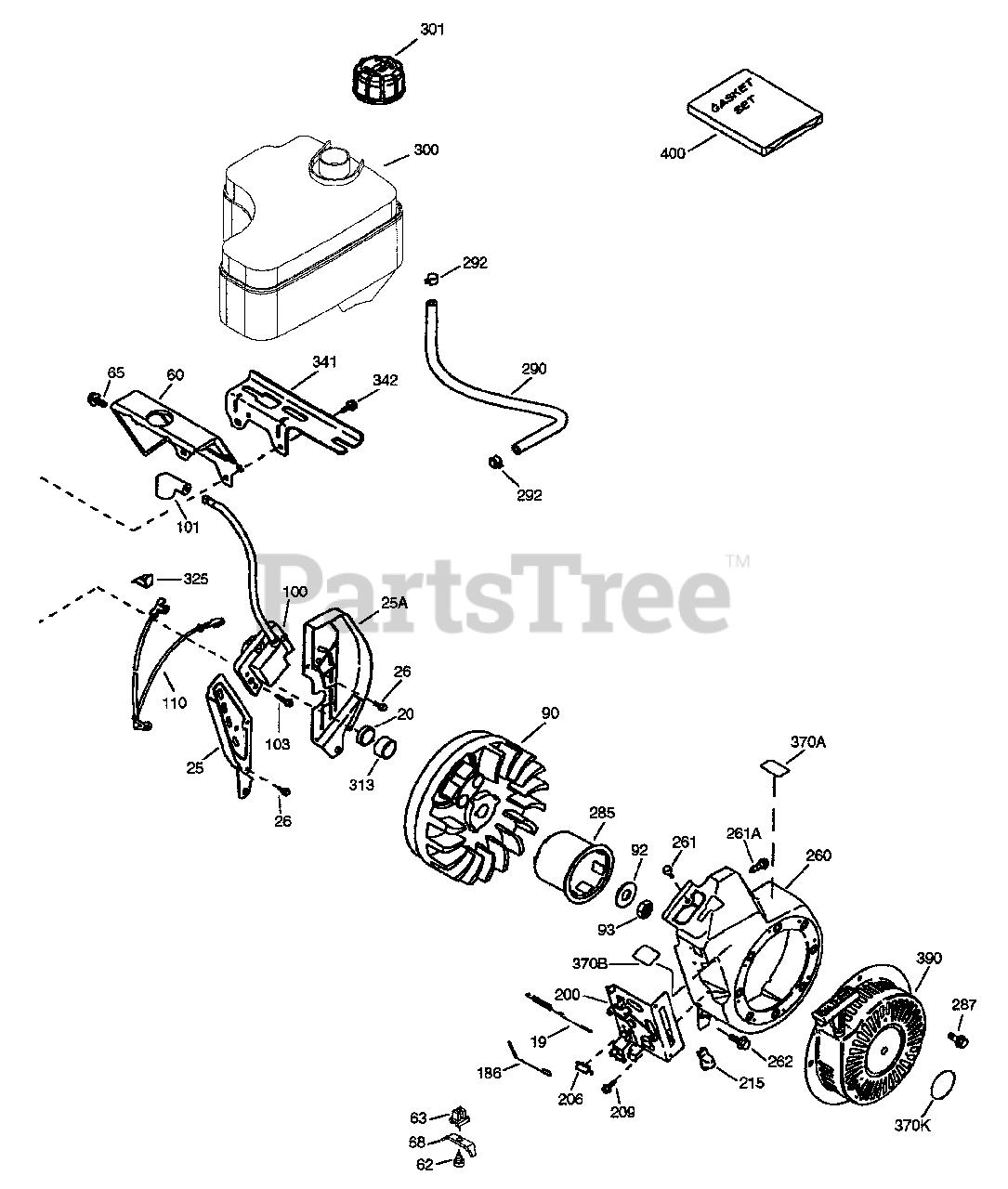

Engine Assembly II Parts Diagram

  • Title

Cub Cadet TC-754299

Short Block Assembly

$

$

Currently unavailable

19

Cub Cadet TC-36710

Extension Spring

$7.49

$

In Stock, only 2 left!

0

20

Cub Cadet TC-32600

Oil Seal

$

$

Not available

25

Cub Cadet TC-36621

Air Baffle (Left)

$

$

Not available

25A

Cub Cadet TC-36622

Air Baffle (Right)

$

$

Not available

26

Cub Cadet TC-30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

60

Cub Cadet TC-36623A

Blower Housing Extension

$7.49

$

Usually ships in 3-12 days

0

62

Cub Cadet TC-650760

Screw, 8-32 x 3/8"

$1.99

$

In Stock, only 3 left!

0

63

Cub Cadet TC-28545

Grommet

$1.99

$

In Stock, Qty 5

0

65

Cub Cadet TC-30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

68

Cub Cadet TC-33356

Ground Terminal

$1.99

$

In Stock, Qty 5

0

90

Cub Cadet TC-611205

Flywheel

$108.99

$

Usually ships in 3-12 days

0

92

Cub Cadet TC-650815

Belleville Washer

$1.99

$

In Stock, Qty 10

0

93

Cub Cadet TC-650816

Flywheel Nut

$4.49

$

In Stock, Qty 6

0

100

Cub Cadet TC-34443B

Solid State Ignition
(Superseded to TC-34443D)

$44.99

$

Usually ships in 3-12 days

0

101

Cub Cadet TC-610118

Spark Plug Cover

$6.49

$

In Stock, only 4 left!

0

103

Cub Cadet TC-651007

Screw, Torx T-15, 10-24 x 15/16"

$1.99

$

In Stock, only 4 left!

0

110

Cub Cadet TC-36679A

Ground Wire

$

$

Not available

186

Cub Cadet TC-36711

Governor Link

$1.49

$

In Stock, only 2 left!

0

200

Cub Cadet TC-36736

Control Bracket

$38.99

$

Usually ships in 3-12 days

0

206

Cub Cadet TC-610973

Terminal

$3.99

$

In Stock, only 1 left!

0

209

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

215

Cub Cadet TC-36638

Control Knob

$1.99

$

Usually ships in 3-12 days

0

260

Cub Cadet TC-36864

Blower Housing

$94.99

$

Usually ships in 3-12 days

0

261

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

261A

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

262

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

?280

Cub Cadet TC-36893

Heat Shield

$39.99

$

Usually ships in 3-12 days

0

285

Cub Cadet TC-35985B

Starter Cup
(Superseded to TC-35985C)

$13.99

$

In Stock, only 1 left!

0

287

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

290

Cub Cadet TC-30705

Fuel Line

$16.99

$

In Stock, only 4 left!

0

292

Cub Cadet TC-26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 10

0

300

Cub Cadet TC-36863

Fuel Tank

$50.99

$

In Stock, Qty 7

0

301

Cub Cadet TC-36246

Fuel Cap
(Superseded to TC-37844)

$5.99

$

In Stock, Qty 6

0

313

Cub Cadet TC-34080

Spacer

$1.99

$

In Stock, only 2 left!

0

325

Cub Cadet TC-29443

Wire Clip

$1.99

$

In Stock, Qty 5

0

341

Cub Cadet TC-36644

Fuel Tank Bracket

$

$

Not available

342

Cub Cadet TC-651010

Screw, 1/4-20 x 7/8"

$1.99

$

Usually ships in 3-12 days

0

370A

Cub Cadet TC-36261

Lubrication Decal

$

$

Not available

370B

Cub Cadet TC-35703

Speed Control Decal

$2.49

$

Usually ships in 3-12 days

0

370K

Cub Cadet TC-36695

Starter Decal

$2.49

$

In Stock, only 2 left!

0

390

Cub Cadet TC-590704

Rewind Starter
(Superseded to TC-590788)

Note: This engine could've been built with TC-590746 starter.

$65.99

$

In Stock, only 1 left!

0

400

Cub Cadet TC-36720

Gasket Set

Note: Incl. (1) each of TC-26756, TC-27272A, TC-29673, TC-35626, TC-36581, TC-36624, TC-36719

$10.99

$

Usually ships in 3-12 days
