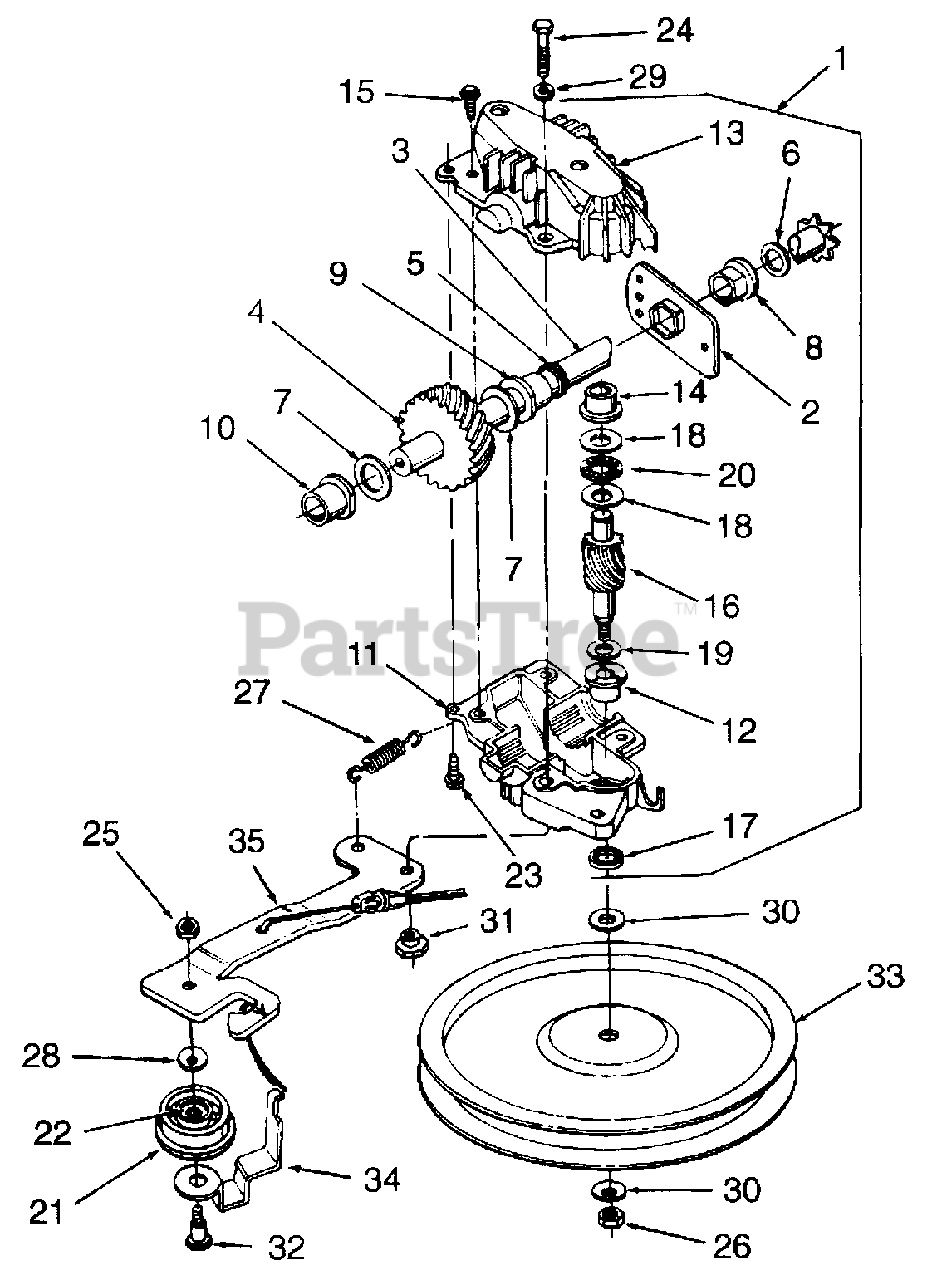

CSV 240 (247-203B100) - Cub Cadet Chipper/Shredder/Vacuum (1997) Drive Parts Diagram

Chipper/Shredder/Vacuum

Drive Parts Diagram

  • Title

1

Cub Cadet 618-0255

Transmission Assembly, Complete
(Superseded to 918-0255)

Note: Includes Ref. Nos. 2 thru 20

$782.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

Cub Cadet 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 711-1118

Shaft, Output w/6T Sprocket
(Superseded to 911-1118)

$32.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 717-1432

Gear, Helical 34T

$58.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 721-0213

Seal, Oil, .625 x .812

$10.99

$

In Stock, only 1 left!

0

6

Cub Cadet 736-0187

Washer, Flat, .64 x 1.24 x .06 HD

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0336

Washer, Flat, 5/8 x 1.0
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

8

Cub Cadet 741-0413

Bearing, Hex Flange, .631 ID

$9.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 741-0414

Bearing, Flange, .629 ID

$10.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 741-0415

Bearing, Flange, .566 ID
(Superseded to 941-0415)

$10.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 719-0325

Housing, Lower

$92.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 748-0373

Bearing, Flange, .503 ID

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 719-0324A

Housing, Upper

$92.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 748-0208A

Bearing, Flange, .378 ID

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-0589

Screw, Hex Tapp, #10-16 x .75

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 717-1433

Shaft, Pinion 10T

$40.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 721-0329

Seal, Oil, .50 x .687
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0314

Washer, Thrust, .382 x .684

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-0520

Washer, Flat, .504 x .70 x .030
(Superseded to 936-0520)

$5.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 741-0479

Bearing, Thrust, .375 x .812

$11.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 656-0008

Pulley Ass'y, Idler w/Bearing
(Superseded to 956-0008)

Note: Includes Ref. No. 22

$20.99

$

In Stock, only 3 left!

0

22

Cub Cadet 741-0556

Bearing, Needle, .375 x .375

$17.99

$

In Stock, only 3 left!

0

23

Cub Cadet 710-0589

Screw, Hex Tapp, #10-16 x .75

$6.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-1062

Screw, Hex w/Patch, 1/4-20 x 1.25

$6.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-0138

Nut, Hex, 1/4-28

$6.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 712-3045

Nut, Hex Jam, 5/16-24 L.H. Thd
(Superseded to 912-3045)

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 732-0357A

Spring, Extension, 1.12 Lg

$4.49

$

In Stock, only 3 left!

0

28

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .06

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

30

Cub Cadet 736-0425

Washer, Bell, .325 x .930 x .045

$4.99

$

In Stock, Qty 13

0

31

Cub Cadet 738-0440

Shoulder Spacer, .375 x .165

$5.99

$

In Stock, only 4 left!

0

32

Cub Cadet 738-0826

Shoulder Bolt, 1/4-28 x .375

$12.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 756-0618

Pulley, Flat, 5.06 Dia
(Superseded to 756-0656)

$36.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 782-7569

Belt Keeper

$7.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 782-7570

Bracket, Idler
(Superseded to 682-0054)

$25.99

$

Usually ships in 3-6 days

0
