CSV 24 (24A-103A101) - Cub Cadet Chipper/Shredder/Vacuum Engine (1998) Fuel Tank & Engine, External Parts Diagram

Chipper/Shredder/Vacuum Engine

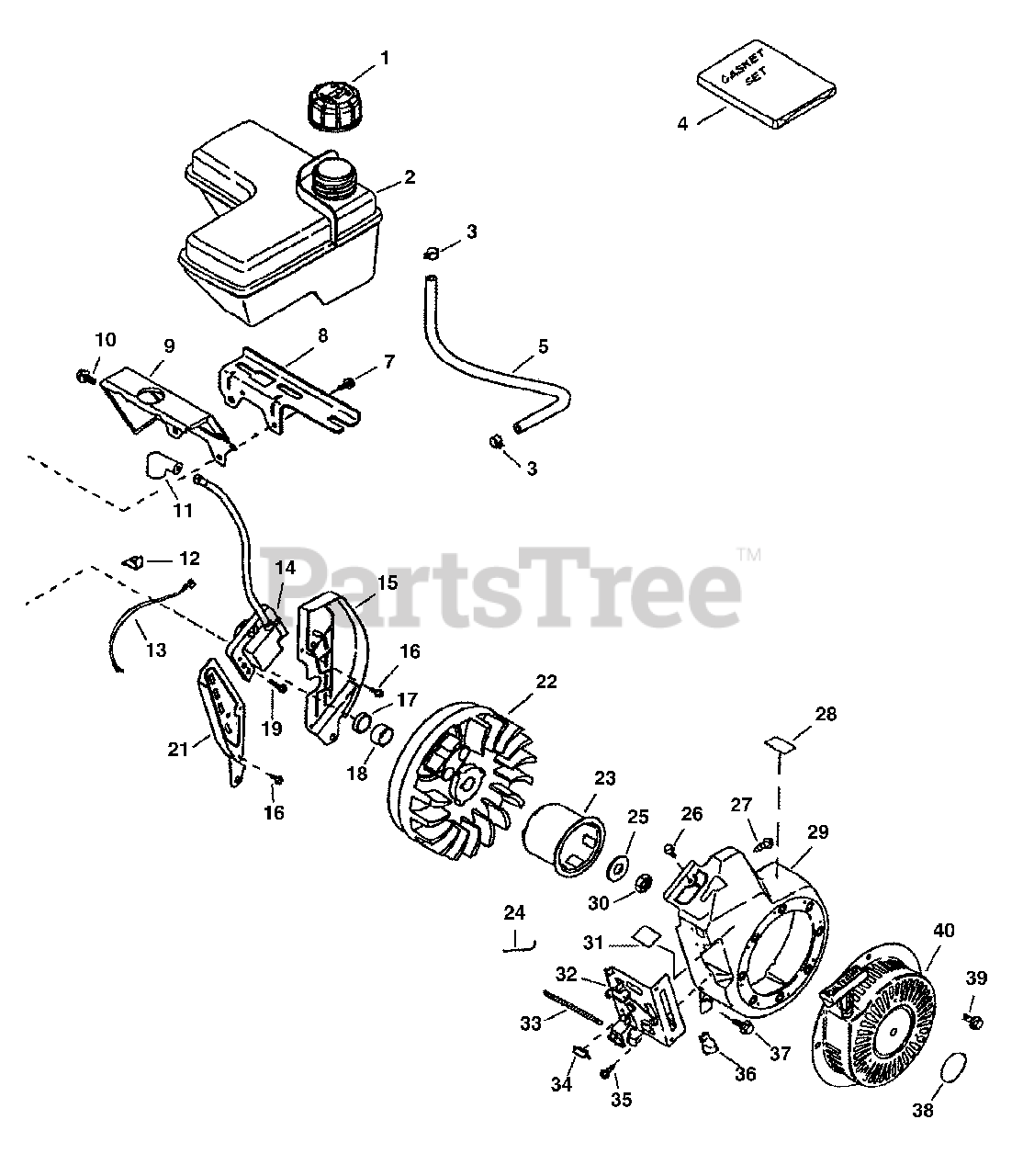

Fuel Tank & Engine, External Parts Diagram

  • Title

1

Cub Cadet TC-36246

Fuel Cap
(Superseded to TC-37844)

$5.99

$

In Stock, Qty 6

0

2

Cub Cadet TC-36752

Fuel Tank
(Superseded to TC-36863)

Note: (Incl. 1 & 3)

$50.99

$

In Stock, Qty 7

0

3

Cub Cadet TC-26460

Fuel Line Clamp

$1.49

$

In Stock, Qty 10

0

4

Cub Cadet TC-36716

Gasket Set

Note: (Incl. TC-26756, TC-27272A, TC-29673, TC-35626, TC-36581, TC-36624 and TC-36715)

$

$

Currently unavailable

5

Cub Cadet TC-30705

Fuel Line

$16.99

$

In Stock, only 4 left!

0

7

Cub Cadet TC-651010

Screw, 1/4-20 x 7/8"

$1.99

$

Usually ships in 3-12 days

0

8

Cub Cadet TC-36644

Fuel Tank Bracket

$

$

Not available

9

Cub Cadet TC-36623

Blower Housing Extension

$

$

Not available

10

Cub Cadet TC-30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

11

Cub Cadet TC-610118

Spark Plug Cover

$6.49

$

In Stock, only 4 left!

0

12

Cub Cadet TC-29443

Wire Clip

$1.99

$

In Stock, Qty 5

0

13

Cub Cadet TC-36054

Ground Wire

$3.99

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-34443A

Solid State Ignition
(Superseded to TC-34443D)

$44.99

$

Usually ships in 3-12 days

0

15

Cub Cadet TC-36622

Air Baffle (Right)

$

$

Not available

16

Cub Cadet TC-30200

Screw, 10-24 x 9/16"

$1.49

$

In Stock, Qty 10

0

17

Cub Cadet TC-32600

Oil Seal

$

$

Not available

18

Cub Cadet TC-34080

Spacer

$1.99

$

In Stock, only 2 left!

0

19

Cub Cadet TC-651007

Screw, Torx T-15, 15/16"

$1.99

$

In Stock, only 4 left!

0

21

Cub Cadet TC-36621

Air Baffle (Left)

$

$

Not available

22

Cub Cadet TC-611205

Flywheel

$108.99

$

Usually ships in 3-12 days

0

23

Cub Cadet TC-35985A

Starter Cup
(Superseded to TC-35985C)

$13.99

$

In Stock, only 1 left!

0

24

Cub Cadet TC-36711

Governor Link

$1.49

$

In Stock, only 2 left!

0

25

Cub Cadet TC-650815

Bell Washer

$1.99

$

In Stock, Qty 10

0

26

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

27

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

28

Cub Cadet TC-36261

Lube Decal

$

$

Not available

29

Cub Cadet TC-36753

Blower Housing
(Superseded to TC-36864)

$94.99

$

Usually ships in 3-12 days

0

30

Cub Cadet TC-650816

Flywheel Nut

$4.49

$

In Stock, Qty 6

0

31

Cub Cadet TC-33107

Speed Control Decal

$2.49

$

Usually ships in 3-12 days

0

32

Cub Cadet TC-36712

Control Bracket
(Superseded to TC-36736)

$38.99

$

Usually ships in 3-12 days

0

33

Cub Cadet TC-36710

Extension Spring

$7.49

$

In Stock, only 2 left!

0

34

Cub Cadet TC-610973

Terminal

$3.99

$

In Stock, only 1 left!

0

35

Cub Cadet TC-650821

Screw, 10-32 x 1/2"

$1.99

$

Usually ships in 3-12 days

0

36

Cub Cadet TC-36638

Control Knob

$1.99

$

Usually ships in 3-12 days

0

37

Cub Cadet TC-651008

Screw, 1/4-20 x 31/64"

$0.99

$

Usually ships in 3-12 days

0

38

Cub Cadet TC-36695

Starter Decal

$2.49

$

In Stock, only 2 left!

0

39

Rivet

Note: Not given

$

$

Not available

40

Cub Cadet TC-590736

Rewind Starter
(Superseded to TC-590788)

$65.99

$

In Stock, only 1 left!

0
