CSV 24 (24A-103A101) - Cub Cadet Chipper/Shredder/Vacuum (1998) Impeller Parts Diagram

Chipper/Shredder/Vacuum

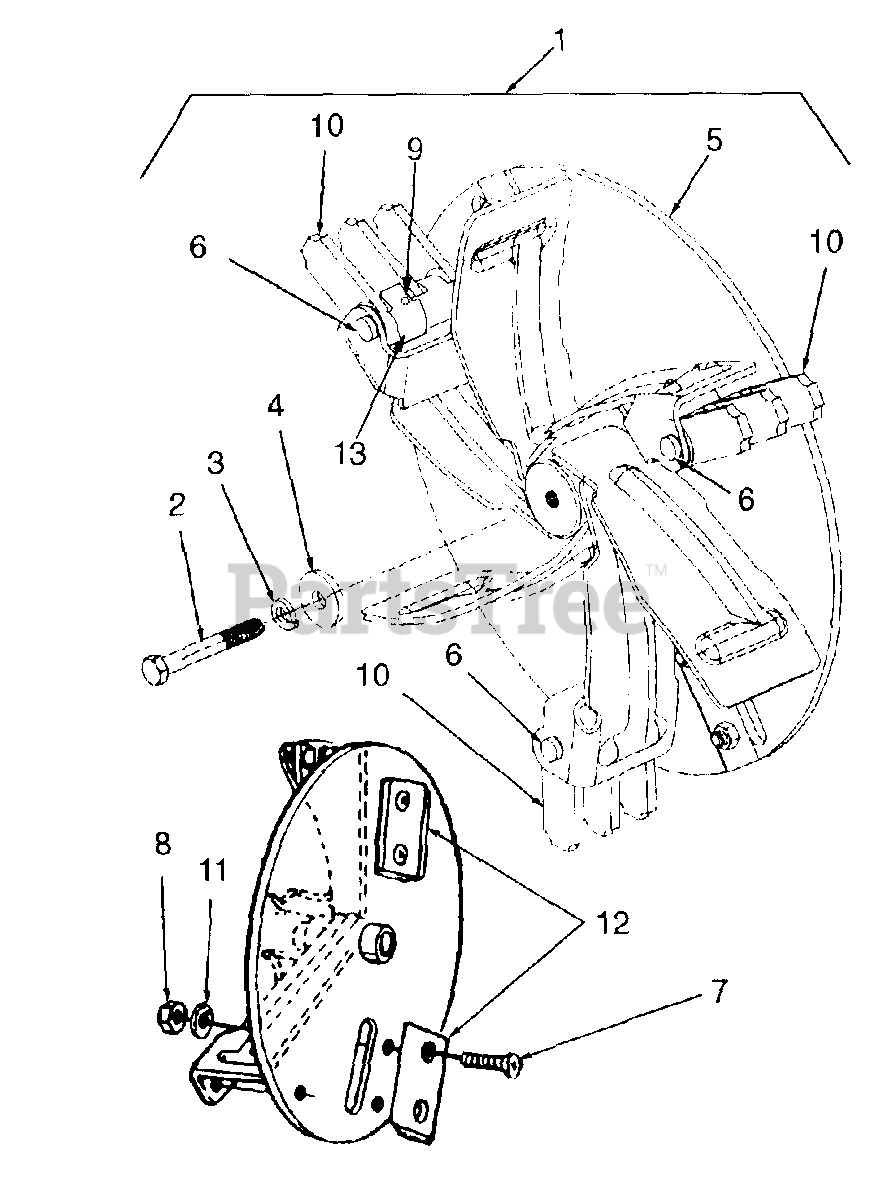

Impeller Parts Diagram

  • Title

1

Cub Cadet 681-0051

Impeller Ass'y, Complete (CVS24)
(Superseded to 981-04090)

$372.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0108

Impeller Ass'y, Complete (CVS240)
(Superseded to 981-04090)

Note: Includes Ref. Nos. 5 thru 13

$372.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-1273

Screw, Hex Cap, 3/8-24 x 2.75 GR5

$7.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 736-0217

Washer, Lock, 3/8 Heavy Duty

$4.49

$

In Stock, Qty 8

0

4

Cub Cadet 736-0247

Washer, Flat, .406 x 1-1/4 HD

$9.49

$

In Stock, Qty 14

0

5

Cub Cadet 681-0052

Impeller Assembly (CVS24)
(Superseded to 981-04091)

$533.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0107

Impeller Assembly (CVS240)
(Superseded to 981-04090)

$372.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 711-0833B

Pin, Clevis
(Superseded to 911-0833B)

$12.99

$

In Stock, Qty 6

0

7

Cub Cadet 710-1054

Screw, Flat Hd. Cap, 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0411

Nut, Hex Insert Lock, 5/16-24

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 715-0166

Pin, Spirol, .156 x 1.000 Std.

$6.99

$

In Stock, Qty 19

0

10

Cub Cadet 719-0329

Blade, Flail

$31.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 781-0490

Blade, Chipper
(Superseded to 981-0490)

$30.99

$

In Stock, Qty 9

0

13

Cub Cadet 781-0735

Clip, Retainer

$4.49

$

In Stock, Qty 20+

0
