CSV 24 (24A-103A101) - Cub Cadet Chipper/Shredder/Vacuum (1998) Frame & Handle Assembly Parts Diagram

Chipper/Shredder/Vacuum

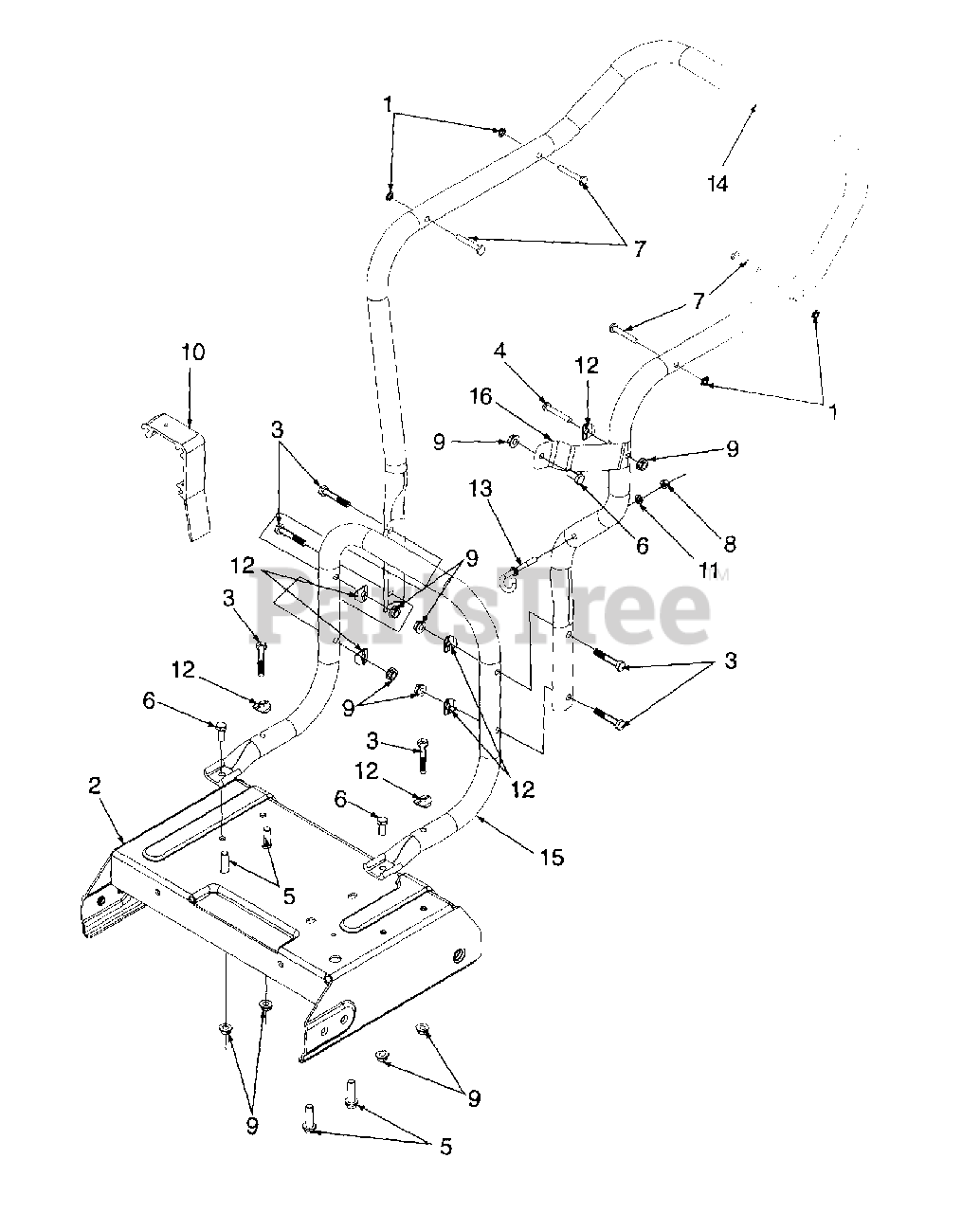

Frame & Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 1539-019

Nut, Push

$4.49

$

In Stock, Qty 10

0

2

Cub Cadet 681-0086A-0498

Frame Assembly

$

$

Not available

3

Cub Cadet 710-0380

Screw, Hex Cap, 5/16-18 x 1.75
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0442

Screw, Hex Cap, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0502A

Screw, Hex Wash. Hd. Tapp, 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

6

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 711-0737

Pin, Stud, 250 x 1.75
(Superseded to 911-0737)

$4.99

$

In Stock, Qty 6

0

8

Cub Cadet 712-0138

Nut Hex, 1/4-28

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 719-0330A

Adapter, Mounting

$

$

Not available

11

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

12

Cub Cadet 736-0451

Washer, Saddle, .32 ID x .93 OD

$4.49

$

In Stock, Qty 11

0

13

Cub Cadet 747-0815

Bolt, Eye

$15.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 749-0979-0498

Handle, Upper

$

$

Currently unavailable

15

Cub Cadet 749-0980-0498

Handle, Lower

$

$

Not available

16

Cub Cadet 781-0647-0498

Bracket, Chute Stabilizing
(Superseded to 781-0647-0716)

$12.99

$

Usually ships in 3-6 days

0
