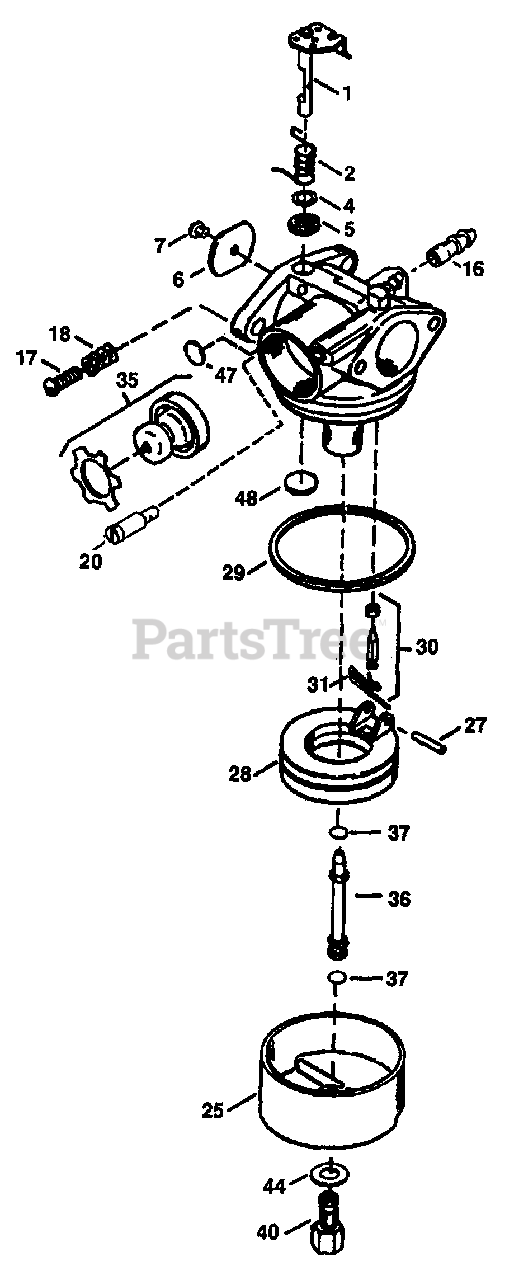

CSV 24 (247-103A100) - Cub Cadet Chipper/Shredder/Vacuum Engine (1997) Carburetor Parts Diagram

Chipper/Shredder/Vacuum Engine

Carburetor Parts Diagram

  • Title
1

Cub Cadet TC-631615

Throttle Shaft & Lever Assy

$9.49

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-631767

Throttle Return Spring

$1.99

$

In Stock, only 4 left!

0

4

Cub Cadet TC-631184

Dust Seal Washer

$1.99

$

In Stock, Qty 16

0

5

Cub Cadet TC-631183

Dust Seal

Note: (Throttle)

$1.99

$

In Stock, Qty 7

0

6

Cub Cadet TC-631036

Throttle Shutter

$1.99

$

Usually ships in 3-12 days

0

7

Cub Cadet TC-650506

Shutter Screw

$1.49

$

In Stock, Qty 14

0

16

Cub Cadet TC-632164

Fuel Fitting

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet TC-650417

Throttle Crack Screw/Idle Speed Screw
(Superseded to TC-651025)

$1.99

$

In Stock, only 4 left!

0

18

Cub Cadet TC-630766

Tension Spring

$1.99

$

In Stock, only 4 left!

0

20

Cub Cadet TC-640018

Idle Restrictor Screw

$8.99

$

In Stock, only 1 left!

0

25

Cub Cadet TC-631867

Float Bowl

$3.49

$

In Stock, Qty 11

0

27

Cub Cadet TC-631024

Float Shaft

$1.99

$

In Stock, Qty 10

0

28

Cub Cadet TC-632019

Float
(Superseded to TC-632019A)

$7.49

$

In Stock, Qty 7

0

29

Cub Cadet TC-631028

Float Bowl "O" Ring
(Superseded to TC-631028A)

$2.49

$

In Stock, Qty 18

0

30

Cub Cadet TC-631021

Inlet Needle, Seat & Slip
(Superseded to TC-631021B)

$6.99

$

In Stock, Qty 20+

0

31

Cub Cadet TC-631022

Spring Clip

$1.99

$

In Stock, only 4 left!

0

35

Cub Cadet TC-36045

Primer Bulb/Retainer Ring
(Superseded to TC-36045A)

$6.49

$

In Stock, only 1 left!

0

36

Cub Cadet TC-640019

Main Nozzle Tube

$6.99

$

In Stock, Qty 12

0

37

Cub Cadet TC-632547

"O" Ring, Main Nozzle Tube

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet TC-640015

High Speed Bowl Nut

$7.49

$

In Stock, only 3 left!

0

44

Cub Cadet TC-27110

Bowl Nut Washer
(Superseded to TC-27110A)

$2.49

$

In Stock, only 3 left!

0

47

Cub Cadet TC-630748

Welch Plug, Idle Mixture Well

$1.99

$

In Stock, only 1 left!

0

48

Cub Cadet TC-631027

Welch Plug, Atmospheric Vent

$1.99

$

In Stock, only 4 left!
