CSV 24 (247-103A100) - Cub Cadet Chipper/Shredder/Vacuum (1997) Front Bracket Parts Diagram

Chipper/Shredder/Vacuum

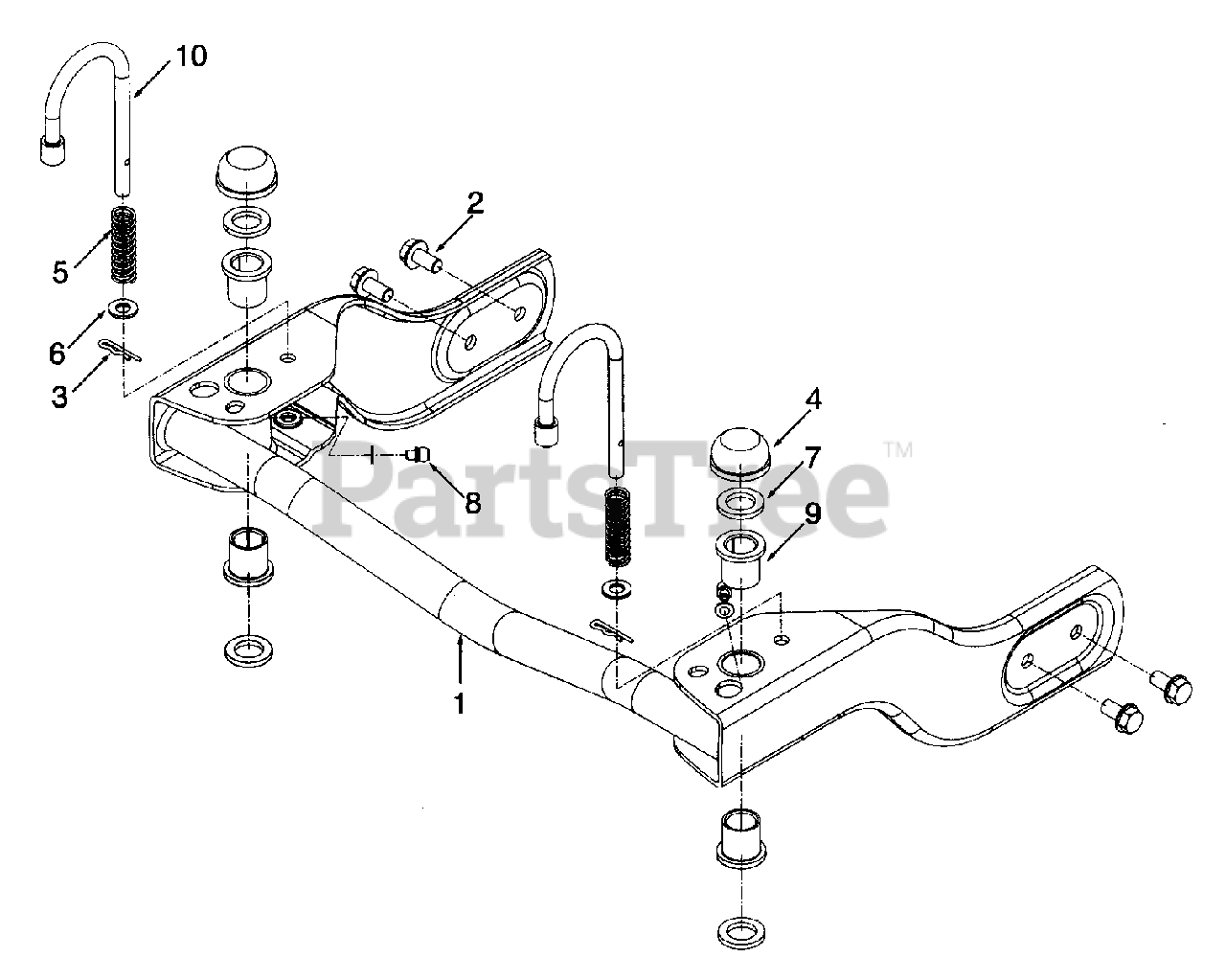

Front Bracket Parts Diagram

  • Title

1

Cub Cadet 681-0087

Bracket Assembly, Front Wheel

Note: Code 0498

Variations

Cub Cadet 681-0087-0483

BRACKET ASSY-FRONT WHEEL - CHARCOAL GRAY (0483)

$188.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0087-0498

BRACKET ASSY-FRONT WHEEL - OLD CUB YELLOW (0498)

$233.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0087-0637

BRACKET ASSY-FRONT WHEEL - POWDER BLACK (0637)

$233.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0087-0638

BRACKET ASSY-FRONT WHEEL - MTD/TROY-BILT RED (0638)

$216.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0087-0650

BRACKET ASSY-FRONT WHEEL - RED METALLIC (0650)

$188.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0087-0662

BRACKET ASSY-FRONT WHEEL - OYSTER GRAY (0662)

$188.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0087-0665

BRACKET ASSY-FRONT WHEEL - YARDMAN GREEN (0665)

$188.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0087-0691

USE 681-0087-0637 BRACKET ASS - BLACK JACK (0691)

$233.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0087-0716

BRACKET ASSY-FRONT WHEEL - CUB YELLOW-99 (0716)

$216.99

$

Usually ships in 3-6 days

0

$188.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0604

Screw, Hex Wash. Hd. Tapp, 5/16-18 x .62
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 726-0214

Cap, Push, 5/8

$10.99

$

In Stock, only 3 left!

0

5

Cub Cadet 732-0306

Spring, Compression
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

6

Cub Cadet 736-0264

Washer, Flat, .330 x .630 x .06

$6.99

$

In Stock, only 1 left!

0

7

Cub Cadet 736-0366

Washer, Flat, .64 x 1.12 x .12

$4.49

$

In Stock, only 2 left!

0

8

Cub Cadet 737-3000

Fitting, Lube, 3/16
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 741-0487A

Bearing, Flange, .632 ID
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 747-0924

Pin, Front Wheel Lock

$20.99

$

In Stock, only 1 left!

0
