CSV 220 (24A-030E100) - Cub Cadet Chipper/Shredder/Vacuum Engine (2002) Cylinder Group Parts Diagram

Chipper/Shredder/Vacuum Engine

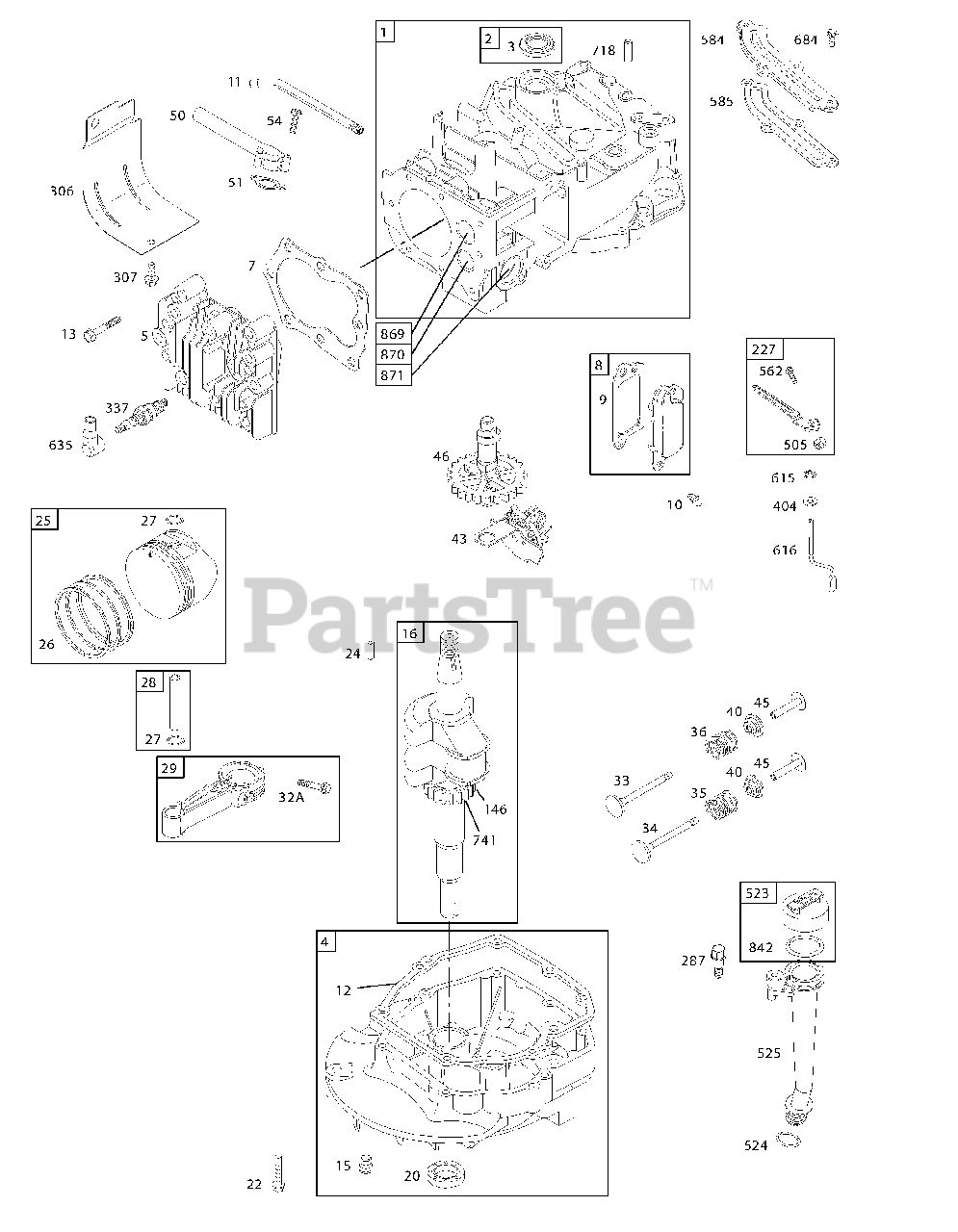

Cylinder Group Parts Diagram

  • Title

1

Cub Cadet BS-493260

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-399269

Kit-Bushing/Seal (Magneto Side)

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal-Oil (Magneto Side)
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 17

0

4

Cub Cadet BS-493279

Sump-Engine

$120.99

$

In Stock, only 2 left!

0

5

Cub Cadet BS-691160

Head-Cylinder
(Superseded to BS-594989)

$55.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-692249

Gasket-Cylinder Head

$8.49

$

In Stock, Qty 20+

0

8

Cub Cadet BS-495786

Breather Assembly
(Superseded to BS-590395)

$14.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-272481

Gasket-Breather
(Superseded to BS-699833)

$5.49

$

In Stock, only 1 left!

0

10

Cub Cadet BS-94650

Screw (Breather Assembly)

$3.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-691781

Tube-Breather

$10.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-692232

Gasket-Crankcase

$5.99

$

In Stock, Qty 20+

0

13

Cub Cadet BS-690912

Screw (Cylinder Head)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet BS-691680

Plug-Oil Drain (Square Socket)

$5.99

$

In Stock, only 1 left!

0

16

Cub Cadet BS-694478

Crankshaft

$172.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-399781

Seal-Oil (PTO Side)
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-691092

Screw (Crankcase Cover/Sump)

$3.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-499429

Piston Assembly

Note: (Standard)

$

$

Not available

Cub Cadet BS-499430

Piston Assembly (.010")

$39.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499431

Piston Assembly (.020")

$

$

Not available

Cub Cadet BS-499432

Piston Assembly (.030")

$46.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-499425

Ring Set

Note: (Standard)

$

$

Not available

Cub Cadet BS-499426

Ring Set (.010")

$20.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499427

Ring Set (.020")

$52.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-499428

Ring Set (.030")

$29.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-691866

Lock-Piston Pin

$4.49

$

In Stock, Qty 8

0

28

Cub Cadet BS-499423

Pin-Piston

$9.49

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-499424

Rod-Connecting
(Superseded to BS-590406)

$87.99

$

In Stock, only 1 left!

0

32A

Cub Cadet BS-695759

Screw (Connecting Rod)

$4.99

$

In Stock, only 2 left!

0

33

Cub Cadet BS-262651

Valve-Exhaust

$

$

Not available

34

Cub Cadet BS-262652

Valve-Intake

$

$

Not available

35

Cub Cadet BS-691270

Spring-Valve (Intake)

$5.49

$

In Stock, Qty 7

0

36

Cub Cadet BS-691270

Spring-Valve (Exhaust)

$5.49

$

In Stock, Qty 7

0

40

Cub Cadet BS-692194

Retainer-Valve

$5.99

$

In Stock, Qty 11

0

43

Cub Cadet BS-691997

Slinger-Gov./Oil

$25.99

$

Usually ships in 2-12 days

0

45

Cub Cadet BS-690548

Tappet-Valve

$9.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-691449

Camshaft

$73.99

$

In Stock, only 1 left!

0

50

Cub Cadet BS-497465

Manifold-Intake
(Superseded to BS-794305)

$

$

Not available

51

Cub Cadet BS-272199

Gasket-Intake
(Superseded to BS-272199S)

$4.99

$

In Stock, only 1 left!

0

54

Cub Cadet BS-691650

Screw (Intake Manifold)

$2.99

$

Usually ships in 2-12 days

0

146

Cub Cadet BS-690979

Key-Timing

$3.49

$

In Stock, Qty 8

0

227

Cub Cadet BS-690783

Lever-Governor Control

$15.99

$

Usually ships in 2-12 days

0

287

Cub Cadet BS-690940

Screw (Dipstick Tube)

$3.99

$

In Stock, Qty 8

0

306

Cub Cadet BS-690450

Shield-Cylinder

$10.99

$

Usually ships in 2-12 days

0

307

Cub Cadet BS-690345

Screw (Cylinder Shield)

$4.99

$

Usually ships in 2-12 days

0

337

Cub Cadet 759-3336

Plug-Spark
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

404

Cub Cadet BS-690272

Washer (Governor Crank)

$3.99

$

In Stock, only 2 left!

0

505

Cub Cadet BS-691251

Nut (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

523

Cub Cadet BS-495264

Dipstick
(Superseded to BS-499621)

$17.99

$

In Stock, only 4 left!

0

524

Cub Cadet BS-692296

Seal-Dipstick Tube

$4.99

$

In Stock, only 4 left!

0

525

Cub Cadet BS-495265

Tube-Dipstick

$

$

Not available

562

Cub Cadet BS-92613

Bolt (Governor Control Lever)

$

$

Not available

584

Cub Cadet BS-692342

Cover-Breather Passage

$

$

Not available

585

Cub Cadet BS-691879

Gasket-Breather Passage

$6.99

$

In Stock, only 1 left!

0

615

Cub Cadet BS-690340

Retainer-Governor Shaft

$4.49

$

In Stock, Qty 10

0

616

Cub Cadet BS-691308

Crank-Governor

$

$

Not available

635

Cub Cadet BS-66538

Boot-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 11

0

684

Cub Cadet BS-690345

Screw (Breather Cover)

$4.99

$

Usually ships in 2-12 days

0

718

Cub Cadet BS-690959

Pin-Locating

$6.99

$

In Stock, only 1 left!

0

741

Cub Cadet BS-691830

Gear-Timing

$17.99

$

Usually ships in 2-12 days

0

842

Cub Cadet BS-691031

Seal-O Ring (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

869

Cub Cadet BS-691155

Seat-Valve (Intake)

$8.99

$

In Stock, only 1 left!

0

870

Cub Cadet BS-690380

Seat-Valve (Exhaust)

$

$

Not available

871

Cub Cadet BS-262001

Bushing-Valve Guide

$13.99

$

Usually ships in 2-12 days

0
