CSV 220 (24A-030E100) - Cub Cadet Chipper/Shredder/Vacuum Engine (2002) Carburetor Parts Diagram

Chipper/Shredder/Vacuum Engine

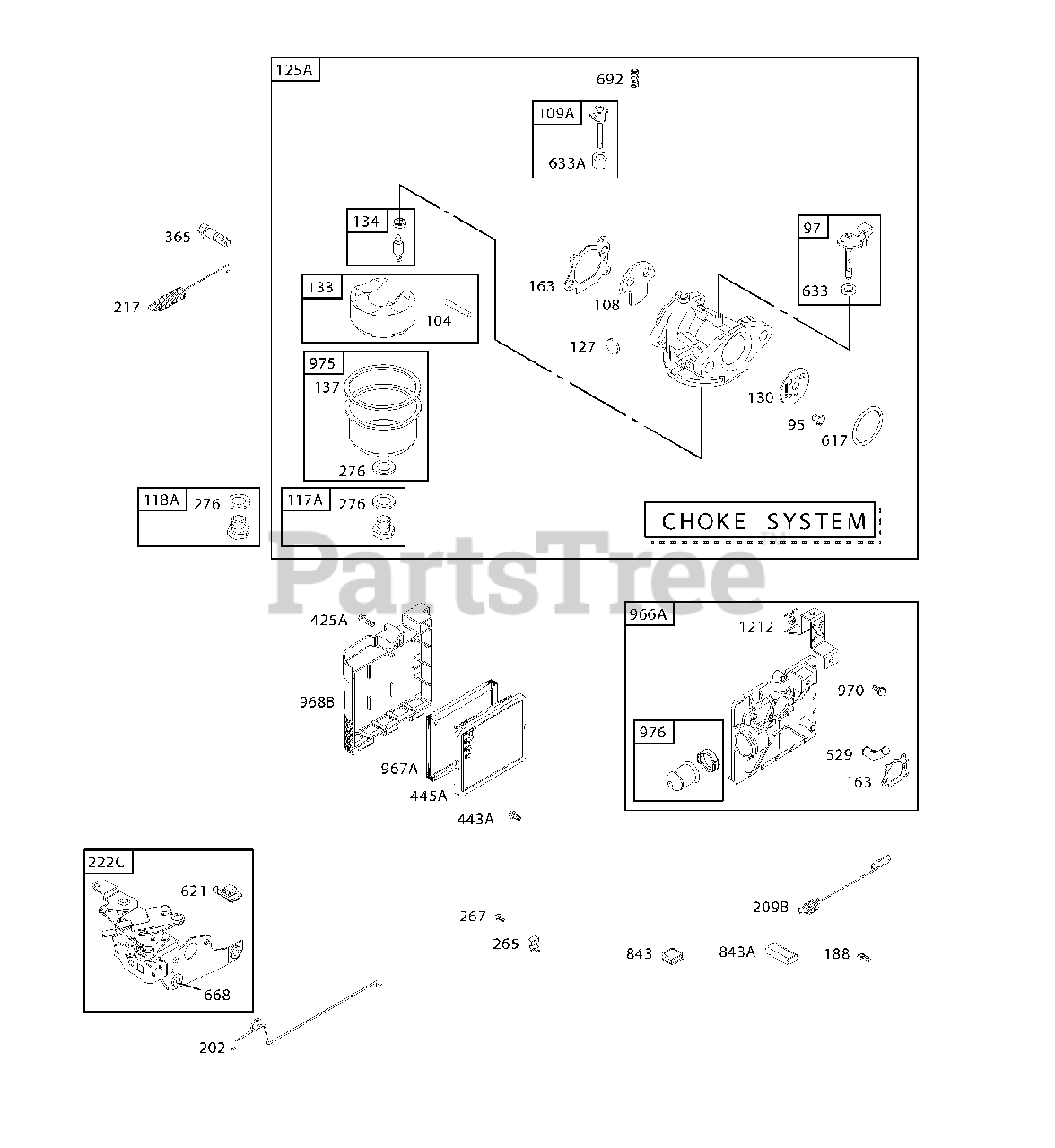

Carburetor Parts Diagram

  • Title

95

Cub Cadet BS-691636

Screw (Throttle Valve)

$3.99

$

In Stock, only 4 left!

0

97

Cub Cadet BS-493267

Shaft-Throttle

$16.99

$

In Stock, only 4 left!

0

104

Cub Cadet BS-691242

Pin-Float Hinge
(Superseded to BS-797622)

$3.99

$

In Stock, Qty 10

0

108

Cub Cadet BS-691182

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109A

Cub Cadet BS-498593

Shaft-Choke

$15.99

$

Usually ships in 2-12 days

0

117A

Cub Cadet BS-498978

Jet-Main

Note: (Standard)

$

$

Not available

118A

Cub Cadet BS-498975

Jet-Main (High Altitude)

$19.99

$

In Stock, Qty 5

0

125A

Cub Cadet BS-499059

Carburetor (Primer System)

$

$

Not available

127

Cub Cadet BS-694468

Plug-Welch

$4.49

$

In Stock, only 3 left!

0

130

Cub Cadet BS-691203

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

133

Cub Cadet BS-398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Cub Cadet BS-398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Cub Cadet BS-693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

163

Cub Cadet BS-272653

Gasket-Air Cleaner
(Superseded to BS-795629)

$3.49

$

In Stock, Qty 20+

0

188

Cub Cadet BS-690877

Screw (Control Bracket)

$3.99

$

In Stock, only 3 left!

0

202

Cub Cadet BS-691829

Link-Mechanical

$8.49

$

Usually ships in 2-12 days

0

209B

Cub Cadet BS-691291

Spring-Governor

$7.49

$

In Stock, only 2 left!

0

217

Cub Cadet BS-690354

Spring-Choke Return

$7.49

$

In Stock, only 1 left!

0

222C

Cub Cadet BS-692150

Bracket-Control

$57.99

$

Usually ships in 2-12 days

0

265

Cub Cadet BS-690798

Clamp-Casing

$5.49

$

In Stock, only 1 left!

0

267

Cub Cadet BS-691044

Screw (Casing Clamp)

$3.99

$

In Stock, only 4 left!

0

276

Cub Cadet BS-271716

Washer-Sealing (Main Jet)

$6.99

$

In Stock, Qty 15

0

365

Cub Cadet BS-692524

Screw (Carburetor)

$

$

Not available

425A

Cub Cadet BS-690670

Screw (Air Cleaner Cover)

$5.99

$

In Stock, only 4 left!

0

443A

Cub Cadet BS-692523

Screw (Primer Base)

$7.49

$

In Stock, only 2 left!

0

445A

Cub Cadet BS-491588

Filter-Air Cleaner Cartridge
(Superseded to BS-491588S)

$6.49

$

In Stock, Qty 20+

0

529

Cub Cadet BS-691923

Grommet

$9.49

$

In Stock, only 1 left!

0

617

Cub Cadet BS-270344

Seal-O Ring
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

621

Cub Cadet BS-692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

633

Cub Cadet BS-691321

Seal-Throttle Shaft

$4.99

$

Usually ships in 2-12 days

0

633A

Cub Cadet BS-693867

Seal-Choke Shaft

$4.99

$

In Stock, only 2 left!

0

668

Cub Cadet BS-493823

Spacer

$6.49

$

Usually ships in 2-12 days

0

692

Cub Cadet BS-690572

Spring-Detent
(Superseded to BS-590931)

$5.49

$

In Stock, Qty 11

0

843

Cub Cadet BS-694884

Sleeve-Lever (Speed Control)

$

$

Currently unavailable

843A

Cub Cadet BS-691895

Sleeve-Lever (Choke)

$4.99

$

In Stock, only 1 left!

0

966A

Cub Cadet BS-496116

Base-Air Cleaner Primer
(Superseded to BS-795259)

$32.99

$

In Stock, only 3 left!

0

967A

Cub Cadet BS-493537

Filter-Pre Cleaner
(Superseded to BS-493537S)

$6.49

$

In Stock, Qty 19

0

968B

Cub Cadet BS-692298

Cover-Air Cleaner

$27.99

$

In Stock, only 1 left!

0

970

Cub Cadet BS-691669

Screw (Air Cleaner Bracket)

$3.99

$

In Stock, only 1 left!

0

975

Cub Cadet BS-493640

Bowl-Float
(Superseded to BS-796611)

$

$

Not available

976

Cub Cadet BS-694395

Primer-Carburetor

$4.49

$

In Stock, Qty 20+

0

1212

Cub Cadet BS-691753

Bracket-Air Cleaner
(Superseded to BS-795259)

$32.99

$

In Stock, only 3 left!

0

Short Block

Note: N/S

$

$

Not available

Cub Cadet BS-12J802-2905

Complete Engine

Note: N/S

$

$

Not available
