CSV 220 (24A-030E100) - Cub Cadet Chipper/Shredder/Vacuum Engine (2001) Starter & Fuel Parts Diagram

Chipper/Shredder/Vacuum Engine

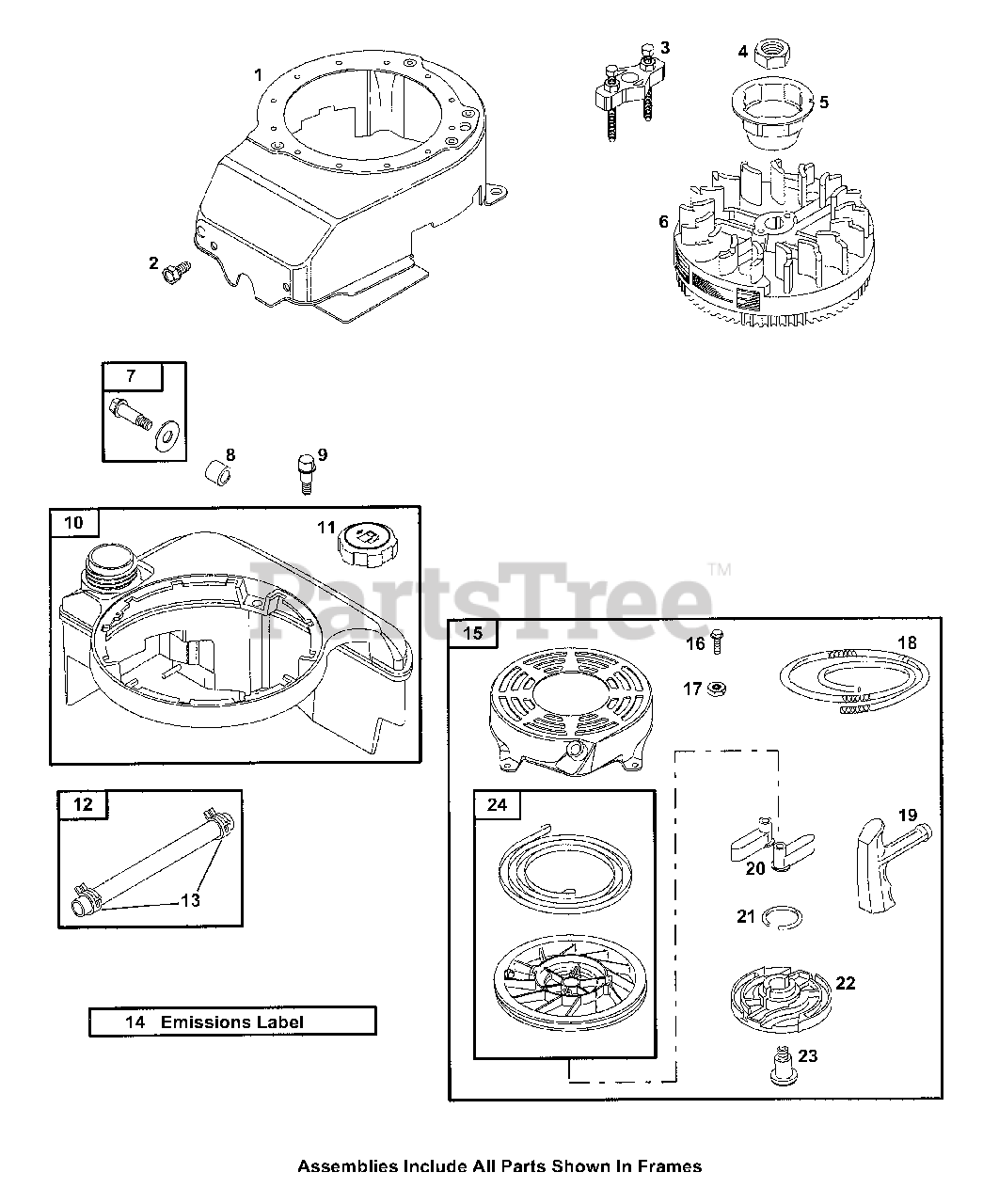

Starter & Fuel Parts Diagram

  • Title
1

Cub Cadet BS-493294

Blower Housing

$102.99

$

In Stock, only 3 left!

0

2

Cub Cadet BS-691108

Screw (Blower Housing)

$3.49

$

In Stock, Qty 20+

0

3

Cub Cadet BS-19069

Flywheel Puller

$23.99

$

In Stock, only 1 left!

0

4

Cub Cadet BS-690662

Nut (Flywheel)
(Superseded to 712-0318)

$3.49

$

In Stock, Qty 12

0

5

Cub Cadet BS-691219

Flywheel Cup
(Superseded to BS-695161)

$37.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-692315

Flywheel
(Superseded to BS-691987)

$112.99

$

In Stock, only 1 left!

0

7

Cub Cadet BS-692311

Screw/Washer Kit

$7.49

$

In Stock, only 1 left!

0

8

Cub Cadet BS-692294

Fuel Tank Spacer

$4.99

$

In Stock, Qty 5

0

9

Cub Cadet BS-690940

Screw (Fuel Tank)

$3.99

$

In Stock, Qty 5

0

10

Cub Cadet BS-495224

Fuel Tank
(Superseded to BS-699374)

$64.99

$

In Stock, Qty 20+

0

11

Cub Cadet BS-397974

Fuel Tank Cap
(Superseded to BS-796577)

$16.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-691050

Fuel Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

13

Cub Cadet BS-95162

Hose Clamp
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet BS-695111

Emissions Label

$3.49

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-497680

Rewind Starter

$49.99

$

In Stock, Qty 20+

0

16

Cub Cadet BS-690837

Screw (Rewind Starter)

$3.49

$

In Stock, Qty 20+

0

17

Cub Cadet BS-690800

Nut (Rewind Starter Housing)
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

18

Cub Cadet BS-692259

Starter Rope
(Superseded to BS-697316)

Note: (Cut to Required Length)

$5.99

$

In Stock, Qty 16

0

19

Cub Cadet BS-281434

Starter Rope Grip
(Superseded to BS-281434S)

$3.99

$

In Stock, only 4 left!

0

20

Cub Cadet BS-281505

Ratchet Pawl
(Superseded to BS-281505S)

$3.49

$

In Stock, Qty 9

0

21

Cub Cadet BS-691855

Friction Spring

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet BS-692299

Pawl Friction Plate

$4.99

$

In Stock, only 3 left!

0

23

Cub Cadet BS-691696

Screw (Pawl Friction Plate)

$11.99

$

In Stock, Qty 5

0

24

Cub Cadet BS-498144

Pulley/Spring Assembly

$19.99

$

In Stock, Qty 20+

0
