CSV 220 (24A-030E100) - Cub Cadet Chipper/Shredder/Vacuum Engine (2000) Air Filter, Muffler & Gaskets (Model CSV220) Parts Diagram

Chipper/Shredder/Vacuum Engine

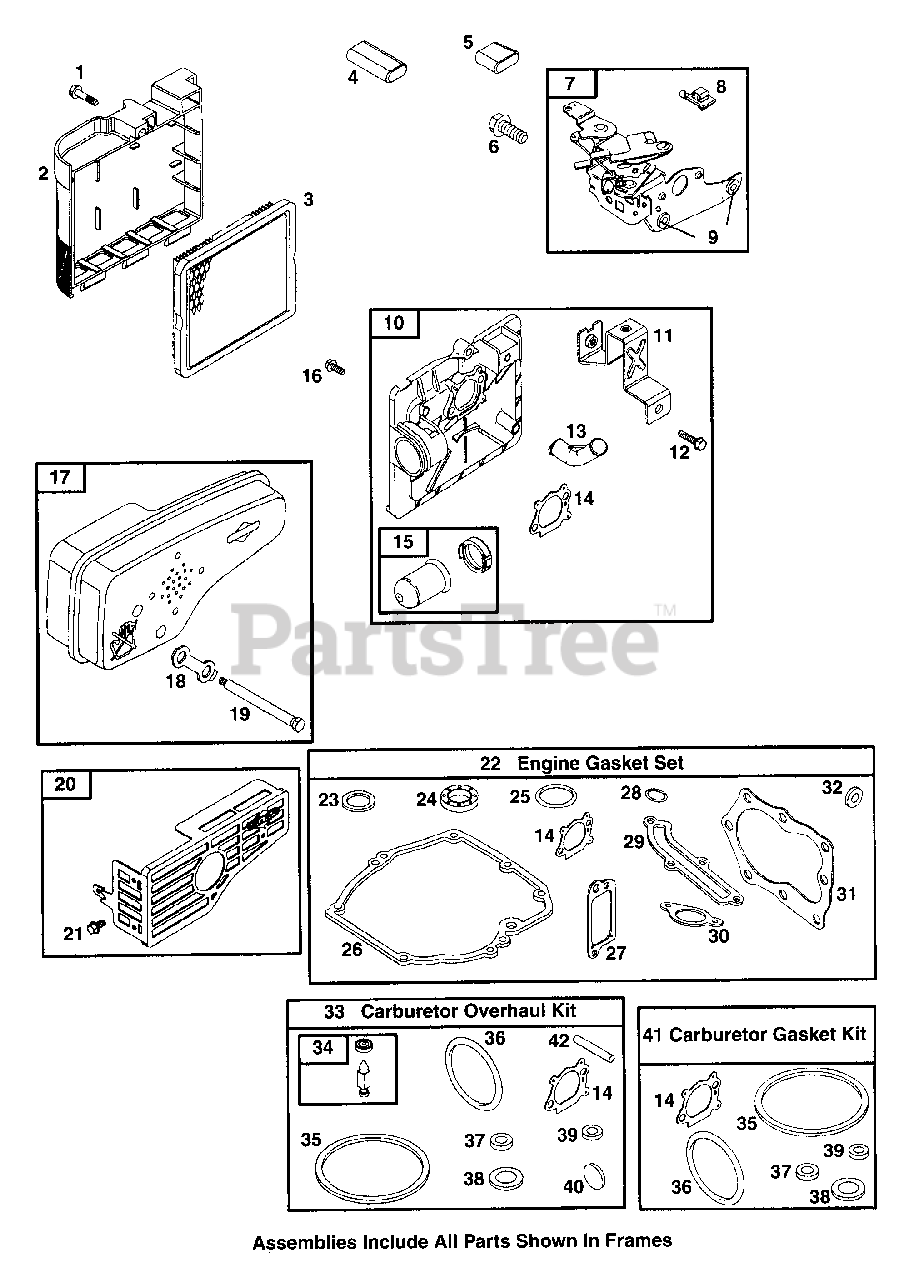

Air Filter, Muffler & Gaskets (Model CSV220) Parts Diagram

  • Title

1

Cub Cadet BS-690670

Screw (Air Cleaner Cover)

$5.99

$

In Stock, only 4 left!

0

2

Cub Cadet BS-692298

Air Cleaner Cover

$27.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-491588

Air Cleaner Cartridge Filter
(Superseded to BS-491588S)

$6.49

$

In Stock, Qty 20+

0

4

Cub Cadet BS-691895

Lever Sleeve

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet BS-691884

Lever Sleeve

$4.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-690877

Screw (Control Bracket)

$3.99

$

In Stock, only 3 left!

0

7

Cub Cadet BS-692150

Control Bracket

$57.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-692310

Stop Switch

$5.99

$

In Stock, Qty 20+

0

9

Cub Cadet BS-493823

Spacer

Note: (Includes 2)

$6.49

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-496116

Primer Base
(Superseded to BS-795259)

$32.99

$

In Stock, only 3 left!

0

11

Cub Cadet BS-691753

Air Cleaner Primer Bracket
(Superseded to BS-795259)

$32.99

$

In Stock, only 3 left!

0

12

Cub Cadet BS-691669

Screw (Support Bracket)

$3.99

$

In Stock, only 1 left!

0

13

Cub Cadet BS-691923

Grommet

$9.49

$

In Stock, only 1 left!

0

14

Cub Cadet BS-272653

Air Cleaner Gasket
(Superseded to BS-795629)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet BS-496115

Carburetor Primer
(Superseded to BS-694395)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet BS-692523

Screw (Primer Base)

$7.49

$

In Stock, only 2 left!

0

17

Cub Cadet BS-692038

Exhaust Muffler

$29.99

$

In Stock, only 1 left!

0

18

Cub Cadet BS-691740

Muffler Screw Lock

$5.49

$

In Stock, Qty 5

0

19

Cub Cadet BS-691340

Screw (Exhaust Muffler)

$4.99

$

In Stock, Qty 7

0

20

Cub Cadet BS-499034

Muffler Guard
(Superseded to BS-593875)

$55.99

$

In Stock, only 3 left!

0

21

Cub Cadet BS-690664

Screw (Muffler Guard)

$5.49

$

In Stock, only 2 left!

0

22

Cub Cadet BS-497316

Gasket Set
(Superseded to BS-590508)

$37.99

$

In Stock, only 1 left!

0

23

Cub Cadet BS-299819

Oil Seal
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 13

0

24

Cub Cadet BS-399781

Oil Seal
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-691031

Dipstick/Tube Seal

$5.49

$

In Stock, Qty 20+

0

26

Cub Cadet BS-692232

Crankcase Gasket

$5.99

$

In Stock, Qty 20+

0

27

Cub Cadet BS-272481

Breather Gasket
(Superseded to BS-699833)

$5.49

$

In Stock, only 1 left!

0

28

Cub Cadet BS-692296

Dipstick Tube Seal

$4.99

$

In Stock, Qty 5

0

29

Cub Cadet BS-691879

Breather Passage Gasket

$6.99

$

In Stock, only 1 left!

0

30

Cub Cadet BS-272199

Intake Gasket
(Superseded to BS-272199S)

$4.99

$

In Stock, only 1 left!

0

31

Cub Cadet BS-692249

Cylinder Head Gasket

$8.49

$

In Stock, Qty 20+

0

32

Cub Cadet BS-493823

Spacer

Note: (Includes 2)

$6.49

$

Usually ships in 2-12 days

0

33

Cub Cadet BS-498260

Carburetor Overhaul Kit

$16.99

$

In Stock, Qty 20+

0

34

Cub Cadet BS-398188

Needle/Seat Kit

$6.49

$

In Stock, Qty 20+

0

35

Cub Cadet BS-693981

Float Bowl Gasket

$3.99

$

In Stock, Qty 20+

0

36

Cub Cadet BS-270344

O-Ring Seal (Intake Manifold)
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

37

Cub Cadet BS-693867

Choke Shaft Seat

$4.99

$

In Stock, only 2 left!

0

38

Cub Cadet BS-271716

Sealing Washer

$6.99

$

In Stock, Qty 15

0

39

Cub Cadet BS-691321

Throttle Shaft Seal

$4.99

$

Usually ships in 2-12 days

0

40

Cub Cadet BS-694468

Welch Plug

$4.49

$

In Stock, only 3 left!

0

41

Cub Cadet BS-498261

Carburetor Gasket Set
(Superseded to BS-498260)

$16.99

$

In Stock, Qty 20+

0

42

Cub Cadet BS-691242

Float Hinge Pin
(Superseded to BS-797622)

$3.99

$

In Stock, Qty 10

0
