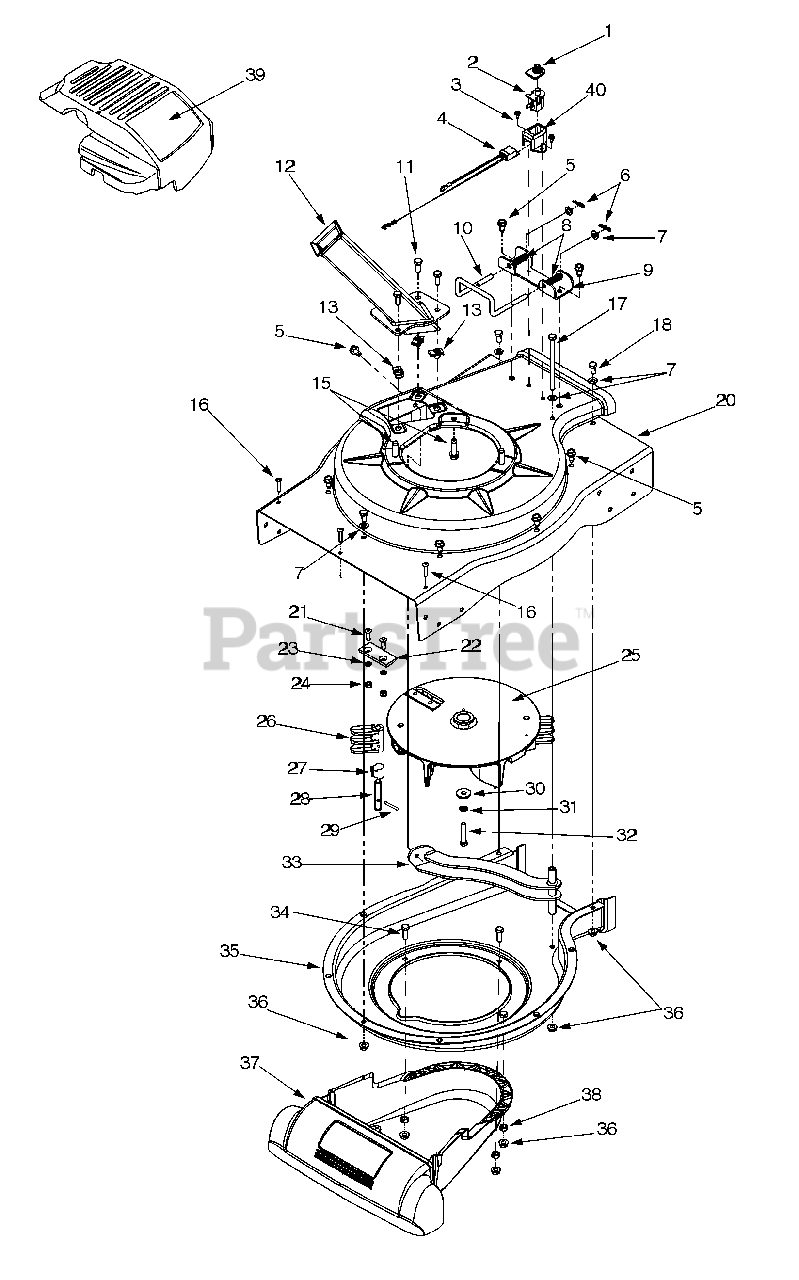

CSV 220 (24A-030E100) - Cub Cadet Chipper/Shredder/Vacuum (2000) Nozzle/Frame/Impeller Parts Diagram

Chipper/Shredder/Vacuum

Nozzle/Frame/Impeller Parts Diagram

  • Title

1

Cub Cadet 725-1700

Switch Cover
(Superseded to 925-1700)

$11.99

$

In Stock, only 1 left!

0

2

Cub Cadet 725-3166

Safety Switch
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0224

Hex Washer Screw #10-16 x .50
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

4

Cub Cadet 629-0920

Wire Harness
(Superseded to 629-0920A)

$41.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0604

Hex Washer Screw 5/16-18 x .625
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0264

Flat Washer .330 ID x .630 OD

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 732-0962

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 781-0778

Mounting Bracket
(Superseded to 781-0778A-0637)

Variations

Cub Cadet 781-0778-0637

USE 781-0778A-0637 BRACKET-MO - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 747-1153

Lock Rod

$16.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 681-0122

Chipper Chute Ass'y

Variations

Cub Cadet 681-0122-0498

CHUTE CHIPPER ASSY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 681-0122-0638

CHUTE CHIPPER ASM. - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 681-0122-0662

CHUTE CHIPPER ASM. - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 681-0122-0665

CHUTE CHIPPER ASM. - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 681-0122-0689

CHUTE CHIPPER ASM. - POLO GREEN (0689)

$

$

Not available

Cub Cadet 681-0122-0716

CHUTE CHIPPER ASSEMBLY (CUB YELLOW) - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 681-0122-0721

USE 681-0122-4044 CHUTE ASM-C - SEARS RED (0721)

$

$

Not available

Cub Cadet 681-0122-4021

CHUTE CHIPPER ASSEMBLY (CUB YELLOW) - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 681-0122-4044

CHUTE ASM-CHIPPER - CRAFTSMAN RED (4044)

$

$

Not available

$80.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 726-0454

U-Clip Lock Nut 5/16-18

$

$

Not available

15

Cub Cadet 710-0502A

Hex Washer Screw 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

16

Cub Cadet 710-0969

Screw #12-16 x 1.0

$4.49

$

In Stock, only 2 left!

0

17

Cub Cadet 710-3195

Hex Cap Screw 5/16-18 x 4.5

$7.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-3025

Hex Cap Screw 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

20

Cub Cadet 781-0720

Upper Housing

Variations

Cub Cadet 781-0720-0498

HOUSING FLAIL UPR - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 781-0720-0638

HOUSING FLAIL UPR - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 781-0720-0662

HOUSING FLAIL UPR - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 781-0720-0665

HOUSING FLAIL UPR - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 781-0720-0689

HOUSING FLAIL UPR (POLO GREEN) - POLO GREEN (0689)

$

$

Not available

Cub Cadet 781-0720-0716

HOUSING FLAIL UPR - CUB YELLOW-99 (0716)

$

$

Not available

$

$

21

Cub Cadet 710-1054

Hex Screw 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 781-0490

Chipper Blade
(Superseded to 981-0490)

$30.99

$

In Stock, Qty 10

0

23

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-0411

Hex Lock Nut 5/16-24

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 681-0152

Impeller Ass'y
(Superseded to 981-0152)

$534.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 719-0329

Flail Blade

$31.99

$

In Stock, Qty 5

0

27

Cub Cadet 781-0735

Pin Clip

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 711-1401

Clevis Pin

$9.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 715-0166

Spiral Pin

$6.99

$

In Stock, Qty 15

0

30

Cub Cadet 736-0247

Flat Washer 3/8 ID x 1.25 OD

$9.49

$

In Stock, Qty 16

0

31

Cub Cadet 736-0217

Lock Washer 3/8

$4.49

$

In Stock, Qty 9

0

32

Cub Cadet 710-0818

Hex Cap Screw 3/8-24 x 2.0

$6.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 681-0154

Screen Ass'y
(Superseded to 681-0154-0637)

Variations

Cub Cadet 681-0154-0637

SCREEN ASM. - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 710-3038

Hex Cap Screw 5/16-18 x .875

$4.99

$

In Stock, only 3 left!

0

35

Cub Cadet 781-0721

Lower Housing
(Superseded to 781-0721B)

Variations

Cub Cadet 781-0721-0498

USE 781-0721B-0498 HOUSING-FL - OLD CUB YELLOW (0498)

$157.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0721-0638

USE 781-0721B-0638 HOUSING-FL - MTD/TROY-BILT RED (0638)

$157.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0721-0662

USE 781-0721B-0662 HOUSING-FL - OYSTER GRAY (0662)

$157.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0721-0665

USE 781-0721B-0665 HOUSING-FL - YARDMAN GREEN (0665)

$157.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0721-0689

USE 781-0721B-0689 HOUSING-FL - POLO GREEN (0689)

$157.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-0721-0716

USE 781-0721B-0716 HOUSING-FL - CUB YELLOW-99 (0716)

$136.99

$

Usually ships in 3-6 days

0

$136.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 712-3004A

Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 731-1905

Nozzle Cover
(Superseded to 731-1905A)

$123.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 712-0158

Lock Nut 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

39

Cub Cadet 751B281440

Shroud

$

$

Not available

40

Cub Cadet 731-1613

Safety Switch Cover
(Superseded to 931-1613)

$10.99

$

In Stock, only 1 left!

0
