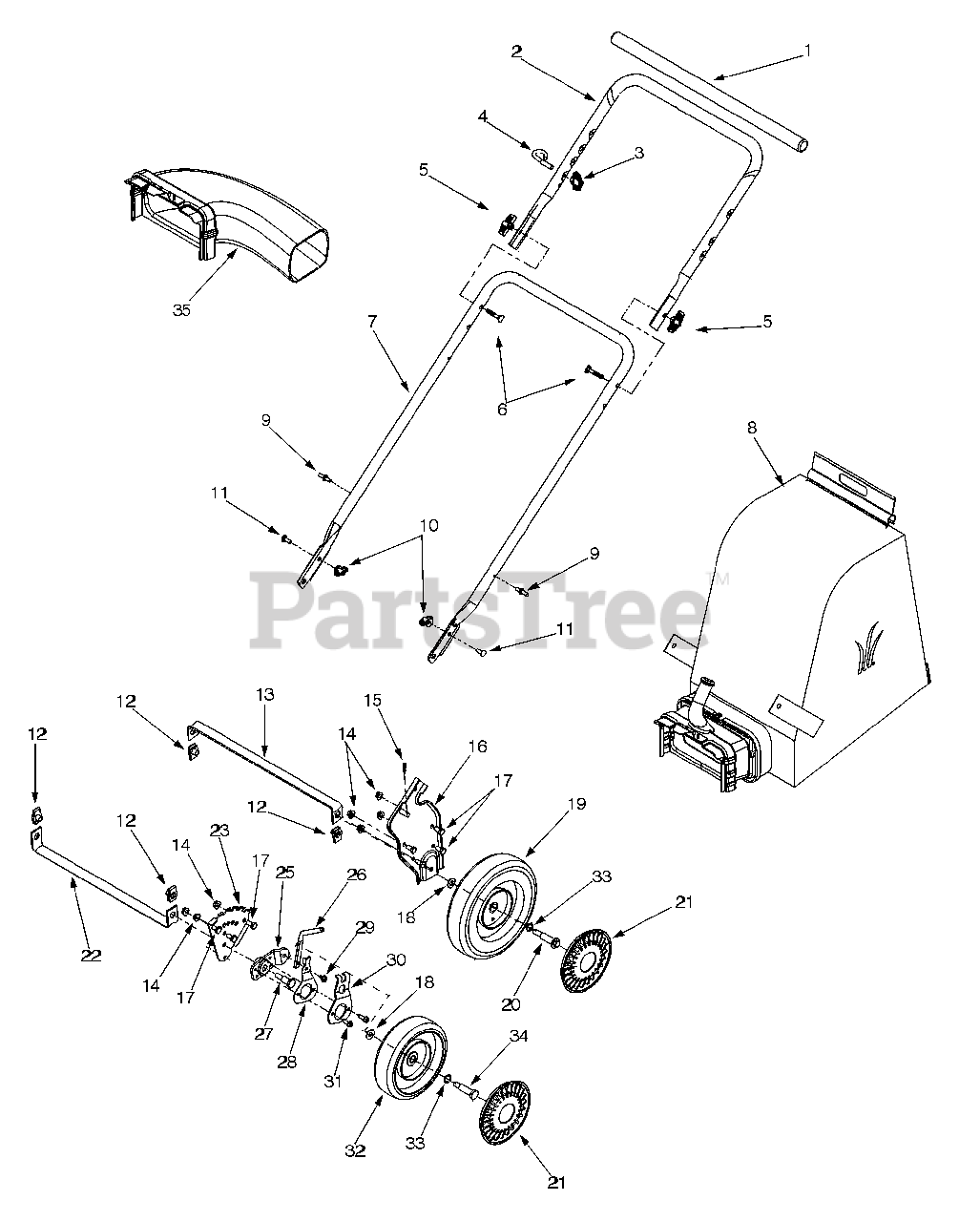

CSV 220 (24A-030E100) - Cub Cadet Chipper/Shredder/Vacuum (2000) Handle/Wheels/Bag Parts Diagram

Chipper/Shredder/Vacuum

Handle/Wheels/Bag Parts Diagram

  • Title

1

Cub Cadet 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 749-0438C

Upper Handle
(Superseded to 749-0438D-0637)

Variations

Cub Cadet 749-0438C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 720-0279

Knob

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-1205

Eye Bolt

$3.99

$

In Stock, only 1 left!

0

5

Cub Cadet 720-0276

Handle Knob 5/16-18
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

6

Cub Cadet 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

7

Cub Cadet 749-0907A

Lower Handle
(Superseded to 749-0907B)

Variations

Cub Cadet 749-0907A-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

8

Cub Cadet 664-0090

Bag Ass'y
(Superseded to 664-04040)

$229.99

$

In Stock, Qty 9

0

9

Cub Cadet 711-1293

Studs

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

12

Cub Cadet 726-0453

Lock U-Clip Nut 3/8-16

$

$

Not available

13

Cub Cadet 781-0777

Rear Wheel Support Brace

Variations

Cub Cadet 781-0777-0637

BRACE REAR - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 681-0155

Handle Bracket Ass'y LH

Variations

Cub Cadet 681-0155-0638

USE 981-0155A-0638 BRACKET AS - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0155-0721

USE 981-0155A-4044 BRACKET AS - SEARS RED (0721)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0155-0498

HANDLE BRACKET ASSEMBLY (LH) (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 681-0155-0662

HANDLE BRACKET ASSEMBLY (LH) (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 681-0155-0665

HANDLE BRACKET ASSEMBLY (LH) (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 681-0155-0689

HANDLE BRACKET ASSEMBLY (LH) (POLO GREEN) - POLO GREEN (0689)

$

$

Not available

Cub Cadet 681-0155-0716

HANDLE BRACKET ASSEMBLY (LH) (CUB YELLOW) - CUB YELLOW-99 (0716)

$

$

Not available

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0156

Handle Bracket Ass'y RH

Note: (Not Shown)

Variations

Cub Cadet 681-0156-0638

USE 981-0156A-0638 BRACKET AS - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0156-0498

HANDLE BRACKET ASSEMBLY (RH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 681-0156-0662

HANDLE BRACKET ASSEMBLY (RH) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 681-0156-0665

HANDLE BRACKET ASSEMBLY (RH) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 681-0156-0689

HANDLE BRACKET ASSEMBLY (RH) - POLO GREEN (0689)

$

$

Not available

Cub Cadet 681-0156-0716

HANDLE BRACKET ASSEMBLY (RH) - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 681-0156-0721

HANDLE BRACKET ASSEMBLY (RH) - SEARS RED (0721)

$

$

Not available

Cub Cadet 681-0156-4044

HANDLE BRACKET ASSEMBLY (RH) - CRAFTSMAN RED (4044)

$

$

Not available

$36.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-3025

Hex Cap Screw 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

18

Cub Cadet 736-0105

Bell Washer .401 ID x .870 OD

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 734-1992

Wheel 9 x 2

$54.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 738-1015

Shoulder Screw 3/8-16

$10.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 731-0982A

Hubcap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

22

Cub Cadet 781-0725

Front Wheel Support Brace
(Superseded to 781-0725A-0637)

Variations

Cub Cadet 781-0725-0637

USE 781-0725A-0637 BRACE-FRON - POWDER BLACK (0637)

$

$

Not available

$

$

23

Cub Cadet 781-0765

Hgt Bracket Adjuster LH
(Superseded to 781-0765-0637)

Variations

Cub Cadet 781-0765-0637

BRACKET HGT. ADJ. - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 781-0766

Hgt Bracket Adjuster RH

Note: (Not Shown)

$

$

Not available

25

Cub Cadet 748-0417

Pivot Arm

$

$

Not available

26

Cub Cadet 747-1100

Handle Height Adjuster

$

$

Not available

27

Cub Cadet 738-1017

Shoulder Screw 3/8-16

$

$

Not available

28

Cub Cadet 732-0864

Height Adjuster Plate Spring

$

$

Not available

29

Cub Cadet 710-0653

Hex Washer Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 13

0

30

Cub Cadet 782-0578

Spring Lever Support Bracket

Variations

Cub Cadet 782-0578-0637

BRACKET SPRING LVR(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

31

Cub Cadet 710-0642

Hex Washer Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 734-1978

Wheel 8 x 2

$48.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 736-0232

Wave Washer .531 ID x .781 OD

$4.99

$

In Stock, Qty 12

0

34

Cub Cadet 738-0213

Shoulder Screw

$7.99

$

In Stock, only 2 left!

0

35

Cub Cadet 631-0090

Blower Chute Assembly
(Superseded to OEM-290-012)

$99.99

$

Usually ships in 3-6 days

0
