CSV 206 (24A-204B766) - Troy-Bilt Chipper Shredder Vac (2009) Handle Assembly Parts Diagram

Chipper Shredder Vac

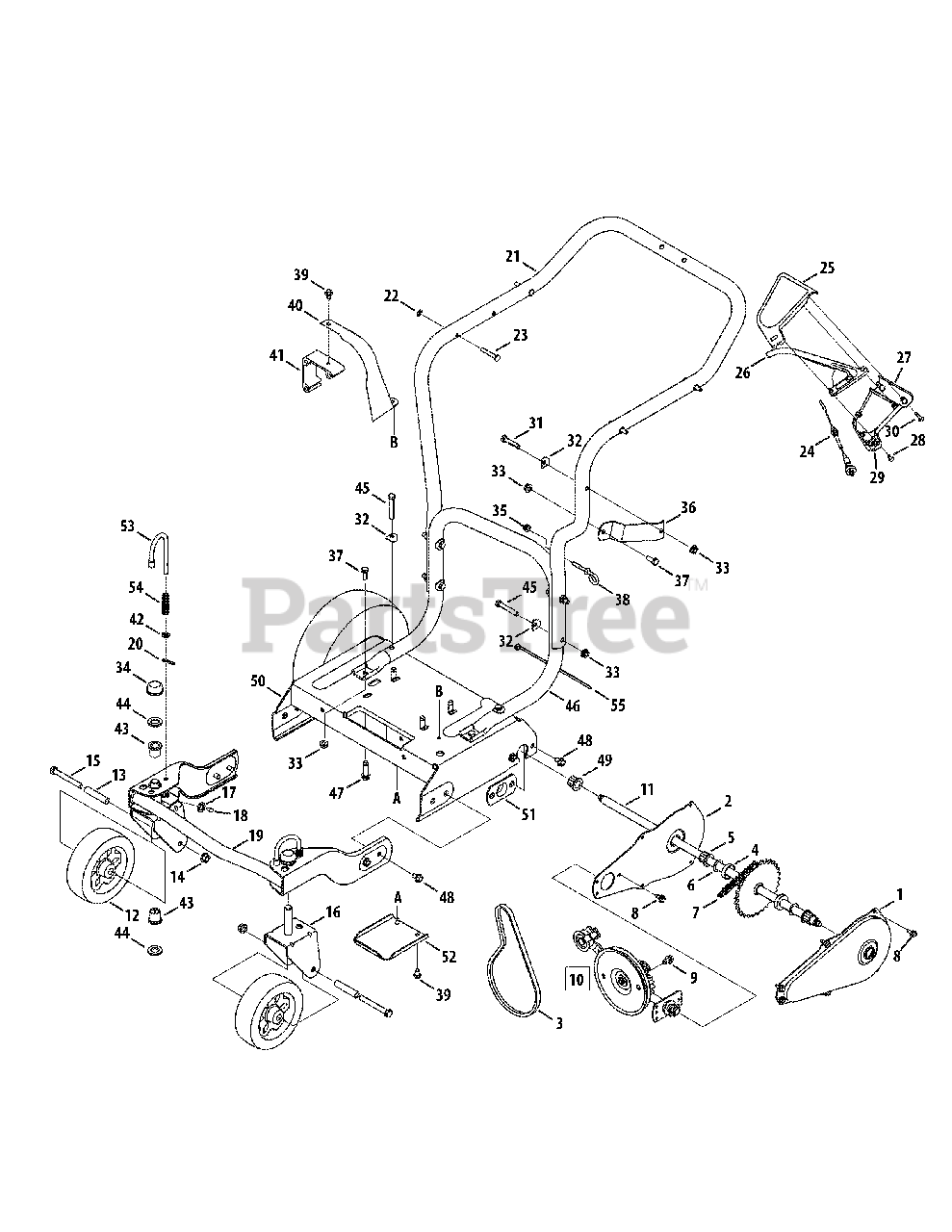

Handle Assembly Parts Diagram

  • Title
1

Troy-Bilt 781-0677-0637

Chain Case - LH

$47.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 781-0676-0637

Chain Case - RH

$77.99

$

Usually ships in 3-6 days

0

$23.99

$

In Stock, only 3 left!

0

$3.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 941-0413

Hex Flange Bearing

$10.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 936-0336

Flat Washer

$4.49

$

In Stock, Qty 7

0

$30.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 710-0896

TT Screw, 1/4-14 x 0.625"

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0603

Hex Washer Screw, 5/16

$4.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 618-0256

Chipper Shredder Trans. Ass’y.

$464.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 611-0063

Axle Assembly

$

$

Not available

12

Troy-Bilt 734-1804A

Wheel, 6.0 x 2.0

$41.99

$

Usually ships in 3-6 days

0

13

$13.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-0521

Hex Cap Screw, 3/8-16 x 3.0

$5.49

$

In Stock, Qty 11

0

16

Troy-Bilt 681-0088-0638

Bracket Assembly

$56.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 736-0931

Flat Washer, .203 ID x.403 OD

$4.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 937-3000

Grease Fitting, 3/16

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 681-0087-0638

Bracket Assembly

$216.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

21

$180.99

$

Usually ships in 3-6 days

0

22

$4.49

$

In Stock, Qty 10

0

23

Troy-Bilt 911-0737

Stud Pin, .250 x 1.75

$4.99

$

In Stock, Qty 6

0

24

Troy-Bilt 746-0714

Clutch Cable - 56"
(Superseded to 946-0714)

$33.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 753-0832

Upper Clutch Cover

$61.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 731-0620A

Drive Lever

$15.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 753-0832

Lower Clutch Cover

$61.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 710-0841

Screw, #10-12 x.750

$4.49

$

Usually ships in 3-6 days

0

29

Troy-Bilt 753-0833

Mounting Cable Cap

$50.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 710-1331

Screw, #10-16 x 1.25

$4.49

$

In Stock, only 2 left!

0

31

Troy-Bilt 710-0805

Hex Cap Screw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 936-0451

Shoulder Washer, .320 ID x.93 OD
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

33

Troy-Bilt 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

34

$10.99

$

In Stock, Qty 5

0

35

Troy-Bilt 712-0380

Hex Nut, 1/4-28

$3.99

$

In Stock, only 2 left!

0

36

Troy-Bilt 781-0647-0638

Discharge Chute Bracket

$12.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 710-3008

Hex Cap Screw, 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

38

$15.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 710-0896

Hex Washer Screw, 1/4-14 x.625

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 731-1646

Belt Cover

$14.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 719-0359

Engine Mounting Adapter

$31.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 936-0264

Flat Washer, .330 ID x.630 OD

$6.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 741-0487C

Flange Bearing, .632 ID

$7.49

$

Usually ships in 3-6 days

0

44

Troy-Bilt 736-0366

Flat Washer, 5/8 ID x 1.0 OD

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 710-3103

Hex Cap Screw, 5/16-18 x 1.75

$4.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 749-1094-0638

Lower Push Handle
(Superseded to 749-1094)

$78.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 710-0502A

Screw, 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

48

Troy-Bilt 710-0604A

Hex Washer Screw, 5/16-18 x.625

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 941-0413

Hex Flange Bearing, .631 x.720

$10.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 681-0097A-0638

Frame Assembly

$158.99

$

Usually ships in 3-6 days

0

51

$10.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 781-0697-0637

Transmission Cover

$13.99

$

Usually ships in 3-6 days

0

53

$20.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 932-0306A

Compression Spring

$8.49

$

In Stock, only 2 left!

0

55

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

Troy-Bilt 723-0400

Safety Glasses

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0
