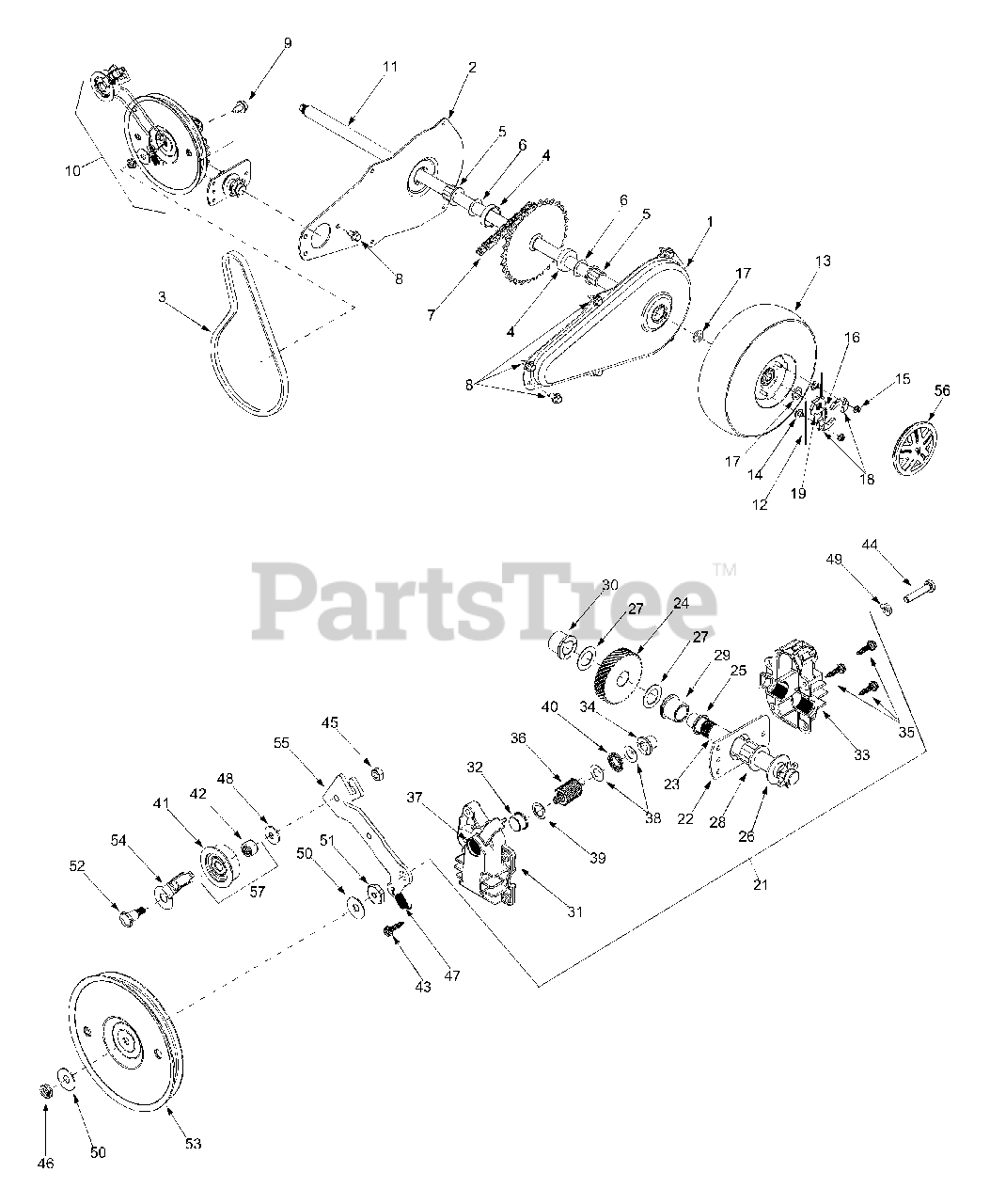

CSV 206 (24A-204B766) - Troy-Bilt Chipper Shredder Vac (2005) Drive Parts Diagram

Chipper Shredder Vac

Drive Parts Diagram

  • Title

1

Troy-Bilt 781-0677

Chain Case LH

Variations

Troy-Bilt 781-0677-0637

CASE CHAIN LH - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0677-0665

CASE CHAIN LH - YARDMAN GREEN (0665)

$47.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 781-0676

Chain Case RH

Variations

Troy-Bilt 781-0676-0637

CASE CHAIN RH - POWDER BLACK (0637)

$77.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0676-0665

CASE CHAIN RH - YARDMAN GREEN (0665)

$77.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 754-0457

V-Belt
(Superseded to 954-0457)

$23.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 748-0313

Spacer

$3.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 741-0413

Hex Flange Bearing

$9.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 736-0336

Flat Washer
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

7

Troy-Bilt 713-0422

Chain
(Superseded to 913-0422)

$30.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 710-0896

TT Screw 1/4-14 x 0.625"

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0603

Hex Washer Screw 5/16

$4.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 618-0256

Transmission Assembly

$464.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 611-0063

Axle Assembly

$

$

Not available

12

Troy-Bilt 10622B

Plastic Spring Ratchet

$5.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 634-0244

Wheel Complete 10 x 4 x 4

$138.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 712-0456

Hex Nut 1/4-20

$10.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 712-3027

Hex Flanged Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

16

Troy-Bilt 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 736-0366

Flat Washer 5/8 ID x 1.0 OD

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 748-0188B

Pawl LH.345 ID
(Superseded to 948-0188B)

$

$

Not available

Troy-Bilt 748-0381

Pawl RH.345 ID

$11.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 748-0405

Wheel Ratchet 1.62 OD x.5 serr

$11.99

$

In Stock, Qty 9

0

21

Troy-Bilt 618-0255

Transmission Assembly: Complete
(Superseded to 918-0255)

$782.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

Troy-Bilt 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 711-1118

Output Shaft 6T Sprocket
(Superseded to 911-1118)

$32.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 717-1432

Helical 34T Gear

$58.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 721-0213

Oil Seal

$10.99

$

In Stock, Qty 15

0

26

Troy-Bilt 736-0187

Flat Washer.64 ID x 1.24 OD

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0336

Flat Washer 5/8 x 1.0
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

28

Troy-Bilt 741-0413

Hex Flange Bearing.631 ID

$9.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 741-0414

Flange Bearing.629 ID

$10.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 741-0415

Flange Bearing.566 ID
(Superseded to 941-0415)

$10.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 719-0325

Lower Housing

$92.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 748-0373

Flange Bearing.503 ID

$4.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 719-0324A

Upper Housing

$92.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 748-0208A

Flange Bearing.378 ID

$4.49

$

Usually ships in 3-6 days

0

35

Troy-Bilt 710-0589

Hex Washer Screw #10-16 x.75

$6.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 717-1433

Pinion Shaft 10T

$40.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 721-0329

Oil Seal
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 736-0314

Thrust Washer.382 ID x.684 OD

$6.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 736-0520

Flat Washer.504 ID x.70 OD
(Superseded to 936-0520)

$5.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 741-0479

Thrust Bearing.375 ID x.812 OD

$11.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 756-0558

Idler Pulley
(Superseded to 956-0558)

$11.99

$

In Stock, Qty 5

0

42

Troy-Bilt 741-0556

Needle Bearing.375 ID x.375 OD

$17.99

$

In Stock, only 4 left!

0

43

Troy-Bilt 710-0589

Hex Screw #10-16 x.75

$6.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 710-1062

Hex Cap Screw 1/4-20 x 1.25

$6.49

$

Usually ships in 3-6 days

0

45

Troy-Bilt 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 712-3045

Hex Jam Nut 5/16-24 LH Thd
(Superseded to 912-3045)

$4.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 732-0357A

Extension Spring 1.12 Lg

$4.49

$

In Stock, Qty 13

0

48

Troy-Bilt 736-0270

Bell Washer.265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

50

Troy-Bilt 736-0425

Bell Washer.325 ID x.930 OD

$4.99

$

In Stock, Qty 13

0

51

Troy-Bilt 738-0440

Shoulder Spacer.375 ID x.165 OD

$5.99

$

In Stock, only 4 left!

0

52

Troy-Bilt 738-0826

Shoulder Bolt 1/4-28 x.375

$12.99

$

In Stock, only 1 left!

0

53

Troy-Bilt 756-0656

Flat Pulley 5.06 Dia

$36.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 782-7569

Belt Keeper

$7.49

$

Usually ships in 3-6 days

0

55

Troy-Bilt 682-0054

Idler Bracket

$25.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 734-1984

Hub Cap

$28.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 656-0008

Idler Pulley Assembly W/ Bearing
(Superseded to 956-0008)

$20.99

$

In Stock, only 2 left!

0
