CSV 206 (24A-202J766) - Troy-Bilt Chipper Shredder Vac (2015) Impeller & Bag Parts Diagram

Chipper Shredder Vac

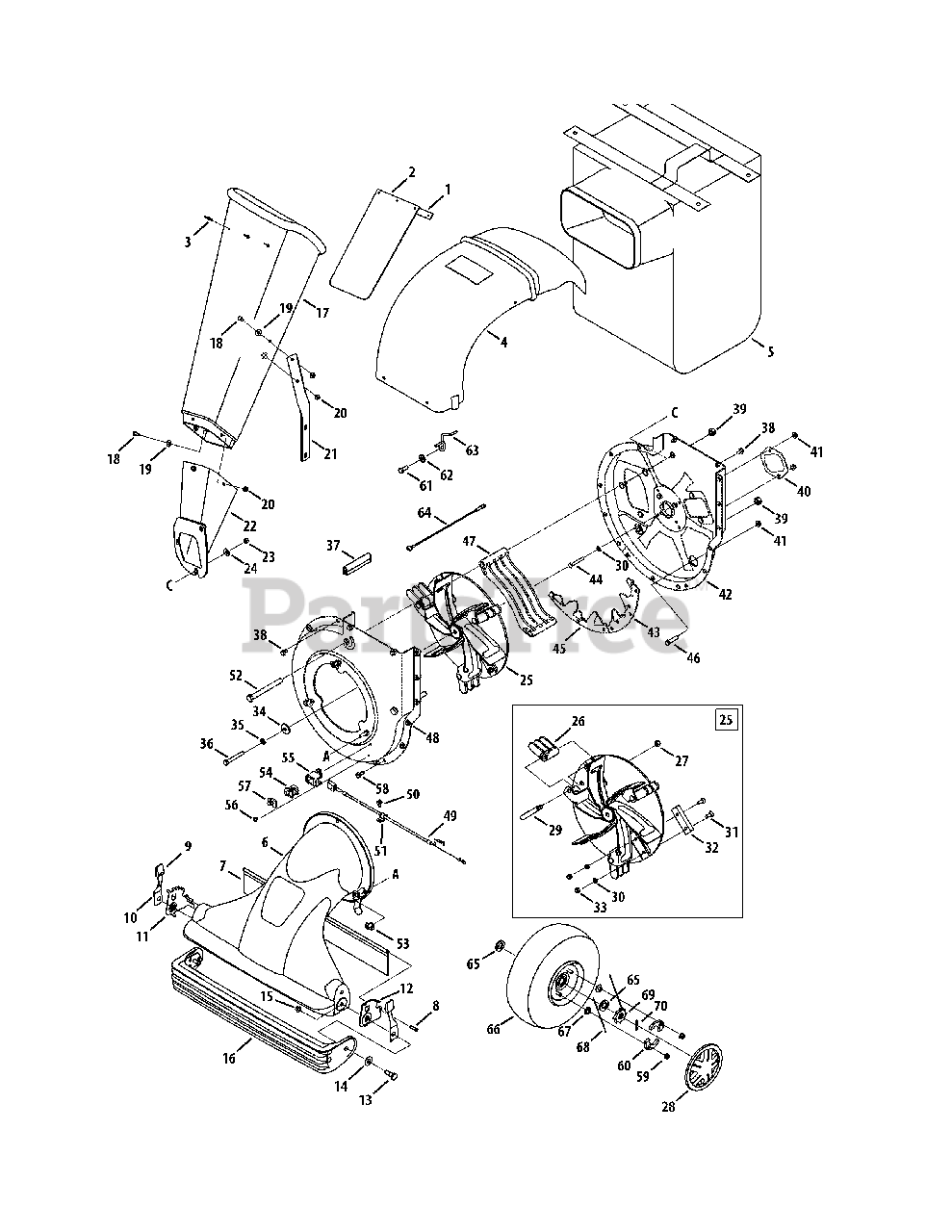

Impeller & Bag Parts Diagram

  • Title

1

Troy-Bilt 781-0633

Chute Flap Strip

$10.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 735-0249A

Chute Flap

$24.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 728-0175

Pop Rivet

$4.99

$

In Stock, only 4 left!

0

4

Troy-Bilt 731-1838A

Discharge Chute

$193.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 964-04001

Bag

$219.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 631-0086

Nozzle Assembly

$

$

Not available

7

Troy-Bilt 731-1831

Nozzle Flap

$20.99

$

In Stock, only 4 left!

0

8

Troy-Bilt 710-0969

Screw

$4.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 732-0754

Spring Lever

$9.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 781-0702-0637

Index Bracket RH

$24.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 781-0703-0637

Index Bracket LH

$24.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 938-0913

Shoulder Screw
(Superseded to 738-0913)

$

$

Not available

14

Troy-Bilt 736-3084

Flat Washer, .510 x 1.12 x.060

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 912-0431

Hex Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 631-0049

Door Assembly

$

$

Not available

17

Troy-Bilt 731-1574A

Chipper Chute

$202.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-0173

Flat Washer, .28 ID x.74 OD

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 912-3027

Hex Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 781-0780-0637

Support Bracket

$11.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 681-0068A-0638

Chipper Chute Assembly
(Superseded to 681-0068A)

$177.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 736-0242

Bell Washer, .340ID x.872OD

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 981-04091

Impeller Assembly: Complete

$533.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 719-04308

Flail Blade

$18.99

$

In Stock, Qty 11

0

27

Troy-Bilt 712-0266A

Jam Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 734-1984

Hub Cap

$28.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 738-04286A

Shoulder Pin, .5 x 2.625

$4.99

$

In Stock, Qty 9

0

30

Troy-Bilt 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 710-1054

Cap Screw 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 942-0544B

Chipper Blade

$89.99

$

In Stock, Qty 6

0

33

Troy-Bilt 912-0411

Hex Lock Nut 5/16-24
(Superseded to 712-0411)

$

$

Not available

34

Troy-Bilt 736-0247

Flat Washer, .406 x 1/1/4

$9.49

$

In Stock, Qty 12

0

35

Troy-Bilt 936-0217

Lock Washer, 3/8
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 6

0

36

Troy-Bilt 710-1273

Hex Cap Screw, 3/8-24 x 2.75

$7.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 723-0438

Rubber Seal

$10.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 710-0604A

Hex Washer Screw, 5/16-18

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 912-0384

Hex Lock Nut, 1/2-13

$6.99

$

In Stock, only 3 left!

0

40

Troy-Bilt 781-0627-0638

Chipper Blade Cover

$20.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 712-3004A

Hex Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 681-0098-0638

Housing Assembly: Inner Flail

$256.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 781-0599-0637

Upper Shredder Blade

$33.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 710-0772

Hex Cap Screw, 5/16-18 x 2

$4.49

$

Usually ships in 3-6 days

0

45

Troy-Bilt 781-0653-0637

Flail Housing Blade

$69.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 710-3008

Hex Cap Screw, 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

47

Troy-Bilt 719-0326

Discharge Screen

$101.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 681-0060-0638

Housing Assembly: Outer Flail

$288.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 929-0241A

Wire Harness

$61.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 710-0896

TT Screw, 1/4-14 x 0.625"

$4.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

52

Troy-Bilt 710-0382

Hex Cap Screw, 1/2-13 x 5.0

$12.99

$

In Stock, only 2 left!

0

53

Troy-Bilt 712-0421

Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

54

Troy-Bilt 925-3166

Switch

$16.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 931-1613

Safety Switch Mounting Cover

$10.99

$

In Stock, only 1 left!

0

56

Troy-Bilt 710-1268

Hex Washer Screw

$4.49

$

In Stock, Qty 20+

0

57

Troy-Bilt 925-1700

Switch Cover

$11.99

$

In Stock, only 1 left!

0

58

Troy-Bilt 710-1260A

LD Screw, 5/16-18 x 0.75"

$3.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 912-3027

Hex Flanged Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

60

Troy-Bilt 948-0188B

Pawl, .345 ID -LH

$

$

Not available

60

Troy-Bilt 748-0381

Pawl, .345 ID - RH

$11.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 710-0157

Hex Cap Screw, 5/16-24 x.75

$4.49

$

In Stock, Qty 15

0

62

Troy-Bilt 936-3008

Flat Washer, .344 x.75 x.12

$6.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 747-0929A

Belt Keeper

$12.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 629-0923

Adapter Harness Assembly

$20.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 736-0366

Flat Washer, 5/8 ID x 1.0 OD

$4.49

$

In Stock, Qty 20+

0

66

Troy-Bilt 634-0244

Wheel Complete 10 x 4 x 4

$138.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 912-0456

Hex Nut, 1/4-20
(Superseded to 712-0456)

$

$

Not available

68

Troy-Bilt 10622BP

Plastic Spring Ratchet
(Superseded to 10622B)

$5.49

$

In Stock, Qty 20+

0

69

Troy-Bilt 748-0405

Wheel Ratchet 1.62 OD x.5 serr

$11.99

$

In Stock, Qty 7

0

70

Troy-Bilt 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0
