CSV 206 (24A-202J766) - Troy-Bilt Chipper Shredder Vac (2013) Transmission Parts Diagram

Chipper Shredder Vac

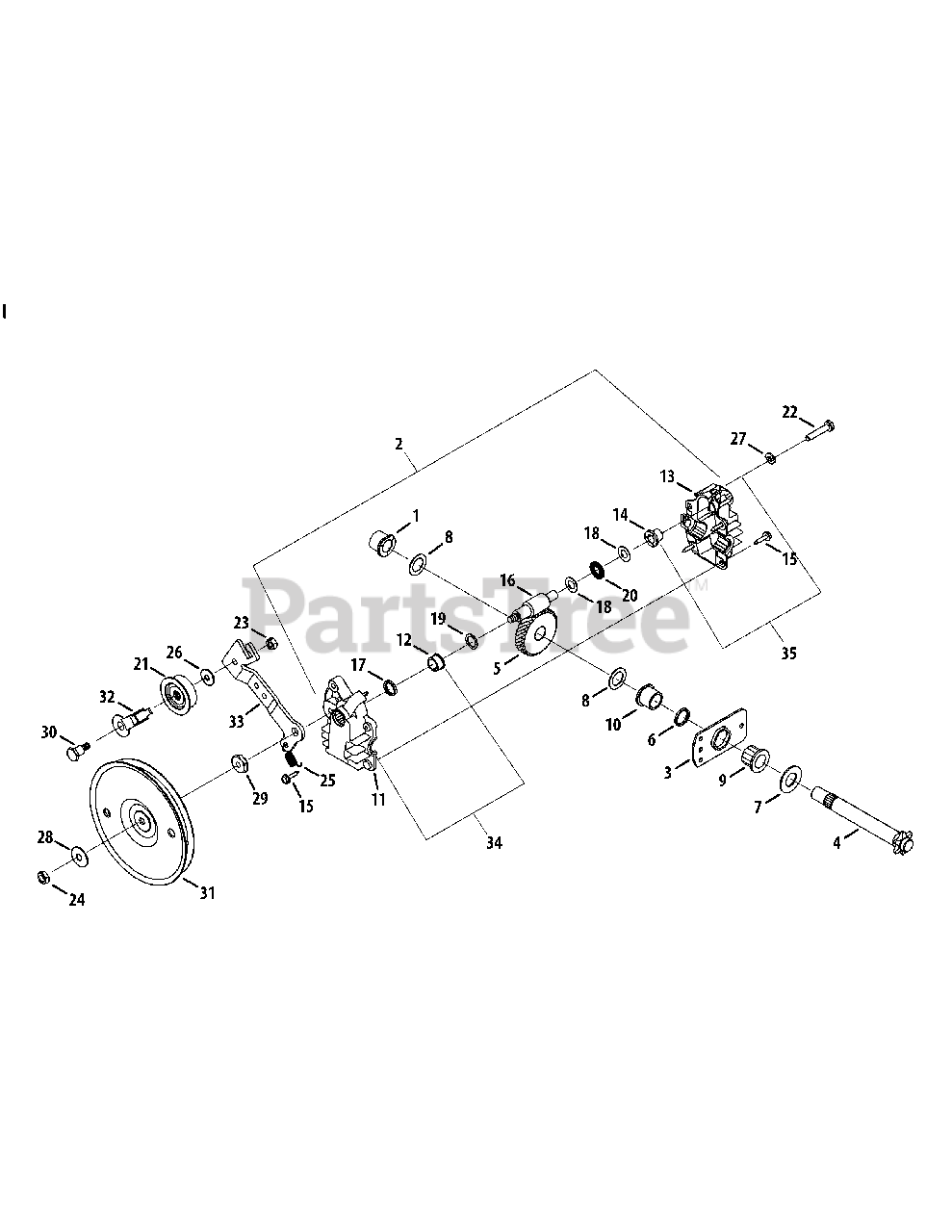

Transmission Parts Diagram

  • Title

1

Troy-Bilt 941-0415

Flange Bearing.566 ID

$10.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 918-0255

Shredder Transmission Assembly

$782.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 16500A-0637

Hex Bearing Cup

$8.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 911-1118

Output Shaft 6T Sprocket

$32.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 717-1432

Helical 34T Gear

$58.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 721-0213

Oil Seal

$10.99

$

In Stock, Qty 15

0

7

Troy-Bilt 736-0187

Flat Washer, .64 ID x 1.24 OD

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 936-0336

Flat Washer, 5/8 x 1.0

$4.49

$

In Stock, Qty 7

0

9

Troy-Bilt 941-0413

Hex Flange Bearing, .631 ID

$10.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 741-0414

Flange Bearing, .629 ID

$10.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 719-0325

Lower Housing

$92.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 748-0373

Flange Bearing, .503 ID

$4.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 719-0324A

Upper Housing

$92.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 748-0208A

Flange Bearing, .378 ID

$4.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 710-0589

Hex Washer Screw, #10-16 x.75

$6.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 717-1433

Pinion Shaft 10T

$40.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 921-0329

Oil Seal

$10.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 936-0314

Thrust Washer, .382 ID x.684 OD
(Superseded to 736-0314)

$

$

Not available

19

Troy-Bilt 936-0520

Flat Washer, .504 ID x.70 OD

$5.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 741-0479

Thrust Bearing, .375 ID x.812 OD

$11.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 956-0008

Idler Pulley Assembly W/ Bearing

$20.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 956-0558

Idler Pulley Only

$11.99

$

In Stock, Qty 5

0

21

Troy-Bilt 941-0556

Needle Bearing Only
(Superseded to 741-0556)

$

$

Not available

22

Troy-Bilt 710-1062

Hex Cap Screw, 1/4-20 x 1.25

$6.49

$

Usually ships in 3-6 days

0

23

Troy-Bilt 912-0138

Hex Nut, 1/4-28
(Superseded to 712-0138)

$

$

Not available

24

Troy-Bilt 912-3045

Hex Jam Nut, 5/16-24 LH Thd

$4.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 932-0357A

Extension Spring, 1.12 Lg
(Superseded to 732-0357A)

$4.49

$

In Stock, Qty 13

0

26

Troy-Bilt 736-0270

Bell Washer, .265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 11

0

28

Troy-Bilt 936-0425

Bell Washer, .325 ID x.930 OD
(Superseded to 736-0425)

$

$

Not available

29

Troy-Bilt 738-0440

Shoulder Spacer, .375 ID x.165 OD

$5.99

$

In Stock, only 4 left!

0

30

Troy-Bilt 938-0826

Shoulder Bolt, 1/4-28 x.375

$12.99

$

In Stock, Qty 5

0

31

Troy-Bilt 756-0656

Flat Pulley 5.06 Dia

$36.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 782-7569

Belt Keeper

$7.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 682-0054

Idler Bracket

$25.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 618-0132

Lower Housing Assembly

$28.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 618-0133A

Upper Housing Assembly

$27.99

$

Usually ships in 3-6 days

0
