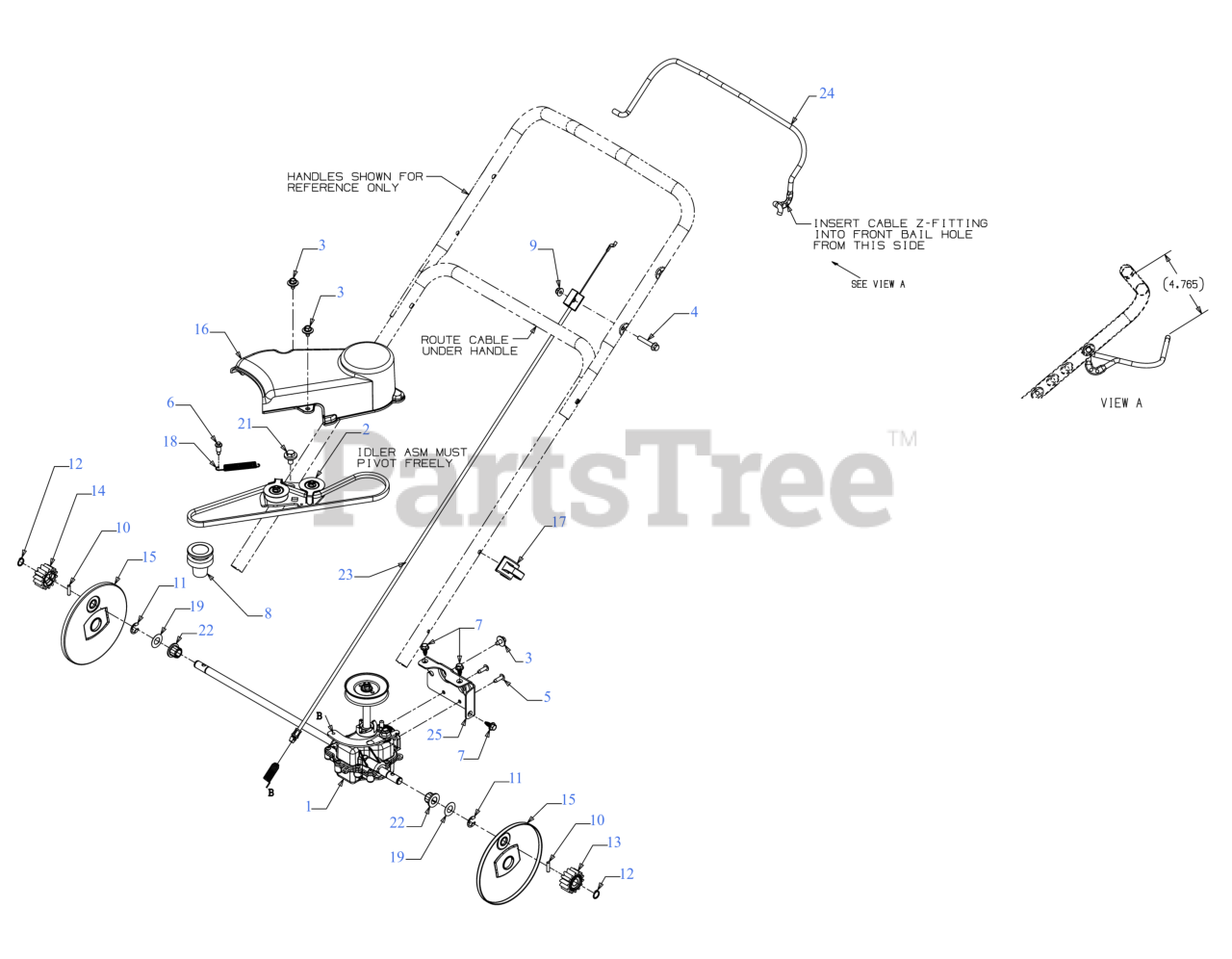

CSV 070 (24A-07MP766) - Troy-Bilt Chipper Shredder Vac (2019) Drive Parts Diagram

Chipper Shredder Vac

Drive Parts Diagram

  • Title
1

Troy-Bilt 618P07953

TRANSMISSION

$232.99

$

Usually ships in 3-6 days

0

2

IDLER ASSEMBLY (COMPONENTS)

Note: (See separate breakdown)

$

$

Not available

3

Troy-Bilt 710-05073

SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-05237

SCREW 1/4-20 x 1.50 GR5

$3.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-1220

SCREW #12-16 x .750

$4.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 710-1650

SCREW .30 x .46

$4.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 911-04245

IMPELLER INSERT HUB

$71.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 915-0221

DOWEL PIN

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 916-0104

E-RING FOR .500 SHAFT

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 716-0865

SNAP RING FOR .500

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 717-1761

SPUR GEAR 14T (LH)

$13.99

$

In Stock, only 4 left!

0

14

Troy-Bilt 717-1762

SPUR GEAR 14T (RH)

$13.99

$

In Stock, only 3 left!

0

15

Troy-Bilt 731-04643

DUST WHEEL COVER

$8.49

$

In Stock, only 1 left!

0

16

Troy-Bilt 731-04879

BELT COVER

$28.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 731-1820

CABLE GUIDE

$8.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 732-04217

EXTENSION SPRING

$10.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 936-0369

FLAT WASHER
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 738-0930

SHOULDER SCREW .560X.165: 5/16-18

$6.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 741-04108

HEX FLANGE BEARING .506ID x .590LG

$5.99

$

In Stock, Qty 12

0

23

Troy-Bilt 746P04156

CONTROL CABLE

$42.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 747-04305B

GULLWING DRIVE BAIL- RED

$40.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 781-04078-0637

MOUNTING BRACKET

$17.99

$

Usually ships in 3-6 days
