CSV 070 (24A-07MP710) - Cub Cadet Chipper/Shredder/Vacuum (2020) Drive Parts Diagram

Chipper/Shredder/Vacuum

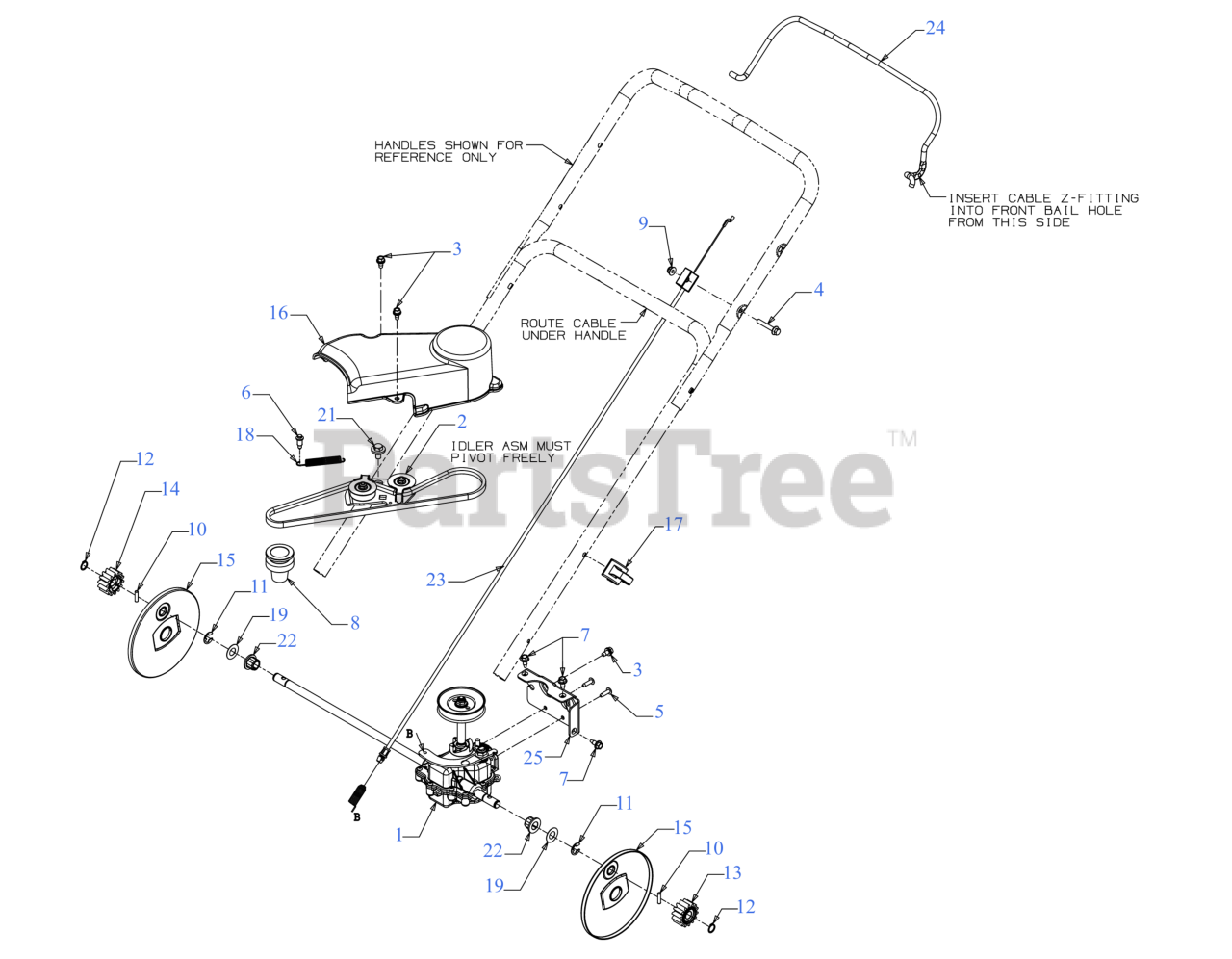

Drive Parts Diagram

  • Title
1

Cub Cadet 618P07953

TRANSMISSION

$232.99

$

Usually ships in 3-6 days

0

2

IDLER ASSEMBLY (COMPONENTS)

Note: (See separate breakdown)

$

$

Not available

3

Cub Cadet 710-05073

SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-05237

SCREW 1/4-20 x 1.50 GR5

$3.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-1220

SCREW #12-16 x .750

$4.99

$

In Stock, only 4 left!

0

6

Cub Cadet 710-1650

SCREW .30 x .46

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 911-04245

IMPELLER INSERT HUB

$71.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 915-0221

DOWEL PIN

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 916-0104

E-RING FOR .500 SHAFT

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 716-0865

SNAP RING FOR .500

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 717-1761

SPUR GEAR 14T (LH)

$13.99

$

In Stock, only 4 left!

0

14

Cub Cadet 717-1762

SPUR GEAR 14T (RH)

$13.99

$

In Stock, only 3 left!

0

15

Cub Cadet 731-04643

DUST WHEEL COVER

$8.49

$

In Stock, only 1 left!

0

16

Cub Cadet 731-04879

BELT COVER

$28.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-1820

CABLE GUIDE

$8.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 732-04217

EXTENSION SPRING

$10.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 936-0369

FLAT WASHER
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 738-0930

SHOULDER SCREW .560X.165: 5/16-18

$6.99

$

In Stock, only 1 left!

0

22

Cub Cadet 741-04108

HEX FLANGE BEARING .506ID x .590LG

$5.99

$

In Stock, Qty 12

0

23

Cub Cadet 746P04156

CONTROL CABLE

$42.99

$

In Stock, only 3 left!

0

24

Cub Cadet 747-06593A

GULLWING DRIVE BAIL- YELLOW

$40.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 781-04078-0637

MOUNTING BRACKET

$17.99

$

Usually ships in 3-6 days

0
