CSV 070 (24A-07MP710) - Cub Cadet Chipper/Shredder/Vacuum (2015) CSV070 General Assembly Parts Diagram

Chipper/Shredder/Vacuum

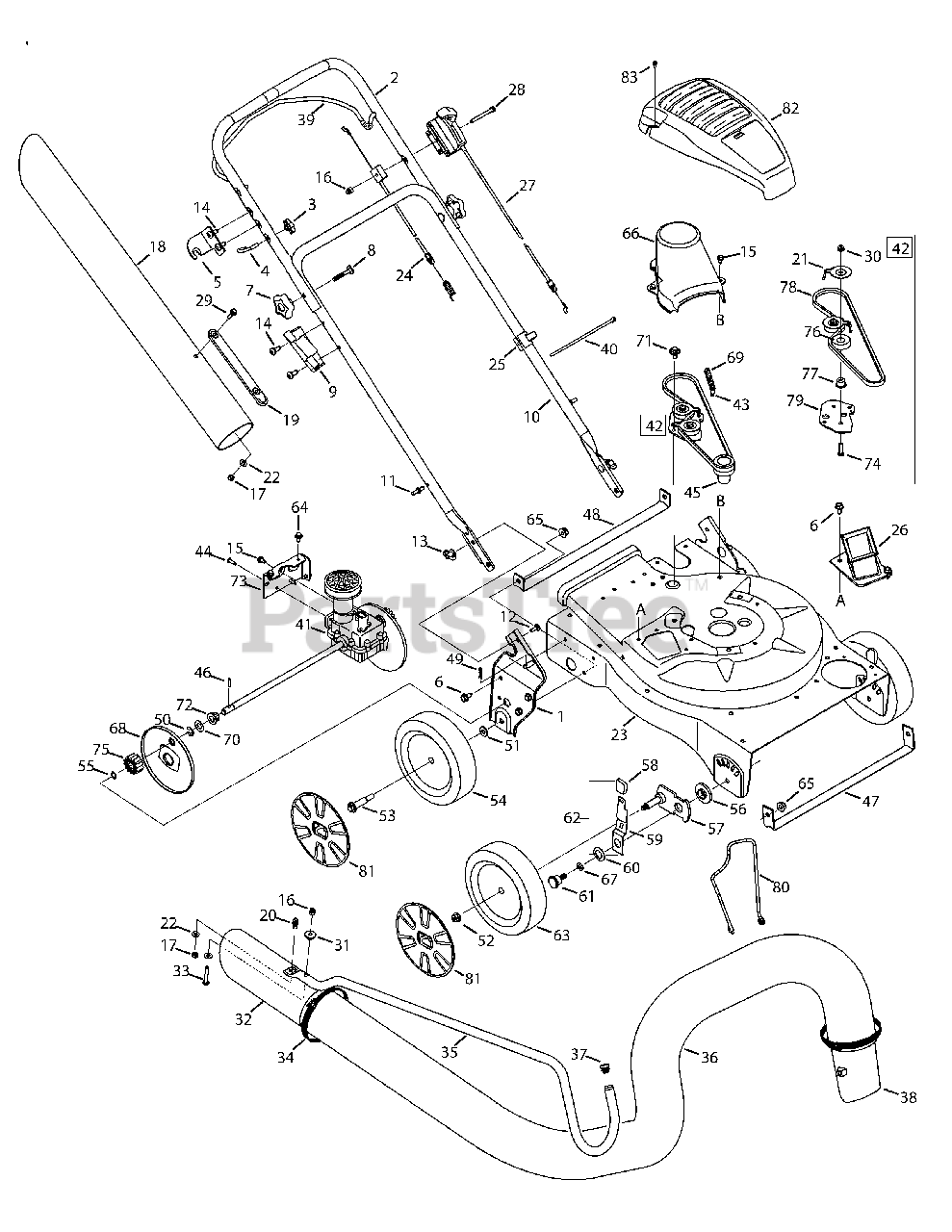

CSV070 General Assembly Parts Diagram

  • Title

1

Cub Cadet 981-0156A-4021

Handle Bracket Ass’y RH

$45.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 981-0155A-4021

Handle Brkt Ass’y LH (Not Shown)

$45.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 749-04163-0637

Upper Handle
(Superseded to 749-04163A-0637)

$49.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 781-1056-0637

Upper Handle Bracket

$24.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-0726

Hex Cap Screw, 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 720-04072A

Handle Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

9

Cub Cadet 731-04911

Nozzle Handle Clip

$11.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 749-04165-0637

Lower Handle

$43.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 711-06418

Studs

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0703

Carriage Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0397A

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-1611B

TT Screw, 5/16-18 x .750

$6.99

$

In Stock, only 2 left!

0

15

Cub Cadet 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 912-0442

Cap Lock Nut, 1/4-20
(Superseded to 712-0442)

$

$

Not available

17

Cub Cadet 912-0291

Hex Lock Nut, 1/4-20
(Superseded to 712-0291)

$

$

Not available

18

Cub Cadet 731-06445

Hose Extension

$40.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 723-04008A

Chute Strap

$9.99

$

In Stock, Qty 20+

0

20

Cub Cadet 911-04069

Pin

$8.49

$

In Stock, Qty 20+

0

21

Cub Cadet 782-7598

Belt Keeper

$15.99

$

In Stock, only 1 left!

0

22

Cub Cadet 936-3020

Flat Washer.271 ID x.630 OD
(Superseded to 736-3020)

$

$

Not available

23

Cub Cadet 781-04266-4021

Upper Flail Housing

$194.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 746-04156

Drive Control Cable
(Superseded to 746P04156)

$42.99

$

In Stock, only 1 left!

0

25

Cub Cadet 731-1820

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 681-04088-4021

Chipper Chute Assembly

$75.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 946-04155A

Speed Control Cable

$92.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-1122

Hex Screw, 1/4-20 x 2.50

$7.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-04666

Screw, 1/4-20 x .75

$6.99

$

In Stock, only 3 left!

0

30

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 748-0457

Spacer

$5.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 731-2478

Hose Nozzle
(Superseded to 731-2478A)

$77.99

$

In Stock, only 4 left!

0

33

Cub Cadet 710-3288

Hex Cap Screw, 1/4-20 x 2.625

$6.99

$

In Stock, Qty 12

0

34

Cub Cadet 723-0295

Adjustment Clamp

$10.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 749-1270A

Nozzle Handle

Variations

Cub Cadet 749-1270A-0637

Nozzle Handle, CSV - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 764-0648A

Vacuum Hose

$165.99

$

In Stock, only 3 left!

0

37

Cub Cadet 720-0369

Handle Plug

$13.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 731-06469

Hose Adapter

$39.99

$

In Stock, only 1 left!

0

39

Cub Cadet 747-06593

Drive Control
(Superseded to 747-06593A)

$40.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 918-04460

Transmission Assembly

$277.99

$

Usually ships in 3-6 days

0

42

Cub Cadet N/A

Idler Assembly (Incl. Ref.# 76-79)

$

$

Currently unavailable

43

Cub Cadet 710-1650

Shoulder Screw, #12-24 x .30 x .46

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 710-1220

Screw, #12-16 x .750

$4.99

$

In Stock, only 4 left!

0

45

Cub Cadet 911-04245

Impeller Hub

$71.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 915-0221

Dowel Pin

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 781-04082-0637

Front Wheel Support Brace

$28.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 781-04081-0637

Rear Wheel Support Brace

$27.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 916-0104

E-Ring

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 936-3004

Flat Washer, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

52

Cub Cadet 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 738-04523

Shoulder Screw, 3/8-16

$9.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 634-05040

Wheel, 8 x 2

$40.99

$

In Stock, Qty 20+

0

55

Cub Cadet 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 741-04242

Height Adjustment Bearing

$7.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 681-04195

Pivot Arm Assembly

$14.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

59

Cub Cadet 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

60

Cub Cadet 736-0741

Bell Washer, .760 ID x.25 OD

$4.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 738-1172

Shoulder Screw, .750 x.500

$5.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 987-02051

Height Lever Assembly (Incl. Ref.# 58-59)
(Superseded to 687-02051)

$

$

Not available

63

Cub Cadet 634-04665

Wheel 8 x 2

$40.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 710-1652

Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

65

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

66

Cub Cadet 731-04879

Belt Cover

$28.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 936-0314

Thrust Washer, .375 ID x.70 OD
(Superseded to 736-0314)

$

$

Not available

68

Cub Cadet 731-04643

Wheel Cover

$8.49

$

In Stock, only 1 left!

0

69

Cub Cadet 732-04217

Extension Spring, .375 x 2.95

$10.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 936-0369

Flat Wash, .508ID x1.00OD x.020
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

71

Cub Cadet 738-0930

Shoulder Screw, .560 x.165

$6.99

$

In Stock, only 1 left!

0

72

Cub Cadet 741-04108

Drive Axle Bushing

$5.99

$

In Stock, Qty 11

0

73

Cub Cadet 781-04078-0637

Transmission Mounting Bracket

$17.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 710-0597

Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 13

0

75

Cub Cadet 717-1762

Spur Gear - RH

$13.99

$

In Stock, only 3 left!

0

75

Cub Cadet 717-1761

Spur Gear - LH (Not Shown)

$13.99

$

In Stock, only 4 left!

0

76

Cub Cadet 941-0600

Ball Bearing

$25.99

$

In Stock, Qty 20+

0

77

Cub Cadet 750-1050

Flange Spacer,.260 x.659 x.517

$5.49

$

Usually ships in 3-6 days

0

78

Cub Cadet 954-0369

Belt, 3/8 x 32.5

$28.99

$

In Stock, Qty 5

0

79

Cub Cadet 781-04077-0637

Idler Bracket

$14.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 747-04985

Tube Holder

$25.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 731-08570

Hubcap, 8"

$5.49

$

In Stock, only 2 left!

0

82

Cub Cadet 731-09094B

Engine Shroud

$26.99

$

In Stock, Qty 5

0

83

Cub Cadet 710-04509

Screw, #10-16 x 1.25

$3.99

$

Usually ships in 3-6 days

0
