CSV 070 (24A-07MM066) - Troy-Bilt Chipper Shredder Vac (2012) 1P70C0A-11 Cylinder Head Parts Diagram

Chipper Shredder Vac

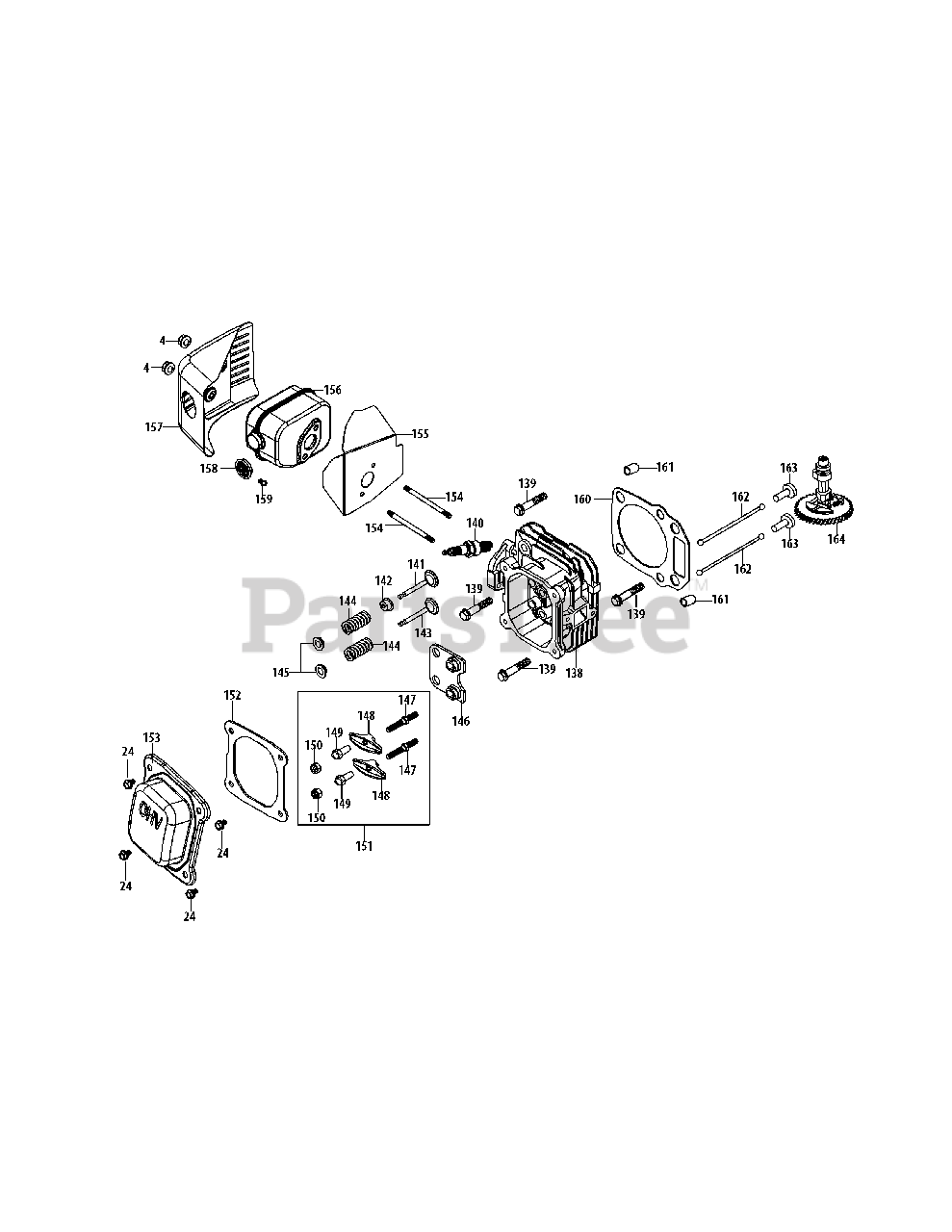

1P70C0A-11 Cylinder Head Parts Diagram

  • Title

4

Troy-Bilt 712-04212

Nut M6X10M
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 6

0

24

Troy-Bilt 710-04916

Bolt M6X14

$4.49

$

Usually ships in 3-6 days

0

138

Troy-Bilt 951-10413A

Cylinder Head Assembly
(Superseded to 951-10413B)

Note: (Incl.135,136,138,141-150,152,155,160)

$187.99

$

Usually ships in 3-6 days

0

139

Troy-Bilt 710-04982

Bolt M8X54 Cylinder Head

$3.99

$

Usually ships in 3-6 days

0

140

Troy-Bilt 951-10292

Spark Plug/F6Rtc
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

141

Troy-Bilt 951-10345

Valve Kit

$65.99

$

Usually ships in 3-6 days

0

142

Troy-Bilt 951-11818

Intake Valve Seal

$11.99

$

Usually ships in 3-6 days

0

143

Troy-Bilt 951-10345

Valve Kit

$65.99

$

Usually ships in 3-6 days

0

144

Troy-Bilt 951-12116

Valve Spring

$3.99

$

Usually ships in 3-6 days

0

145

Troy-Bilt 951-12000

Valve Spring Retainer

$4.49

$

In Stock, only 1 left!

0

146

Troy-Bilt 951-11629

Push Rod Guide

$8.49

$

In Stock, only 2 left!

0

147

Troy-Bilt 710-04902

Rocker Arm Stud

$6.99

$

In Stock, only 4 left!

0

148

Troy-Bilt 951-12175

Rocker Arm

$

$

Not available

149

Troy-Bilt 751-11123

Fulcrum Nut

$10.99

$

In Stock, only 4 left!

0

150

Troy-Bilt 751-11124

Jam Nut

$9.49

$

In Stock, only 2 left!

0

151

Troy-Bilt 951-11606

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

152

Troy-Bilt 951-11551

Valve Cover Gasket

$10.99

$

In Stock, only 4 left!

0

153

Troy-Bilt 951-11548

Valve Cover

$14.99

$

Usually ships in 3-6 days

0

154

Troy-Bilt 710-05094

Muffler Stud M6X95

$4.49

$

In Stock, only 2 left!

0

154

Troy-Bilt 951-10342

Muffler Stud Assemlby

$9.99

$

In Stock, only 2 left!

0

155

Troy-Bilt 951-11739

Muffler Gasket

$10.99

$

Usually ships in 3-6 days

0

156

Troy-Bilt 951-10403

Muffler Assembly

$82.99

$

Usually ships in 3-6 days

0

157

Troy-Bilt 951-10411

Muffler Shield

$31.99

$

Usually ships in 3-6 days

0

158

Troy-Bilt 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

159

Troy-Bilt 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

160

Troy-Bilt 951-11630

Cylinder Head Gasket

$12.99

$

Usually ships in 3-6 days

0

161

Troy-Bilt 715-04090

Cylinder Head Dowel Pin 10×16
(Superseded to 715-04108)

$4.49

$

In Stock, only 1 left!

0

162

Troy-Bilt 751-10344

Push Rod Kit
(Superseded to 951-10344)

$18.99

$

Usually ships in 3-6 days

0

163

Troy-Bilt 951-11607

Tappet

$8.49

$

Usually ships in 3-6 days

0

164

Troy-Bilt 951-11767

Camshaft Assembly

$68.99

$

Usually ships in 3-6 days

0

Troy-Bilt 952Z1P70C0A-11

Complete Engine

Note: (Not Shown)

$

$

Not available

Troy-Bilt 951-11772

Gasket Kit - External

Note: (Not Shown) (Incl.29,79,95,134,136,152,155)

$41.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11770

Gasket Kit - Complete

Note: (Not Shown) (Incl.27,29,54,72,79,95,98,134,136,152,155,160)

$

$

Not available
