CSV 070 (24A-07MM066) - Troy-Bilt Chipper Shredder Vac (2010) CSV 070 Drive & Frame Parts Diagram

Chipper Shredder Vac

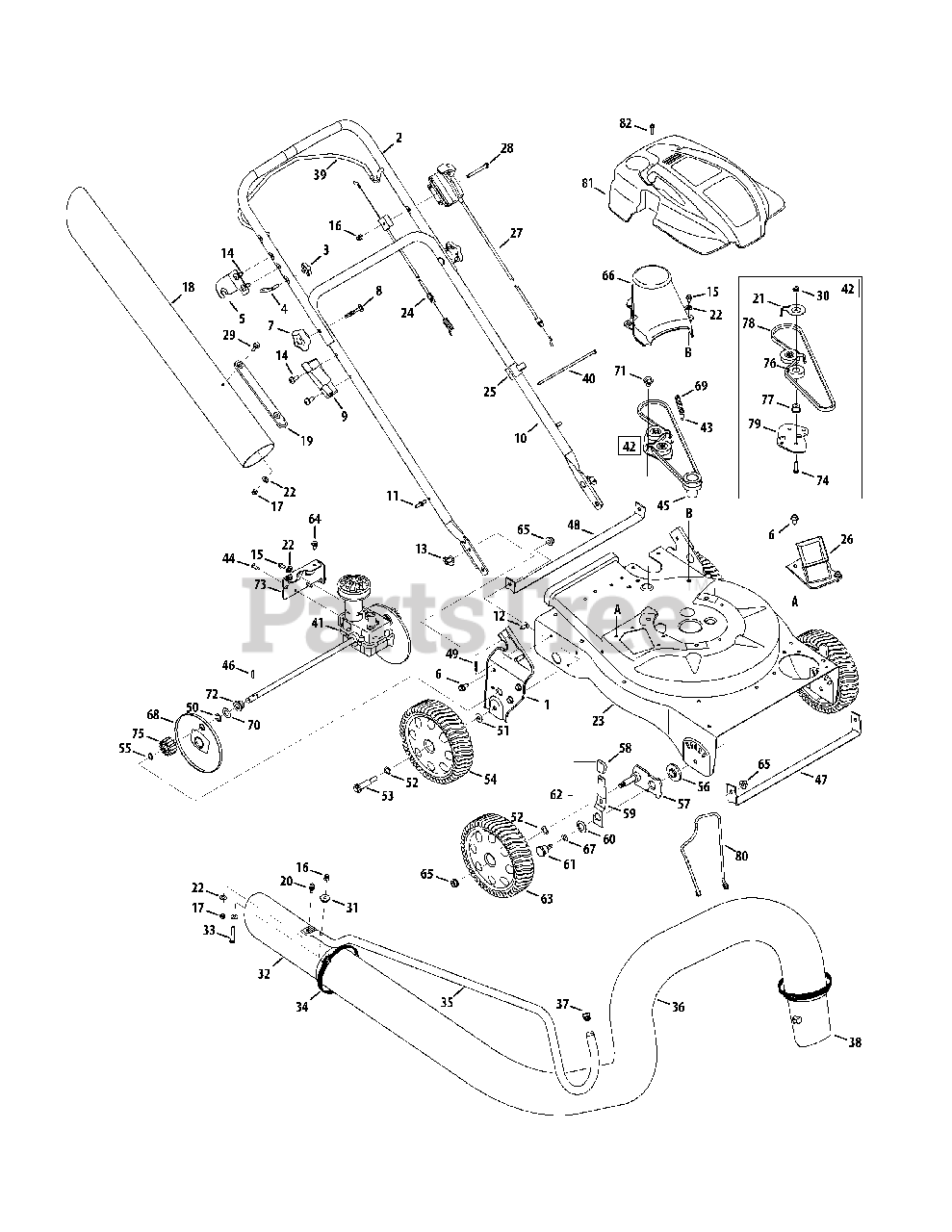

CSV 070 Drive & Frame Parts Diagram

  • Title

1

Troy-Bilt 981-0156A-0638

Handle Bracket Assembly RH

$42.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 981-0155A-0638

Handle Bracket Assembly LH

Note: (Not Shown)

$42.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 749-04163-0637

Upper Handle
(Superseded to 749-04163A-0637)

$49.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 781-1056-0637

Upper Handle Bracket

$24.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 710-0726

Hex Cap Screw, 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 720-04072A

Handle Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 731-04911

Nozzle Handle Clip

$11.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 749-04165-0637

Lower Handle

$43.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 711-1293

Studs

$4.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 710-0703

Carriage Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 15

0

13

Troy-Bilt 912-0397

Wing Nut, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-1611B

TT Screw, 5/16-18 x .750

$6.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 912-0442

Cap Lock Nut, 1/4-20
(Superseded to 712-0442)

$

$

Not available

17

Troy-Bilt 912-0291

Hex Lock Nut, 1/4-20
(Superseded to 712-0291)

$

$

Not available

18

Troy-Bilt 731-06445

Hose Extension

$40.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 723-04008A

Chute Strap

$9.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 911-04069

Pin

$8.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 782-7598

Belt Keeper

$15.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 936-3020

Flat Washer.271 ID x.630 OD
(Superseded to 736-3020)

$

$

Not available

23

Troy-Bilt 781-04266-0638

Upper Flail Housing

$194.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 746-04156

Drive Control Cable
(Superseded to 746P04156)

$42.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 731-1820

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 681-04088-0638

Chipper Chute Assembly

$75.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 746-04155

Speed Control Cable
(Superseded to 946-04155A)

$92.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 710-1122

Hex Screw, 1/4-20 x 2.50

$7.49

$

Usually ships in 3-6 days

0

29

Troy-Bilt 710-04666

Screw, 1/4-20 x .75

$6.99

$

In Stock, only 3 left!

0

30

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 748-0457

Spacer

$5.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt 731-2478

Hose Nozzle
(Superseded to 731-2478A)

$77.99

$

In Stock, only 4 left!

0

33

Troy-Bilt 710-3288

Hex Cap Screw, 1/4-20 x 2.625

$6.99

$

In Stock, Qty 12

0

34

Troy-Bilt 723-0295

Adjustment Clamp

$10.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 749-1270A

Nozzle Handle

Variations

Troy-Bilt 749-1270A-0637

HANDLE-NOZZLE CSV - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 764-0648A

Vacuum Hose

$165.99

$

In Stock, only 3 left!

0

37

Troy-Bilt 720-0369

Handle Plug

$13.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 731-06469

Hose Adapter

$39.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 747-04305A

Drive Control
(Superseded to 747-04305B)

$40.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 918-04460

Transmission Assembly

$277.99

$

Usually ships in 3-6 days

0

42

MTD 981-04027

Idler Assembly

Note: (Incl. Ref.# 76-79)

$

$

Not available

43

Troy-Bilt 710-1650

Shoulder Screw, #12-24 x .30 x .46

$4.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 710-1220

Screw, #12-16 x .750

$4.99

$

In Stock, only 4 left!

0

45

Troy-Bilt 911-04245

Impeller Hub

$71.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 915-0221

Dowel Pin

$4.49

$

In Stock, Qty 20+

0

47

Troy-Bilt 781-04082-0637

Front Wheel Support Brace

$28.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 781-04081-0637

Rear Wheel Support Brace

$27.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 916-0104

E-Ring

$3.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 936-3004

Flat Washer, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

52

Troy-Bilt 936-0232

Wave Washer, .531 ID x.781 OD
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

53

Troy-Bilt 738-1015

Shoulder Screw, 3/8-16

$10.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 734-04018B

Wheel, 8 x 2.125
(Superseded to 734-04018C)

$19.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

56

Troy-Bilt 741-04242

Height Adjustment Bearing

$7.49

$

Usually ships in 3-6 days

0

57

Troy-Bilt 687-02342

Pivot Arm Assembly

$15.99

$

In Stock, only 2 left!

0

58

Troy-Bilt 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

59

Troy-Bilt 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

60

Troy-Bilt 736-0741

Bell Washer, .760 ID x.25 OD

$4.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 738-1172

Shoulder Screw, .750 x.500

$5.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 987-02051

Height Lever Assembly
(Superseded to 687-02051)

Note: (Incl. Ref.# 58-59)

$

$

Not available

63

Troy-Bilt 734-04033

Wheel 8 x 2
(Superseded to 753-08091)

$46.99

$

In Stock, Qty 13

0

64

Troy-Bilt 710-1652

Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

65

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

66

Troy-Bilt 731-04879

Belt Cover

$28.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 936-0314

Thrust Washer, .375 ID x.70 OD
(Superseded to 736-0314)

$

$

Not available

68

Troy-Bilt 731-04643

Wheel Cover

$8.49

$

In Stock, only 1 left!

0

69

Troy-Bilt 732-04217

Extension Spring, .375 x 2.95

$10.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 936-0369

Flat Wash, .508ID x1.00OD x.020
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

71

Troy-Bilt 738-0930

Shoulder Screw, .560 x.165

$6.99

$

In Stock, only 1 left!

0

72

Troy-Bilt 741-04108

Drive Axle Bushing

$5.99

$

In Stock, Qty 12

0

73

Troy-Bilt 781-04078-0637

Transmission Mounting Bracket

$17.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 710-0597

Screw, 1/4-20 x 1.00

$3.99

$

In Stock, Qty 14

0

75

Troy-Bilt 717-1762

Spur Gear - RH

$13.99

$

In Stock, only 3 left!

0

75

Troy-Bilt 717-1761

Spur Gear - LH

Note: (Not Shown)

$13.99

$

In Stock, only 4 left!

0

76

Troy-Bilt 941-0600

Ball Bearing

$25.99

$

In Stock, Qty 20+

0

77

Troy-Bilt 750-1050

Flange Spacer,.260 x.659 x.517

$5.49

$

Usually ships in 3-6 days

0

78

Troy-Bilt 954-0369

Belt, 3/8 x 32.5

$28.99

$

In Stock, Qty 5

0

79

Troy-Bilt 781-04077-0637

Idler Bracket

$14.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt 747-04985

Tube Holder

$25.99

$

Usually ships in 3-6 days

0

81

Troy-Bilt 631-04261

Engine Shroud
(Superseded to 931-04261)

$

$

Not available

82

Troy-Bilt 710-04744

Screw, #12-16 x 1.00

$5.49

$

In Stock, Qty 11

0
