CSV 070 (24A-070J766) - Troy-Bilt Chipper Shredder Vac (2007) Impeller Assembly Parts Diagram

Chipper Shredder Vac

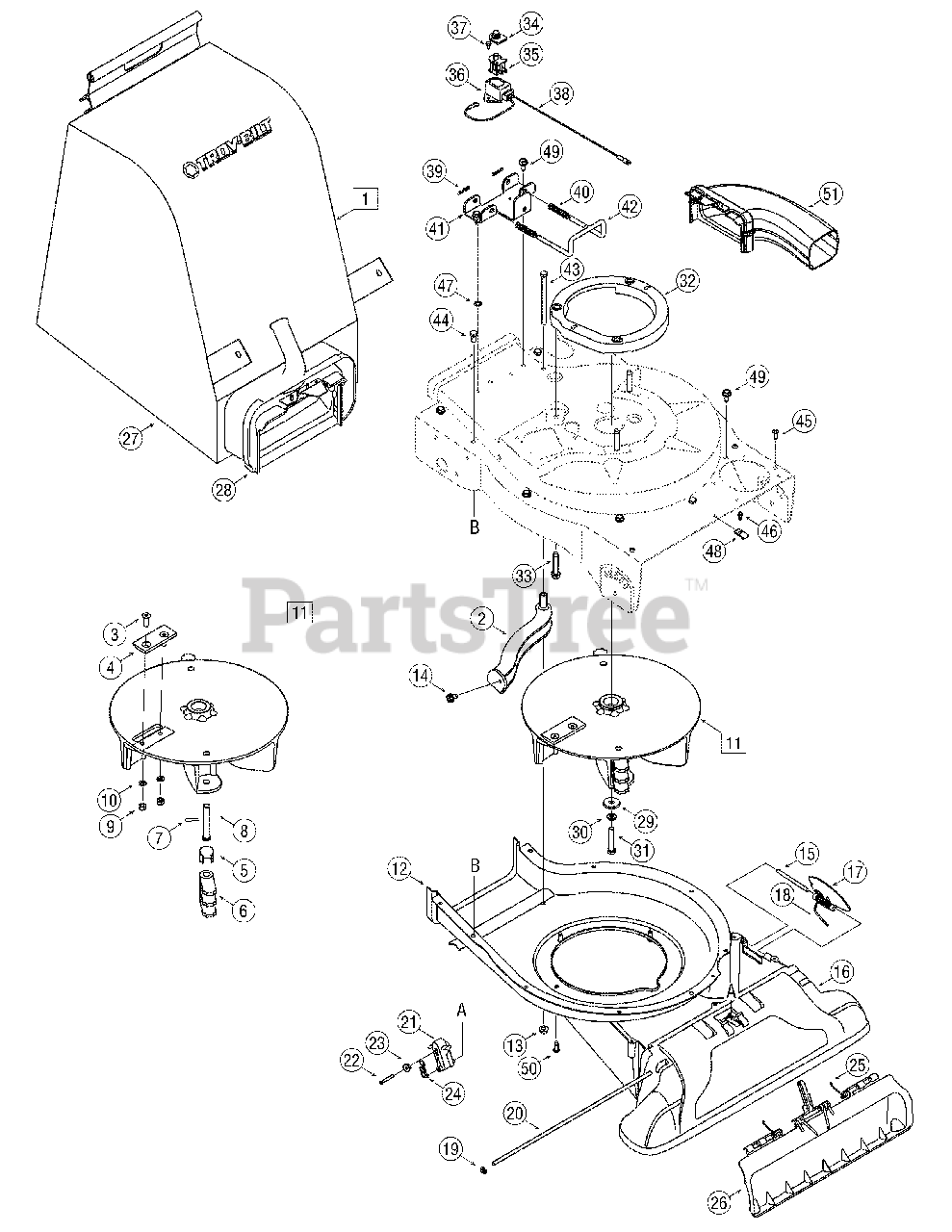

Impeller Assembly Parts Diagram

  • Title

1

Troy-Bilt 664-04031

Bag Assembly
(Superseded to 964-04031)

$333.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 681-0154

Screen Assembly
(Superseded to 681-0154-0637)

Variations

Troy-Bilt 681-0154-0637

SCREEN ASM. - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-1054

Hex Screw 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 781-0490

Chipper Blade
(Superseded to 981-0490)

$30.99

$

In Stock, Qty 6

0

5

Troy-Bilt 781-0735

Pin Clip

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 719-0329

Flail

$31.99

$

In Stock, only 4 left!

0

7

Troy-Bilt 715-0166

Spiral Pin

$6.99

$

In Stock, Qty 19

0

8

Troy-Bilt 711-1401

Clevis Pin

$9.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 712-0411

Lock Nut, 5/16-24

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 681-0152

Impeller Assembly(Incl. Ref.# 3 - 10)
(Superseded to 981-0152)

$534.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 781-0721B

Lower Flail Housing

Variations

Troy-Bilt 781-0721B-0498

HOUSING-FLAIL LWR - OLD CUB YELLOW (0498)

$157.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0721B-0638

HOUSING-FLAIL LWR - MTD/TROY-BILT RED (0638)

$157.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0721B-0662

HOUSING-FLAIL LWR - OYSTER GRAY (0662)

$157.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0721B-0665

HOUSING-FLAIL LWR - YARDMAN GREEN (0665)

$157.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0721B-0689

HOUSING-FLAIL LWR - POLO GREEN (0689)

$157.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0721B-0691

HOUSING-FLAIL LWR - BLACK JACK (0691)

$157.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0721B-0709

HOUSING-FLAIL LWR - MASTERCRAFT GREEN (0709)

$157.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0721B-0716

HOUSING-FLAIL LWR - CUB YELLOW-99 (0716)

$136.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0721B-0721

HOUSING-FLAIL LWR - SEARS RED (0721)

$157.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0721B-4021

HOUSING-FLAIL LWR - CUB YELLOW 2 (4021)

$157.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-0721B-4044

HOUSING-FLAIL LWR - CRAFTSMAN RED (4044)

$157.99

$

Usually ships in 3-6 days

0

$136.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-0607

Screw, 5/16-18 x.500

$6.99

$

In Stock, Qty 9

0

15

Troy-Bilt 747-04297

Hinge Pin

$6.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 731-2293A

Nozzle
(Superseded to 981-04031)

$199.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 781-1064

Base Adapter Door

$36.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 732-1156

Torsion Spring

$4.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 726-0106

Cap Speed Nut 1/4

$3.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 711-1551

Pivot Rod

$12.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 731-04967

Nozzle Door Lever

$13.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 710-1256

Hex Screw, #8-18 x 1.25

$5.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 750-1294

Shoulder Spacer

$13.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 732-3118

Extension Spring

$10.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 732-1151A

Nozzle Door Torsion Spring

$4.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 731-2294A

Nozzle Door

$42.99

$

In Stock, Qty 6

0

27

Troy-Bilt 664-04029

Bag

$260.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 631-0083

Chute Assembly
(Superseded to 631P0083A)

$107.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 736-0247

Flat Washer.375 ID x 1.25 OD

$9.49

$

In Stock, Qty 12

0

30

Troy-Bilt 736-0217

Lock Washer 3/8

$4.49

$

In Stock, Qty 6

0

31

Troy-Bilt 710-1273

Hex Cap Screw, 3/8-24 x 2.75

$7.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 631-04118

Engine Spacer Assembly

$38.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 710-1008

Screw, 3/8-16 x 1.875

$5.49

$

In Stock, Qty 7

0

34

Troy-Bilt 725-1700

Switch Cover
(Superseded to 925-1700)

$11.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 725-3166

Safety Switch
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 731-1613

Safety Switch Cover
(Superseded to 931-1613)

$10.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 710-0224

Hex Washer Screw #10-16 x.50
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 18

0

38

Troy-Bilt 629-0920A

Wire Harness

$41.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 732-0962

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

41

Troy-Bilt 781-0778A

Mounting Bracket
(Superseded to 781-0778A-0637)

Variations

Troy-Bilt 781-0778A-0637

BRACKET-MOUNTING - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 747-1153

Lock Rod

$16.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 710-3195

Hex Cap Screw 5/16-18 x 4.5

$7.49

$

Usually ships in 3-6 days

0

44

Troy-Bilt 710-3025

Hex Cap Screw 5/16-18 x.625

$3.99

$

In Stock, Qty 8

0

45

Troy-Bilt 710-1220

Screw, #12-16 x.750

$4.99

$

In Stock, only 4 left!

0

46

Troy-Bilt 710-0351

Screw #10 - 16 x.500

$4.49

$

Usually ships in 3-6 days

0

47

Troy-Bilt 736-0607

External L-Washer 5/16

$3.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 726-0139

Speed Nut

$6.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 710-0726

Hex Index Screw, 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 710-1650

Shoulder Screw, #12-24 x .30 x .46

$4.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 631-0090

Blower Chute
(Superseded to OEM-290-012)

Note: If Equipped

$99.99

$

Usually ships in 3-6 days

0

Troy-Bilt 723-0400

Safety Glasses

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0
