CSV 061 (24A-061K710) - Cub Cadet Chipper/Shredder/Vacuum (2006) Carburetor Assembly Parts Diagram

Chipper/Shredder/Vacuum

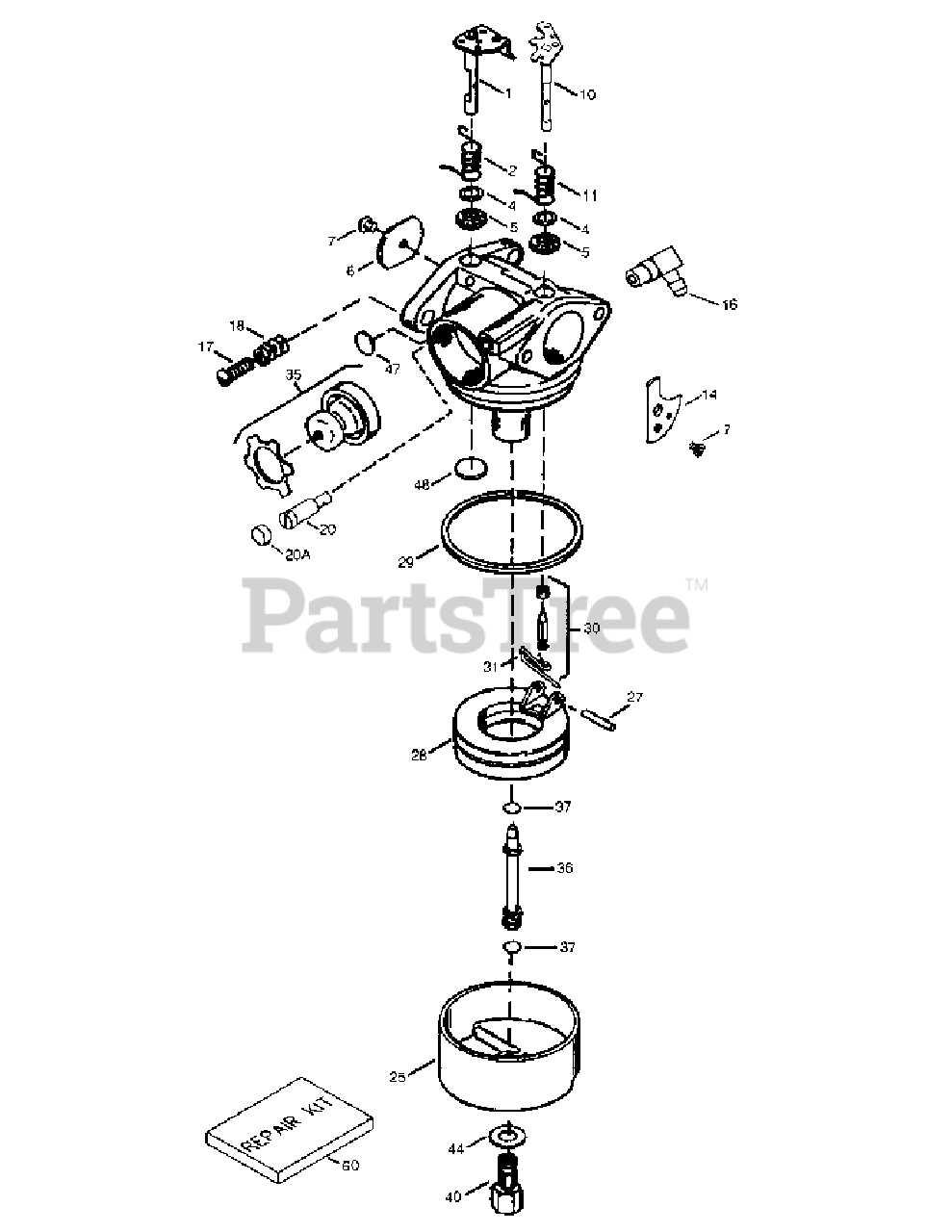

Carburetor Assembly Parts Diagram

  • Title

Cub Cadet TC-640343

Carburetor

Note: Incl. 184 of Engine PartsList

$113.99

$

Usually ships in 3-12 days

0

1

Cub Cadet TC-631615

Throttle Shaft & Lever Assembly

$9.49

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-631767

Throttle Return Spring

$1.99

$

In Stock, only 4 left!

0

4

Cub Cadet TC-631184

Dust Seal Washer

$1.99

$

In Stock, Qty 16

0

5

$1.99

$

In Stock, Qty 7

0

6

Cub Cadet TC-640070

Throttle Shutter

$1.99

$

In Stock, Qty 5

0

7

Cub Cadet TC-650506

Shutter Screw

$1.49

$

In Stock, Qty 14

0

10

Cub Cadet TC-630973

Choke Shaft & Lever Assembly

$7.49

$

Usually ships in 3-12 days

0

11

Cub Cadet TC-632045

Choke Return Spring

$1.99

$

In Stock, only 2 left!

0

14

Cub Cadet TC-632790

Choke Shutter

$1.99

$

Usually ships in 3-12 days

0

16

Cub Cadet TC-631807

Fuel Fitting

$8.49

$

In Stock, only 1 left!

0

17

Cub Cadet TC-651025

Throttle Crack Screw/Idle Speed Screw

$1.99

$

In Stock, only 4 left!

0

18

Cub Cadet TC-630766

Tension Spring

$1.99

$

In Stock, only 4 left!

0

20

Cub Cadet TC-640018

Idle Restrictor Screw

$8.99

$

In Stock, only 1 left!

0

20A

Cub Cadet TC-640053

Idle Restrictor Screw Cap
(Superseded to TC-640200)

$1.99

$

In Stock, Qty 5

0

25

Cub Cadet TC-631867

Float Bowl

$3.49

$

In Stock, Qty 11

0

27

Cub Cadet TC-631024

Float Shaft

$1.99

$

In Stock, Qty 10

0

28

Cub Cadet TC-632802

Float (Plastic)
(Superseded to TC-632816)

$8.49

$

Usually ships in 3-12 days

0

29

Cub Cadet TC-631028

Float Bowl "O" Ring
(Superseded to TC-631028A)

$2.49

$

In Stock, Qty 18

0

30

Cub Cadet TC-631021A

Inlet Needle, Seat, & Clip (Incl. 31)
(Superseded to TC-631021B)

$6.99

$

In Stock, Qty 20+

0

31

Cub Cadet TC-631022

Spring Clip

$1.99

$

In Stock, only 4 left!

0

35

Cub Cadet TC-36045A

Primer Bulb (Red) & Retainer Ring

$6.49

$

In Stock, only 1 left!

0

36

Cub Cadet TC-640019

Main Nozzle Tube

$6.99

$

In Stock, Qty 12

0

36A

Cub Cadet TC-632766

Bowl Vent Tube Extension

$1.99

$

Usually ships in 3-12 days

0

37

Cub Cadet TC-632547

"O" Ring, Main Nozzle Tube

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet TC-640030

High Speed Bowl Nut

$7.49

$

In Stock, Qty 11

0

44

Cub Cadet TC-27110A

Bowl Nut Washer

$2.49

$

In Stock, only 3 left!

0

47

Cub Cadet TC-630748

Welch Plug, Idle Mixture Well

$1.99

$

In Stock, only 1 left!

0

48

Cub Cadet TC-631027

Welch Plug, Atmospheric Vent

$1.99

$

In Stock, only 4 left!

0

60

Cub Cadet TC-632760A

Repair Kit
(Superseded to TC-632760B)

$27.99

$

In Stock, Qty 6

0
