CSV 060K (24A-060K756) - Cub Cadet Chipper/Shredder/Vacuum (2008) Lubrication Parts Diagram

Chipper/Shredder/Vacuum

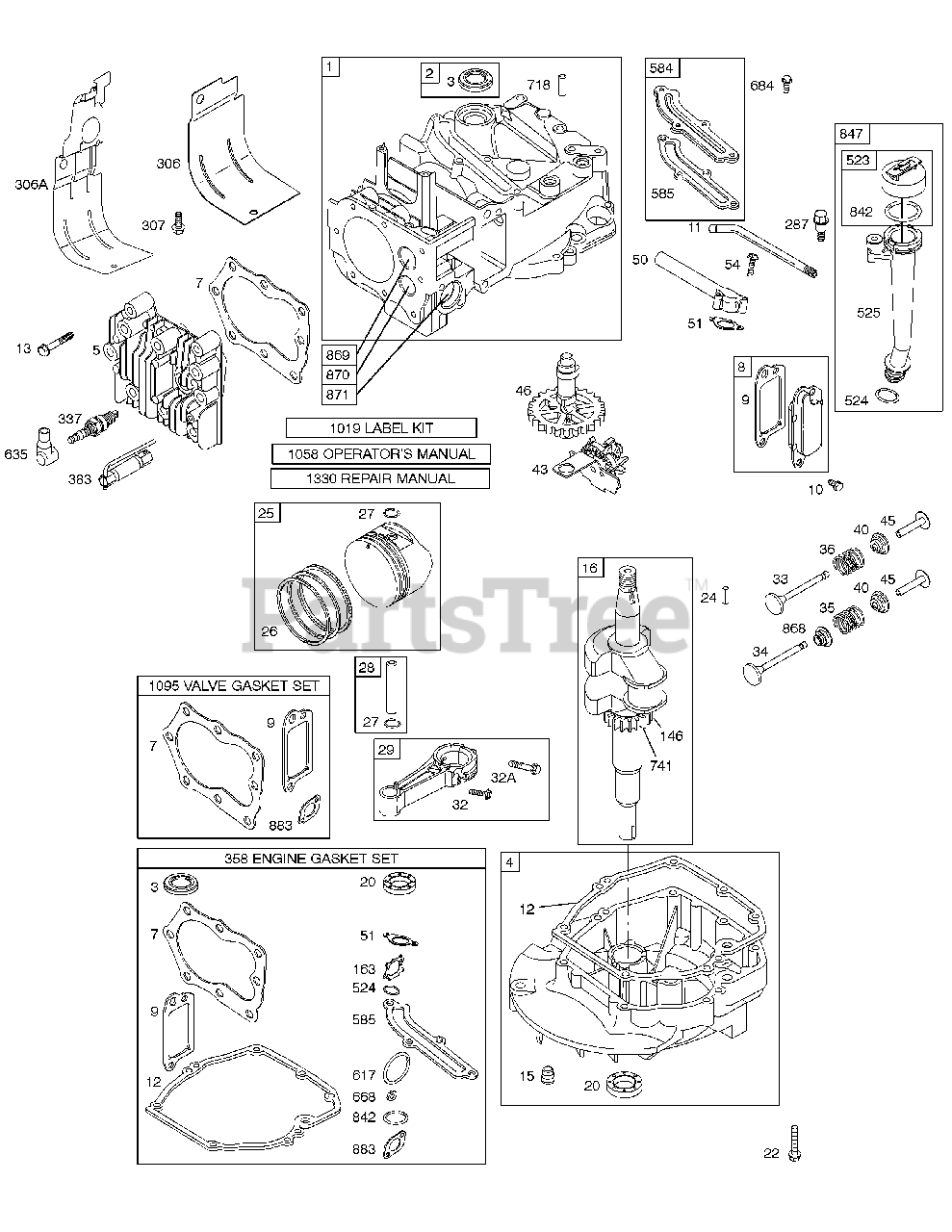

Lubrication Parts Diagram

  • Title

1

Cub Cadet BS-697322

Cylinder Assembly

$295.99

$

In Stock, only 1 left!

0

2

Cub Cadet BS-399269

Kit-Bushing/ Seal (Magneto Side)

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal, Oil (Magneto Side)
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 13

0

4

Cub Cadet BS-493279

Sump, Engine

$120.99

$

In Stock, only 2 left!

0

5

Cub Cadet BS-691160

Head, Cylinder
(Superseded to BS-594989)

$55.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-692249

Gasket, Cylinder Head

$8.49

$

In Stock, Qty 20+

0

8

Cub Cadet BS-695250

Breather Assembly
(Superseded to BS-590395)

$14.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-696125

Gasket, Breather
(Superseded to BS-699833)

$5.49

$

In Stock, only 1 left!

0

10

Cub Cadet BS-691125

Screw (Breather Assembly)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-691781

Tube, Breather

$10.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-692232

Gasket, Crankcase

$5.99

$

In Stock, Qty 20+

0

13

Cub Cadet BS-690912

Screw (Cylinder Head)

$3.99

$

In Stock, Qty 19

0

15

Cub Cadet BS-691680

Plug, Oil Drain (Square Socket)

$5.99

$

In Stock, only 1 left!

0

16

Cub Cadet BS-694478

Crankshaft

$172.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-399781S

Seal, Oil (PTO Side)

$7.99

$

In Stock, Qty 20+

0

22

Cub Cadet BS-691092

Screw (Crankcase Cover/Sump)

$3.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-222698S

Key, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-790359

Piston Assembly (Standard)

$

$

Currently unavailable

26

Cub Cadet BS-790360

Ring Set (Standard)

$

$

Currently unavailable

27

Cub Cadet BS-691866

Lock, Piston Pin

$4.49

$

In Stock, Qty 8

0

28

Cub Cadet BS-499423

Pin, Piston

$9.49

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-499424

Rod, Connecting (Standard)
(Superseded to BS-590406)

$87.99

$

In Stock, only 1 left!

0

32

Cub Cadet BS-691664

Screw (Connecting Rod)

$4.49

$

In Stock, only 2 left!

0

32A

Cub Cadet BS-695759

Screw (Connecting Rod)

$4.99

$

In Stock, only 2 left!

0

33

Cub Cadet BS-262651S

Valve, Exhaust

$24.99

$

In Stock, only 3 left!

0

34

Cub Cadet BS-262652S

Valve, Intake

$21.99

$

In Stock, only 1 left!

0

35

Cub Cadet BS-691270

Spring, Valve (Intake)

$5.49

$

In Stock, Qty 7

0

36

Cub Cadet BS-691270

Spring, Valve (Exhaust)

$5.49

$

In Stock, Qty 7

0

40

Cub Cadet BS-692194

Retainer, Valve

$5.99

$

In Stock, Qty 9

0

43

Cub Cadet BS-691997

Slinger, Governor/Oil

$25.99

$

Usually ships in 2-12 days

0

45

Cub Cadet BS-690548

Tappet, Valve

$9.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-691449

Camshaft

$73.99

$

In Stock, only 1 left!

0

50

Cub Cadet BS-497465

Maifold, Intake
(Superseded to BS-794305)

$

$

Not available

51

Cub Cadet BS-272199S

Gasket, Intake

$4.99

$

In Stock, only 1 left!

0

54

Cub Cadet BS-691650

Screw (Intake Manifold)

$2.99

$

Usually ships in 2-12 days

0

146

Cub Cadet BS-690979

Key, Timing

$3.49

$

In Stock, Qty 8

0

163

Cub Cadet BS-272653

Gasket, Air Cleaner
(Superseded to BS-795629)

$3.49

$

In Stock, Qty 20+

0

287

Cub Cadet BS-690940

Screw (Dipstick Tube)

$3.99

$

In Stock, Qty 5

0

306

Cub Cadet BS-690450

Shield, Cylinder

$10.99

$

Usually ships in 2-12 days

0

306A

Cub Cadet BS-790836

Shield, Cylinder

$

$

Currently unavailable

307

Cub Cadet BS-690345

Screw (Cylinder Shield)

$4.99

$

Usually ships in 2-12 days

0

337

Cub Cadet 759-3338

Plug, Spark (Resistor)

$3.99

$

In Stock, Qty 16

0

358

Cub Cadet BS-497316

Gasket Set, Engine
(Superseded to BS-590508)

Note: (Incl Ref # 3,7,9,12,20,51,163,524,585,617,668,842 & 883)

$37.99

$

In Stock, only 1 left!

0

383

Cub Cadet BS-89838S

Wrench, Spark Plug

$6.49

$

In Stock, only 4 left!

0

523

Cub Cadet BS-499621

Dipstick

$17.99

$

In Stock, only 4 left!

0

524

Cub Cadet BS-692296

Seal, Dipstick Tube

$4.99

$

In Stock, only 1 left!

0

525

Cub Cadet BS-495265

Tube, Dipstick

$

$

Not available

584

Cub Cadet BS-697734

Cover, Breather Passage

$9.49

$

Usually ships in 2-12 days

0

585

Cub Cadet BS-691879

Gasket, Breather Passage

$6.99

$

In Stock, only 1 left!

0

617

Cub Cadet BS-270344

Seal, O-Ring (Intake Manifold)
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

635

Cub Cadet BS-66538S

Boot, Spark Plug

$3.99

$

In Stock, Qty 5

0

668

Cub Cadet BS-493823

Spacer

$6.49

$

In Stock, only 1 left!

0

684

Cub Cadet BS-690345

Screw (Breather Passage Cover)

$4.99

$

Usually ships in 2-12 days

0

718

Cub Cadet BS-690959

Pin, Locating

$6.99

$

In Stock, only 1 left!

0

741

Cub Cadet BS-790345

Gear, Timing (Use Without Woodruff Key)

$

$

Currently unavailable

Cub Cadet BS-691830

Gear, Timing (Uses Woodruff Key)

$17.99

$

Usually ships in 2-12 days

0

842

Cub Cadet BS-691031

Seal, O-Ring (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

847

Cub Cadet BS-692047

Dipstick Tube Assembly

$

$

Not available

868

Cub Cadet BS-697338

Seal, Valve

$13.99

$

In Stock, only 4 left!

0

869

Cub Cadet BS-691155

Seat, Valve (Intake)

$8.99

$

Usually ships in 2-12 days

0

870

Cub Cadet BS-690380

Seat, Valve (Exhaust)

$

$

Not available

871

Cub Cadet BS-262001

Bushing, Valve Guide (Exhaust)

$13.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-63709

Bushing, Valve Guide (Intake)

$14.99

$

Usually ships in 2-12 days

0

883

Cub Cadet BS-691881

Gasket, Exhaust

$8.99

$

Usually ships in 2-12 days

0

1019

Cub Cadet N/A

Kit, Label

$

$

Currently unavailable

1058

Cub Cadet N/A

Operators Manual

$

$

Currently unavailable

1095

Cub Cadet BS-498528

Gasket Set, Valve

Note: (Incl Ref # 7,9 &883)

$26.99

$

Usually ships in 2-12 days

0

1330

Cub Cadet N/A

Manual, Repair

$

$

Currently unavailable
