CSV 060 (24B-060E766) - Troy-Bilt Chipper Shredder Vac (2009) Impeller Assembly Parts Diagram

Chipper Shredder Vac

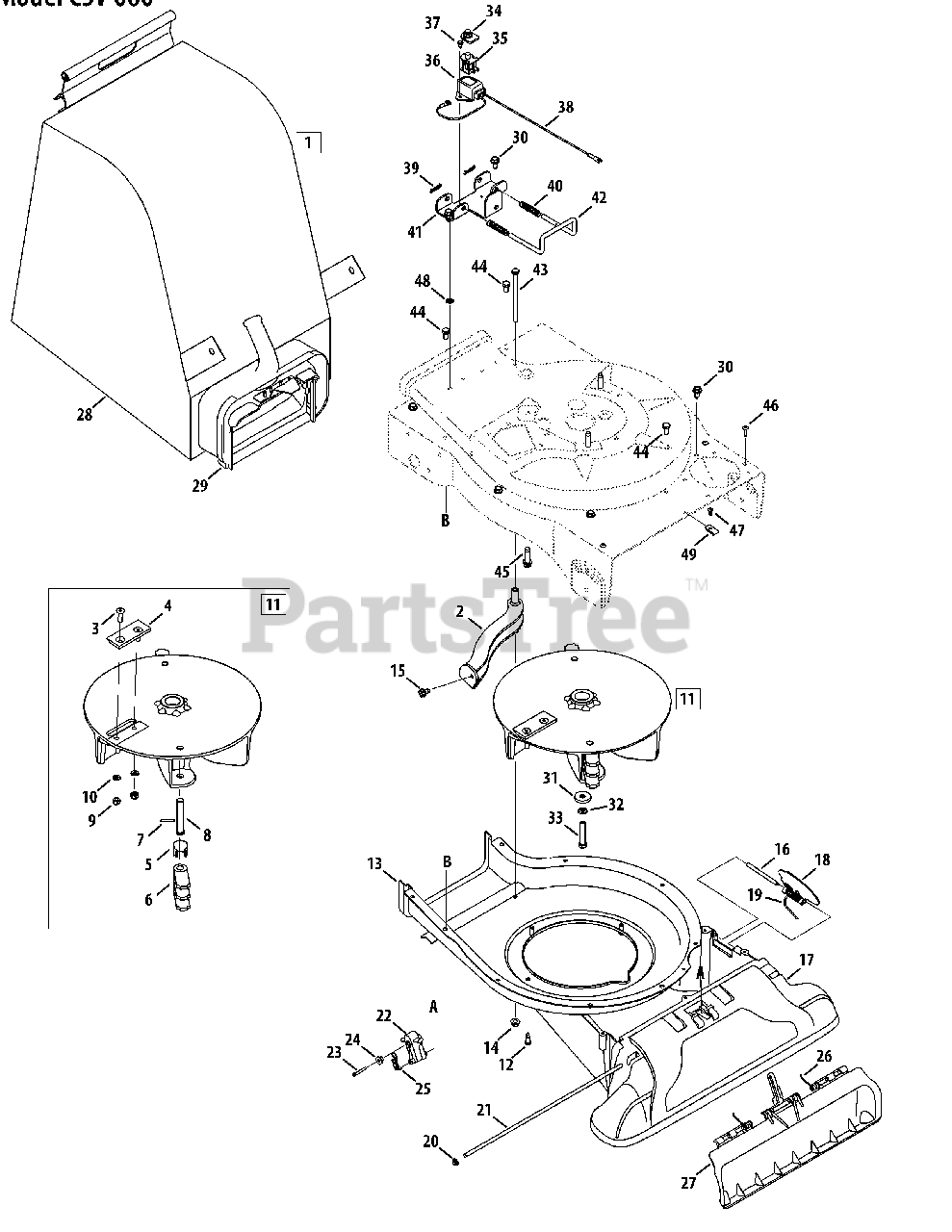

Impeller Assembly Parts Diagram

  • Title

1

Troy-Bilt 964-04031

Bag Assembly
(Superseded to 664P04031A)

$333.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 681-0154-0637

Screen Assembly

$48.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-1054

Hex Screw 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 981-0490

Chipper Blade

$30.99

$

In Stock, Qty 8

0

5

Troy-Bilt 781-0735

Pin Clip

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 719-0329

Flail

$31.99

$

In Stock, only 4 left!

0

7

Troy-Bilt 715-0166

Spiral Pin

$6.99

$

In Stock, Qty 19

0

8

Troy-Bilt 711-1401

Clevis Pin

$9.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 912-0411

Lock Nut, 5/16-24
(Superseded to 712-0411)

$

$

Not available

10

Troy-Bilt 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 981-015

Impeller Assembly (Incl. Ref.# 3 - 10)

$

$

Currently unavailable

12

Troy-Bilt 710-1650

Shoulder Screw, #12-24 x.30 x.46

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 781-0721B-0638

Lower Flail Housing

$157.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-0607

Screw, 5/16-18 x.500

$6.99

$

In Stock, Qty 9

0

16

Troy-Bilt 747-04297

Hinge Pin

$6.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 981-04031

Nozzle

$199.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 781-1064

Base Adapter Door

$36.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 732-1156

Torsion Spring

$4.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 926-0106

Cap Speed Nut 1/4
(Superseded to 726-0106)

$

$

Not available

21

Troy-Bilt 711-1551

Pivot Rod

$12.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 731-04967

Nozzle Door Lever

$13.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 710-1256

Hex Screw, #8-18 x 1.25

$5.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 750-1294

Shoulder Spacer

$13.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 732-3118

Extension Spring

$10.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 732-1151A

Nozzle Door Torsion Spring

$4.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 731-2294A

Nozzle Door

$42.99

$

In Stock, Qty 6

0

28

Troy-Bilt 664-04029

Bag

$260.99

$

In Stock, only 2 left!

0

29

Troy-Bilt 631-0083

Chute Assembly
(Superseded to 631P0083A)

$107.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 710-0726

Hex Index Screw, 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 736-0247

Flat Washer.375 ID x 1.25 OD

$9.49

$

In Stock, Qty 12

0

32

Troy-Bilt 936-0217

Lock Washer 3/8
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 6

0

33

Troy-Bilt 710-0818

Hex Cap Screw 3/8-24 x 2.0

$6.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 925-1700

Switch Cover

$11.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 925-3166

Safety Switch

$16.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 931-1613

Safety Switch Cover

$10.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 910-0224

Hex Washer Screw #10-16 x.50

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 629-0920A

Wire Harness

$41.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 732-0962

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

41

Troy-Bilt 781-0778A-0637

Mounting Bracket

$17.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 747-1153

Lock Rod

$16.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 710-3195

Hex Cap Screw 5/16-18 x 4.5

$7.49

$

Usually ships in 3-6 days

0

44

Troy-Bilt 710-3025

Hex Cap Screw 5/16-18 x.625

$3.99

$

In Stock, Qty 8

0

45

Troy-Bilt 710-0654A

Screw 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 710-1220

Screw, #12-16 x.750

$4.99

$

In Stock, only 4 left!

0

47

Troy-Bilt 710-0351

Screw #10 -16 x.500

$4.49

$

Usually ships in 3-6 days

0

48

Troy-Bilt 736-0607

External L-Washer 5/16

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 726-0139

Speed Nut

$6.99

$

Usually ships in 3-6 days

0

Troy-Bilt 723-0400

Safety Glasses

Note: Not Shown

$26.99

$

Usually ships in 3-6 days
