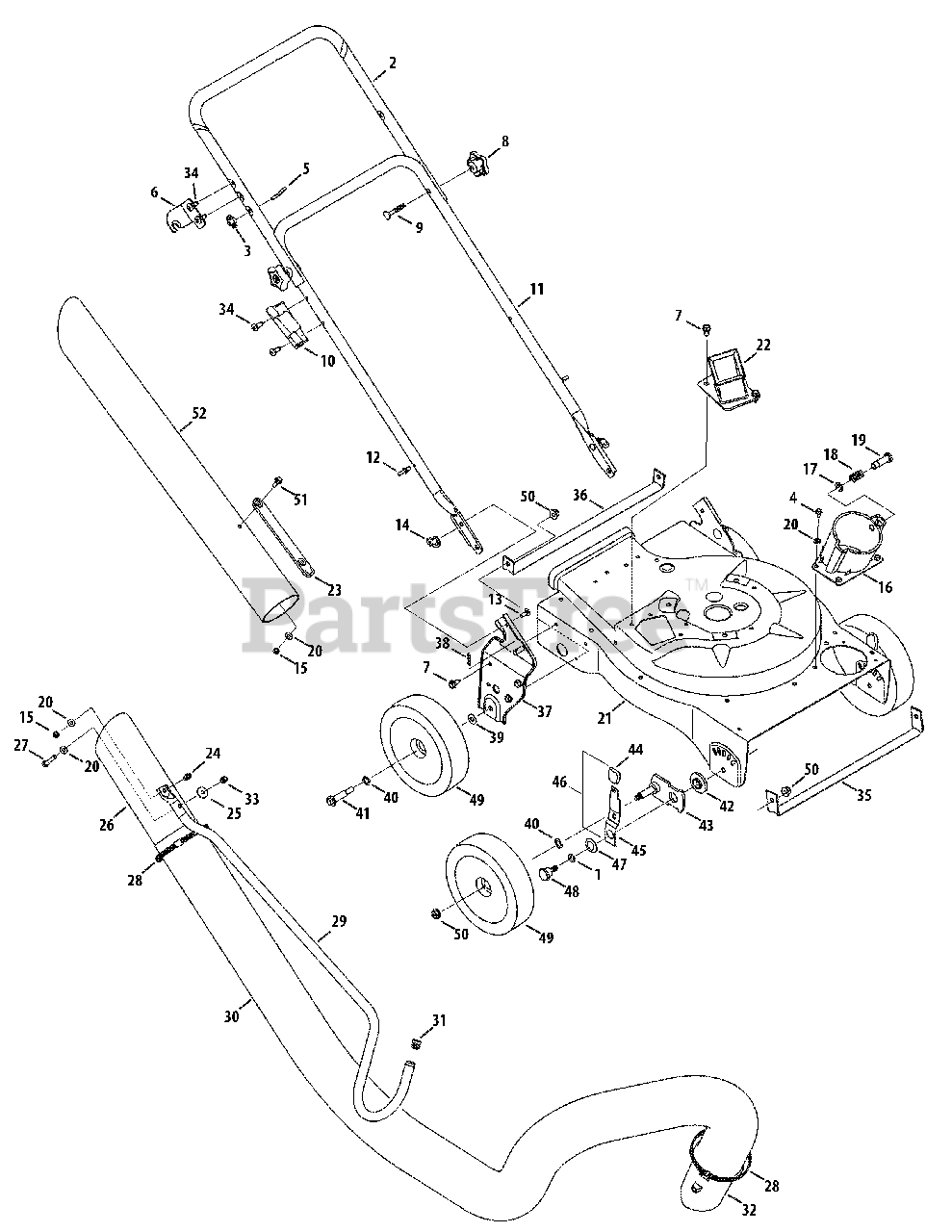

CSV 060 (24B-060E711) - Troy-Bilt Chipper Shredder Vac (2008) General Assembly Parts Diagram

Chipper Shredder Vac

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 736-0314

Thrust Washer.375 ID x.70 OD

$6.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 749-04172

Upper Handle
(Superseded to 749-04172-0637)

Variations

Troy-Bilt 749-04172-0637

Upper Handle - POWDER BLACK (0637)

$39.99

$

In Stock, only 1 left!

0

$39.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0599

Screw, 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 781-1056

Upper Handle Bracket
(Superseded to 781-1056-0637)

Variations

Troy-Bilt 781-1056-0637

Handle Bracket, Upper - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 710-0726

Hex Cap Screw 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 731-04911

Nozzle Handle Clip

$11.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 749-04165

Lower Handle
(Superseded to 749-04165-0637)

Variations

Troy-Bilt 749-04165-0637

Lower Handle, Black - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 711-1293

Studs

$4.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 710-0703

Carriage Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-0291

Hex Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 8

0

16

Troy-Bilt 681-0195

Hose Base Adapter Assembly

Note: (Incl. Ref.# 17-19)

$40.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 716-0104

E Ring.500 Dia
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 732-3035

Compression Spring
(Superseded to 932-3035)

$11.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 711-1571

Clevis Pin

$8.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 736-3020

Flat Washer.271 ID x.630 OD

$6.99

$

In Stock, Qty 9

0

21

Troy-Bilt 781-04223

Upper Flail Housing

Variations

Troy-Bilt 781-04223-0638

HOUSING-FLAIL UPPER - MTD/TROY-BILT RED (0638)

$200.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04223-0665

HOUSING-FLAIL UPPER - YARDMAN GREEN (0665)

$174.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04223-4021

HOUSING-FLAIL UPPER - CUB YELLOW 2 (4021)

$186.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04223-4044

HOUSING-FLAIL UPPER - CRAFTSMAN RED (4044)

$200.99

$

Usually ships in 3-6 days

0

$162.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 681-04088

Chipper Chute Assembly

Variations

Troy-Bilt 681-04088-0638

CHUTE ASM-CHIPPER - MTD/TROY-BILT RED (0638)

$75.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04088-0709

CHUTE ASSY-CHIPPER - MASTERCRAFT GREEN (0709)

$75.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04088-0691

CHUTE ASM-CHIPPER - BLACK JACK (0691)

$84.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04088-0721

CHUTE ASM-CHIPPER - SEARS RED (0721)

$75.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04088-4021

CHUTE ASSY-CHIPPER - CUB YELLOW 2 (4021)

$75.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04088-4044

CHUTE ASM-CHIPPER - CRAFTSMAN RED (4044)

$75.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 723-04008A

Chute Strap

$9.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 711-04069

Pin
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 748-0457

Spacer

$5.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 731-2478

Hose Nozzle
(Superseded to 731-2478A)

$77.99

$

In Stock, only 4 left!

0

27

Troy-Bilt 710-3288

Hex Cap Screw 1/4-20 x 2.625

$6.99

$

In Stock, Qty 12

0

28

Troy-Bilt 723-0295

Adjustment Clamp

$10.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 749-1270A

Nozzle Handle

Variations

Troy-Bilt 749-1270A-0637

HANDLE-NOZZLE CSV - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 764-0648A

Vacuum Hose

$165.99

$

In Stock, only 3 left!

0

31

Troy-Bilt 720-0369

Handle Plug

$13.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 731-2292

Hose Adapter

$40.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 712-0442

Cap Lock Nut, 1/4-20

$6.99

$

In Stock, only 4 left!

0

34

Troy-Bilt 710-1611B

TT Screw, 5/16-18 x .750

$6.99

$

In Stock, only 2 left!

0

35

Troy-Bilt 781-04082

Front Wheel Support Brace
(Superseded to 781-04082-0637)

Variations

Troy-Bilt 781-04082-0637

BRACE-SUPT WHL FRT - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 781-04081

Rear Wheel Support Brace
(Superseded to 781-04081-0637)

Variations

Troy-Bilt 781-04081-0637

BRACE-SUPT WHL RR - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 681-0156A

Handle Bracket Ass’y RH
(Superseded to 981-0156A)

Variations

Troy-Bilt 681-0156A-0721

BRACKET ASM-HNDL RH - SEARS RED (0721)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0156A-4044

BRACKET ASM-HNDL RH - CRAFTSMAN RED (4044)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0156A-0637

BRACKET ASM-HNDL RH - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0156A-0638

BRACKET ASM-HNDL RH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0156A-0662

BRACKET ASM-HNDL RH - OYSTER GRAY (0662)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0156A-0665

BRACKET ASM-HNDL RH - YARDMAN GREEN (0665)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0156A-0689

BRACKET ASM-HNDL RH - POLO GREEN (0689)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0156A-0691

BRKT ASM-HNDL RH - BLACK JACK (0691)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0156A-0709

BRACKET ASM-HNDL RH - MASTERCRAFT GREEN (0709)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0156A-0716

BRACKET ASM-HNDL RH - CUB YELLOW-99 (0716)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0156A-4021

BRACKET ASSY-HANDLE RH - CUB YELLOW 2 (4021)

$45.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0155A

Handle Brkt Ass’y LH
(Superseded to 981-0155A)

Variations

Troy-Bilt 681-0155A-0637

BRACKET ASM-HNDL LH - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0155A-0638

BRACKET ASM-HNDL LH - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0155A-0662

BRACKET ASM-HNDL LH - OYSTER GRAY (0662)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0155A-0665

BRACKET ASM-HNDL LH - YARDMAN GREEN (0665)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0155A-0689

BRACKET ASM-HNDL LH - POLO GREEN (0689)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0155A-0691

BRKT ASM-HNDL LH - BLACK JACK (0691)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0155A-0709

BRACKET ASM-HNDL LH - MASTERCRAFT GREEN (0709)

$36.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0155A-0716

BRACKET ASM-HNDL LH - CUB YELLOW-99 (0716)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0155A-0721

BRACKET ASM-HNDL LH - SEARS RED (0721)

$42.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0155A-4021

BRACKET ASSY-HANDLE LH - CUB YELLOW 2 (4021)

$45.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0155A-4044

BRACKET ASM-HNDL LH - CRAFTSMAN RED (4044)

$42.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 736-0105

Bell Washer.401 ID x.870 OD

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 736-0232

Wave Washer.531 ID x.781 OD

$4.99

$

In Stock, Qty 12

0

41

Troy-Bilt 738-1015

Shoulder Screw 3/8-16

$10.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 741-04242

Height Adjustment Bearing

$7.49

$

Usually ships in 3-6 days

0

43

Troy-Bilt 687-02342

Pivot Arm Assembly

$15.99

$

In Stock, only 2 left!

0

44

Troy-Bilt 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

45

Troy-Bilt 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

46

Troy-Bilt 687-02051

Height Lever Assembly

Note: (Incl. Ref.# 44-45)

$9.49

$

Usually ships in 3-6 days

0

47

Troy-Bilt 736-0741

Bell Washer.760 ID x.25 OD

$4.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 738-1172

Shoulder Screw,.750 x.500

$5.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 734-04033

Wheel 8 x 2
(Superseded to 753-08091)

$46.99

$

In Stock, Qty 9

0

50

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 710-04666

Screw, 1/4-20 x .75

$6.99

$

In Stock, only 3 left!

0

52

Troy-Bilt 731-06445

Hose Extension

$40.99

$

Usually ships in 3-6 days

0
