CSV 060 (24A-06MP723) - Troy-Bilt Chipper Shredder Vac (2022) Wheel Height Adjustment Parts Diagram

Chipper Shredder Vac

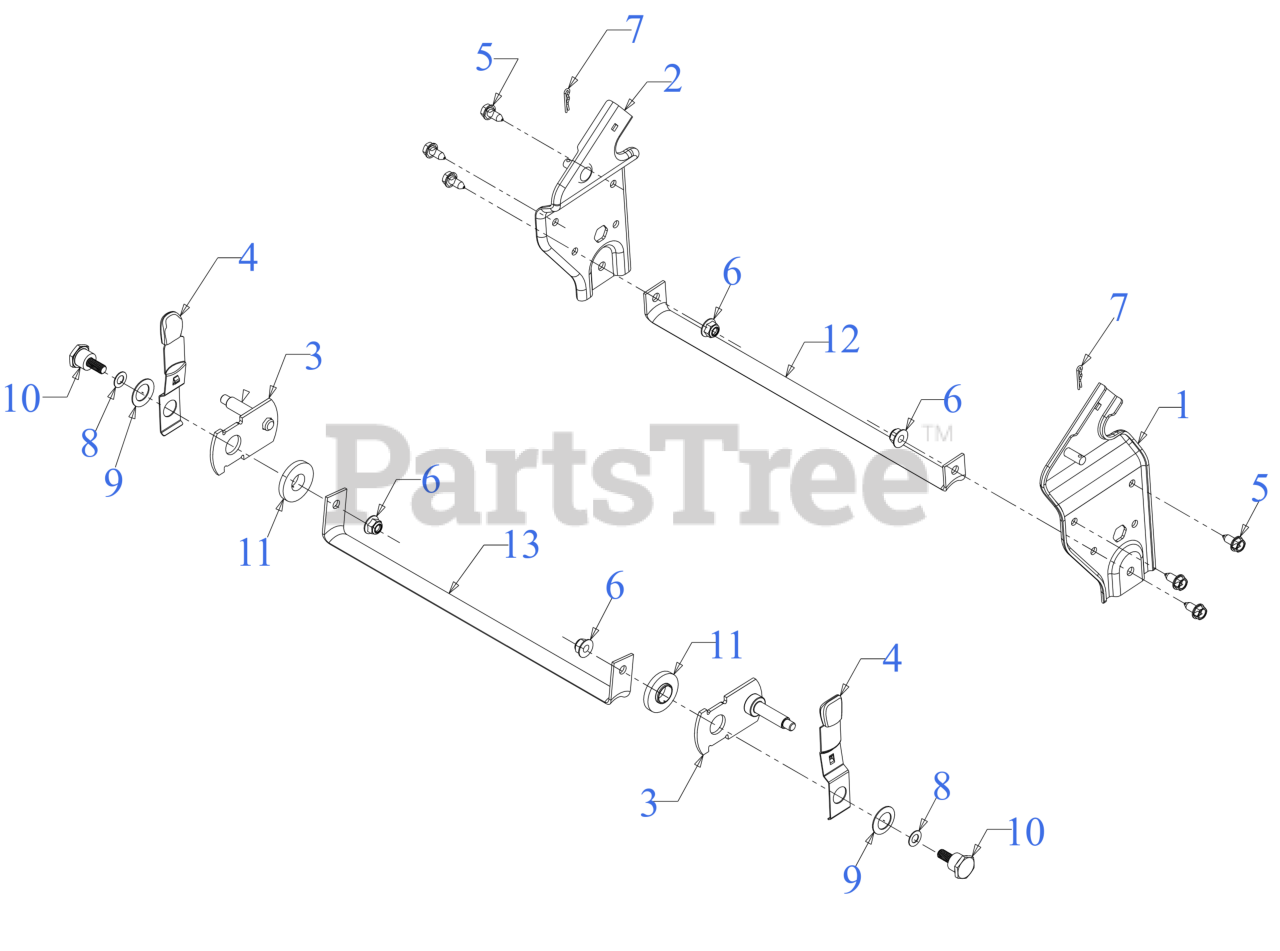

Wheel Height Adjustment Parts Diagram

1

Troy-Bilt 981-0155A-0637

BRACKET ASM-HNDL LH - POWDER BLACK (0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

$45.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 981-0156A-0721

BRACKET ASM-HNDL RH - SEARS RED (0721)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

$45.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 681-04195

PIVOT ARM ASSEMBLY

$14.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 687-02051

HEIGHT LEVER ASSEMBLY

$9.49

$

Usually ships in 3-6 days

0

4

Troy-Bilt 731-13116-1

HEIGHT ADJUSTMENT KNOB

Note: (Not Shown)

$13.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 732-1026

SPRING LEVER

Note: (Not Shown)

$6.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-0726

SCREW 5/16-12 x .750

$4.49

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 714-0104

COTTER PIN .072 DIA

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 736-0314

WASHER THRUST .375X.70X.030

$6.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 736-0741

BELL WASHER

$4.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 738-1172

SHOULDER SCREW .75 X.50 X3/8-16

$5.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 741-04242

HEIGHT ADJUSTMENT BEARING

$7.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 781-04081-0637

SUPPORT BRACE

$27.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 781-04082-0637

SUPPORT BRACE

$28.99

$

Usually ships in 3-6 days

0
