CSV 060 (24A-060C711) - Troy-Bilt Chipper Shredder Vac (2012) CSV060 General Assembly Parts Diagram

Chipper Shredder Vac

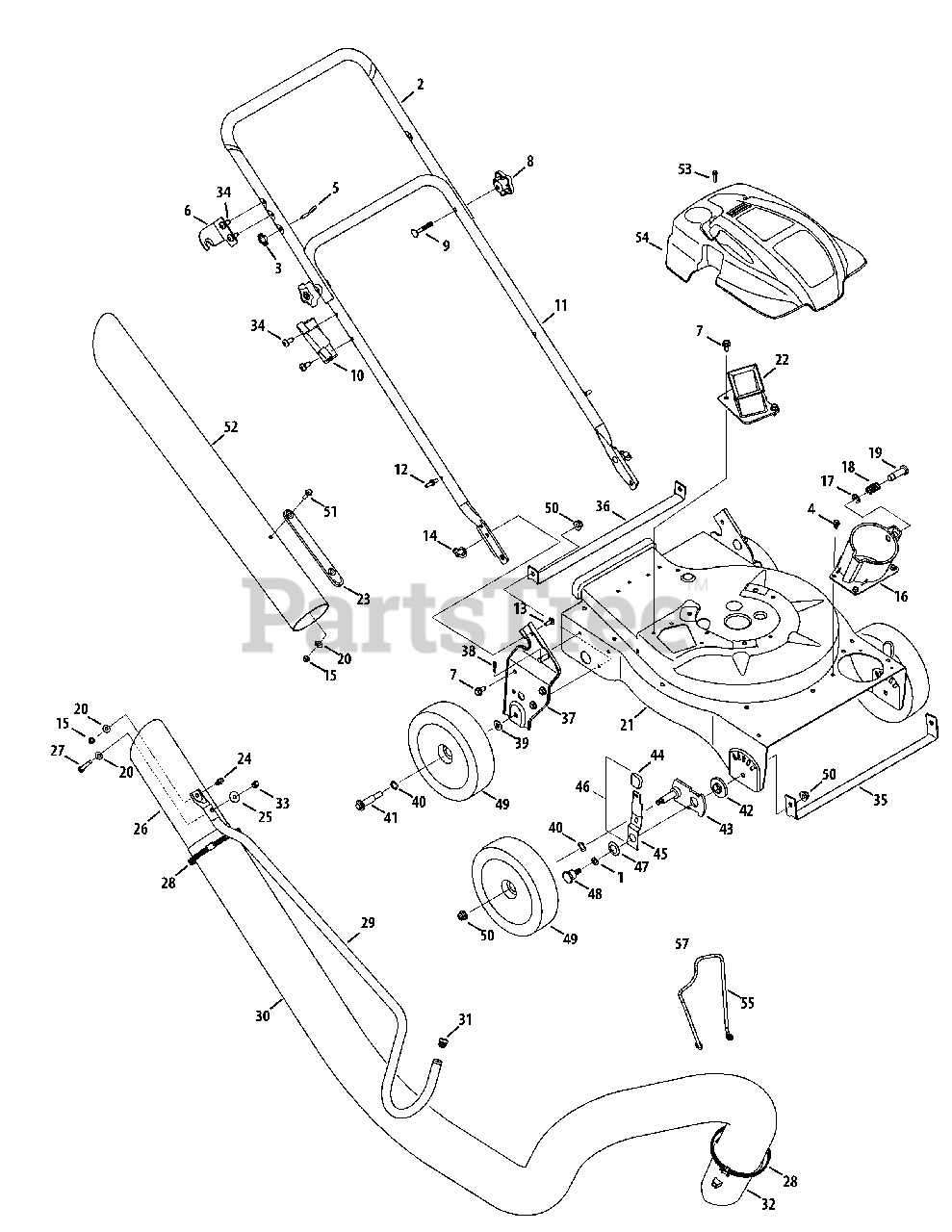

CSV060 General Assembly Parts Diagram

  • Title

1

Troy-Bilt 936-0314

Thrust Washer.375 ID x.70 OD
(Superseded to 736-0314)

$

$

Not available

2

Troy-Bilt 749-04172-0637

Upper Handle

$39.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 781-1056-0637

Upper Handle Bracket

$24.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 710-0726

Hex Cap Screw 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 731-04911

Nozzle Handle Clip

$11.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 749-04165-0637

Lower Handle

$43.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 711-1293

Studs

$4.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 710-0703

Carriage Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-0397A

Wing Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 912-0291

Hex Lock Nut, 1/4-20
(Superseded to 712-0291)

$

$

Not available

16

Troy-Bilt 681-0195

Hose Base Adapter Assembly

Note: (Incl. Ref.# 17-19)

$40.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 916-0104

E Ring.500 Dia

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 932-3035

Compression Spring

$11.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 711-1571

Clevis Pin

$8.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 936-3020

Flat Washer.271 ID x.630 OD
(Superseded to 736-3020)

$

$

Not available

21

Troy-Bilt 781-04223-0638

Upper Flail Housing

$200.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 681-04088-0638

Chipper Chute Assembly

$75.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 723-04008A

Chute Strap

$9.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 911-04069

Pin

$8.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 748-0457

Spacer

$5.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 731-2478

Hose Nozzle
(Superseded to 731-2478A)

$77.99

$

In Stock, only 4 left!

0

27

Troy-Bilt 710-3288

Hex Cap Screw 1/4-20 x 2.625

$6.99

$

In Stock, Qty 12

0

28

Troy-Bilt 723-0295

Adjustment Clamp

$10.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 749-1270A

Nozzle Handle

Variations

Troy-Bilt 749-1270A-0637

HANDLE-NOZZLE CSV - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 764-0648A

Vacuum Hose

$165.99

$

In Stock, only 3 left!

0

31

Troy-Bilt 720-0369

Handle Plug

$13.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 731-2292

Hose Adapter, Briggs

Note: 24A-060C Models

$40.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 731-06469

Hose Adapter, 173CC

Note: 24A-06MMModels

$39.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 912-0442

Cap Lock Nut, 1/4-20
(Superseded to 712-0442)

$

$

Not available

34

Troy-Bilt 710-1611B

TT Screw, 5/16-18 x .750

$6.99

$

In Stock, only 2 left!

0

35

Troy-Bilt 781-04082-0637

Front Wheel Support Brace

$28.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 781-04081-0637

Rear Wheel Support Brace

$27.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 981-0156A-0638

Handle Bracket Ass’y RH

$42.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 981-0155A-0638

Handle Brkt Ass’y LH

$42.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 736-0105

Bell Washer.401 ID x.870 OD

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 936-0232

Wave Washer.531 ID x.781 OD
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

41

Troy-Bilt 738-1015

Shoulder Screw 3/8-16

$10.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 741-04242

Height Adjustment Bearing

$7.49

$

Usually ships in 3-6 days

0

43

Troy-Bilt 687-02342

Pivot Arm Assembly

$15.99

$

In Stock, only 2 left!

0

44

Troy-Bilt 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

45

Troy-Bilt 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

46

Troy-Bilt 987-02051

Height Lever Assembly
(Superseded to 687-02051)

Note: (Incl. Ref.# 44-45)

$

$

Not available

47

Troy-Bilt 736-0741

Bell Washer.760 ID x.25 OD

$4.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 738-1172

Shoulder Screw,.750 x.500

$5.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 734-04033

Wheel 8 x 2
(Superseded to 753-08091)

$46.99

$

In Stock, Qty 13

0

50

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 710-04666

Screw, 1/4-20 x .75

$6.99

$

In Stock, only 3 left!

0

52

Troy-Bilt 731-06445

Hose Extension

$40.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 710-04744

Screw, #12-16 x 1.00

$5.49

$

In Stock, Qty 11

0

54

Troy-Bilt 931-04261

Engine Shroud

$

$

Not available

55

Troy-Bilt 747-04985

Tube Holder

Note: If Equipped

$25.99

$

Usually ships in 3-6 days

0
