CSV 050 (24B-05MP710) - Cub Cadet Chipper/Shredder/Vacuum (2018) Hose Parts Diagram

Chipper/Shredder/Vacuum

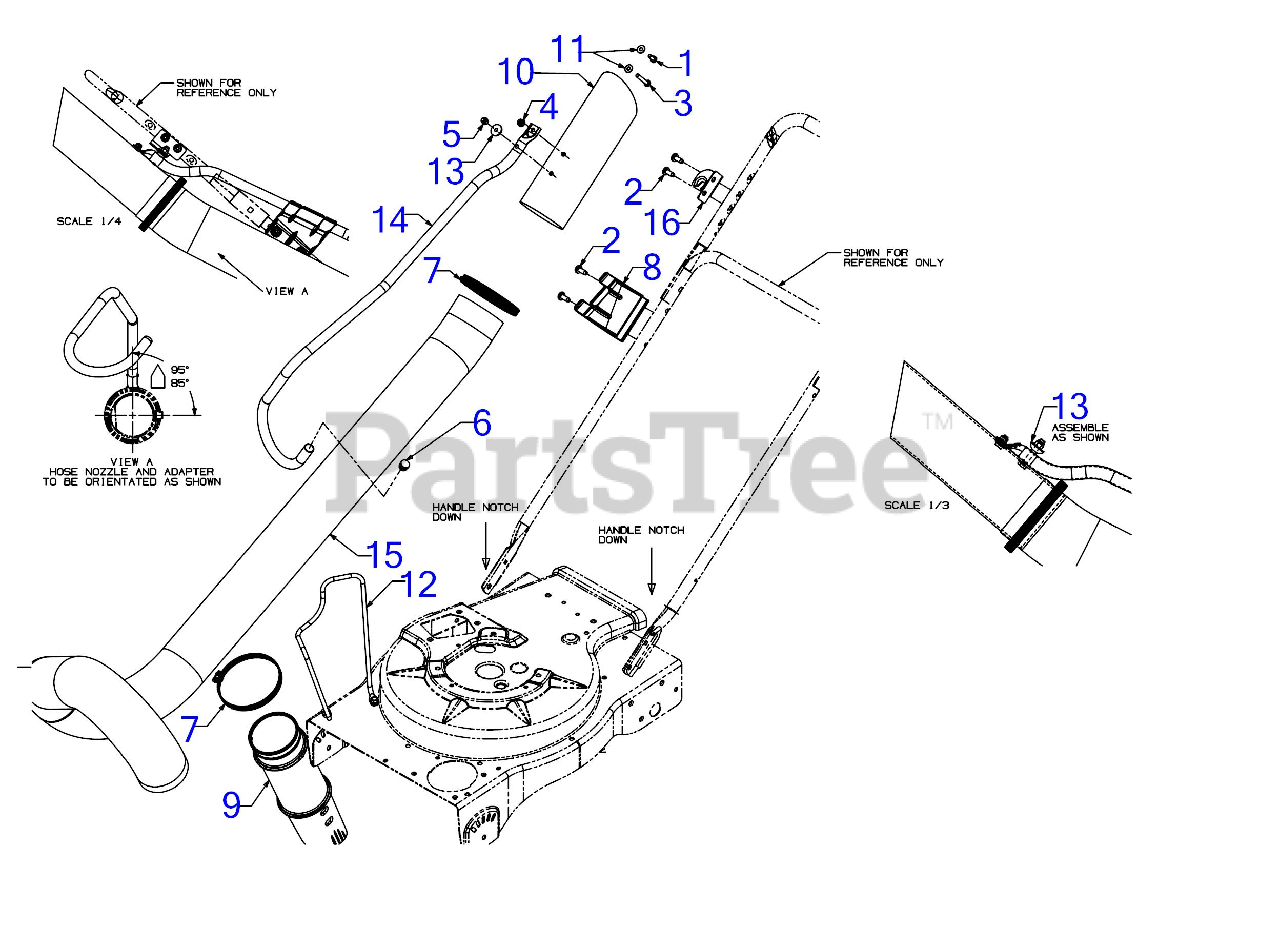

Hose Parts Diagram

  • Title

1

Cub Cadet 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-1611B

SCREW 5/16-18 x .750

$6.99

$

In Stock, only 2 left!

0

3

Cub Cadet 710-3288

BOLT 1/4-20X1.62 GR5

$6.99

$

In Stock, Qty 12

0

4

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 912-0442

HEX ACORN NUT
(Superseded to 712-0442)

$

$

Not available

6

Cub Cadet 720-0369

HANDLE PLUG

$13.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 723-0295

HOSE CLAMP

$10.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-04911

CLIP-HANDLE NOZZ

$11.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 731-06469

VAC HOSE ADAPTER

$39.99

$

In Stock, only 1 left!

0

10

Cub Cadet 731-2478

HOSE NOZZLE 3.875
(Superseded to 731-2478A)

$77.99

$

In Stock, only 4 left!

0

11

Cub Cadet 936-3020

FLAT WASHER .271:.630:.065
(Superseded to 736-3020)

$

$

Not available

12

Cub Cadet 747-04985

HOLDER ROD

$25.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 748-0457

HOSE HANGER SPACER

$5.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 749-1270A

NOZZLE HANDLE

Variations

Cub Cadet 749-1270A-0637

Nozzle Handle, CSV - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 764-0648A

VACUUM HOSE 4.0 x 75.0

$165.99

$

In Stock, only 3 left!

0

16

Cub Cadet 781-1056-0637

UPPER HANDLE BRACKET

$24.99

$

In Stock, only 1 left!

0
