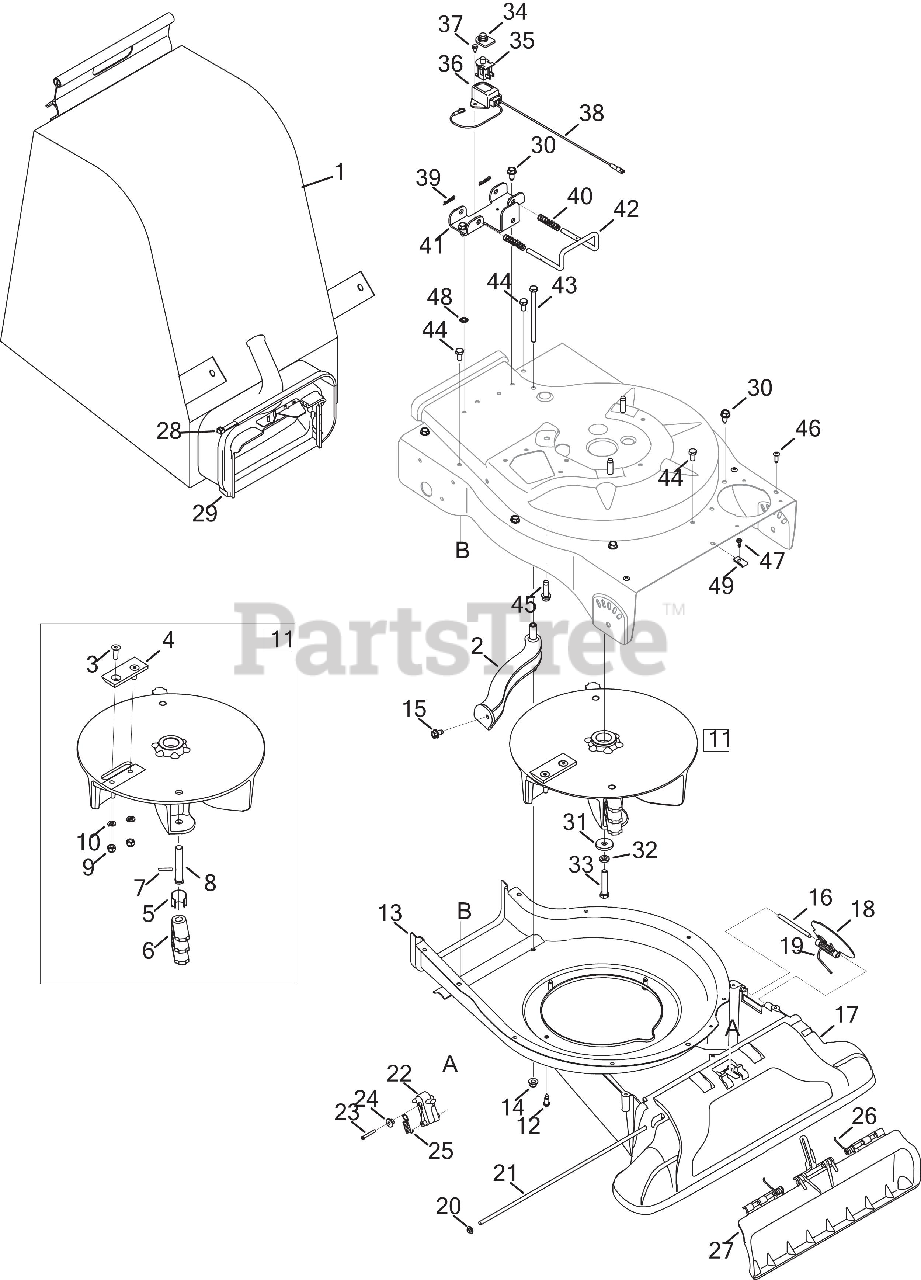

CSV 050 (24B-05MP056) - Cub Cadet Chipper/Shredder/Vacuum (2015) Bagger & Impeller Parts Diagram

Chipper/Shredder/Vacuum

Bagger & Impeller Parts Diagram

  • Title
1

Cub Cadet 664-04040

Bag Assembly (incl. Ref 28)

$229.99

$

In Stock, Qty 11

0

2

Cub Cadet 681-0154-0637

Screen Assembly

$48.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-1054

Hex Screw 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 981-0490

Chipper Blade

$30.99

$

In Stock, Qty 8

0

5

$4.49

$

In Stock, Qty 20+

0

$31.99

$

In Stock, only 4 left!

0

7

Cub Cadet 715-0166

Spiral Pin

$6.99

$

In Stock, Qty 19

0

8

Cub Cadet 711-1401

Clevis Pin

$9.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 912-0411

Lock Nut, 5/16-24
(Superseded to 712-0411)

$

$

Not available

10

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 981-0152

Impeller Assembly (Incl. Ref.# 3 – 10)

$534.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-1650

Shoulder Screw, #12-24 x.30 x.46

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 781-0721B-4021

Lower Flail Housing

$157.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0607

Screw, 5/16-18 x.500

$6.99

$

In Stock, Qty 9

0

16

$6.99

$

Usually ships in 3-6 days

0

$199.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 781-1064

Base Adapter Door

$36.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-1156

Torsion Spring

$4.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 926-0106

Cap Speed Nut 1/4
(Superseded to 726-0106)

$

$

Not available

21

Cub Cadet 711-1551

Pivot Rod

$12.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 731-2485A

Nozzle Door Lever

$12.99

$

In Stock, only 1 left!

0

23

Cub Cadet 710-1256

Hex Screw, #8-18 x 1.25

$5.99

$

In Stock, only 2 left!

0

24

Cub Cadet 750-1294

Shoulder Spacer

$13.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 732-3118

Extension Spring

$10.99

$

In Stock, only 1 left!

0

26

Cub Cadet 732-1151A

Nozzle Door Torsion Spring

$4.99

$

In Stock, only 2 left!

0

27

Cub Cadet 731-2294A

Nozzle Door

$42.99

$

In Stock, Qty 6

0

28

Cub Cadet 726-0288

Tie Strap, 42”

$14.99

$

In Stock, only 2 left!

0

29

Cub Cadet 631-0083

Chute Assembly
(Superseded to 631P0083A)

$107.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-0726

Hex Index Screw, 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0247

Flat Washer.375 ID x 1.25 OD

$9.49

$

In Stock, Qty 12

0

32

Cub Cadet 936-0217

Lock Washer 3/8
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 6

0

33

Cub Cadet 710-0818

Hex Cap Screw 3/8-24 x 2.0

$6.99

$

In Stock, only 1 left!

0

34

Cub Cadet 925-1700

Switch Cover

$11.99

$

In Stock, only 1 left!

0

35

Cub Cadet 925-3166

Safety Switch

$16.99

$

In Stock, Qty 20+

0

36

Cub Cadet 931-1613

Safety Switch Cover

$10.99

$

In Stock, only 1 left!

0

37

Cub Cadet 910-0224

Hex Washer Screw #10-16 x.50

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 629-0920A

Wire Harness

$41.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 732-0962

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 781-0778A-0637

Mounting Bracket

$17.99

$

Usually ships in 3-6 days

0

42

$16.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 710-3195

Hex Cap Screw 5/16-18 x 4.5

$7.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 710-3025

Hex Cap Screw 5/16-18 x.625

$3.99

$

In Stock, Qty 8

0

45

Cub Cadet 710-0654A

Hex Washer Screw 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 710-1220

Screw, #12-16 x.750

$4.99

$

In Stock, only 4 left!

0

47

Cub Cadet 710-0351

Screw #10 - 16 x.500

$4.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 736-0607

External L-Washer 5/16

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 726-0139

Speed Nut

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet 723-0400

Safety Glasses (Not Shown)

$26.99

$

Usually ships in 3-6 days

0
