CSV 050 (24A-05MP710) - Cub Cadet Chipper/Shredder/Vacuum (2015) CSV050 General Assembly Parts Diagram

Chipper/Shredder/Vacuum

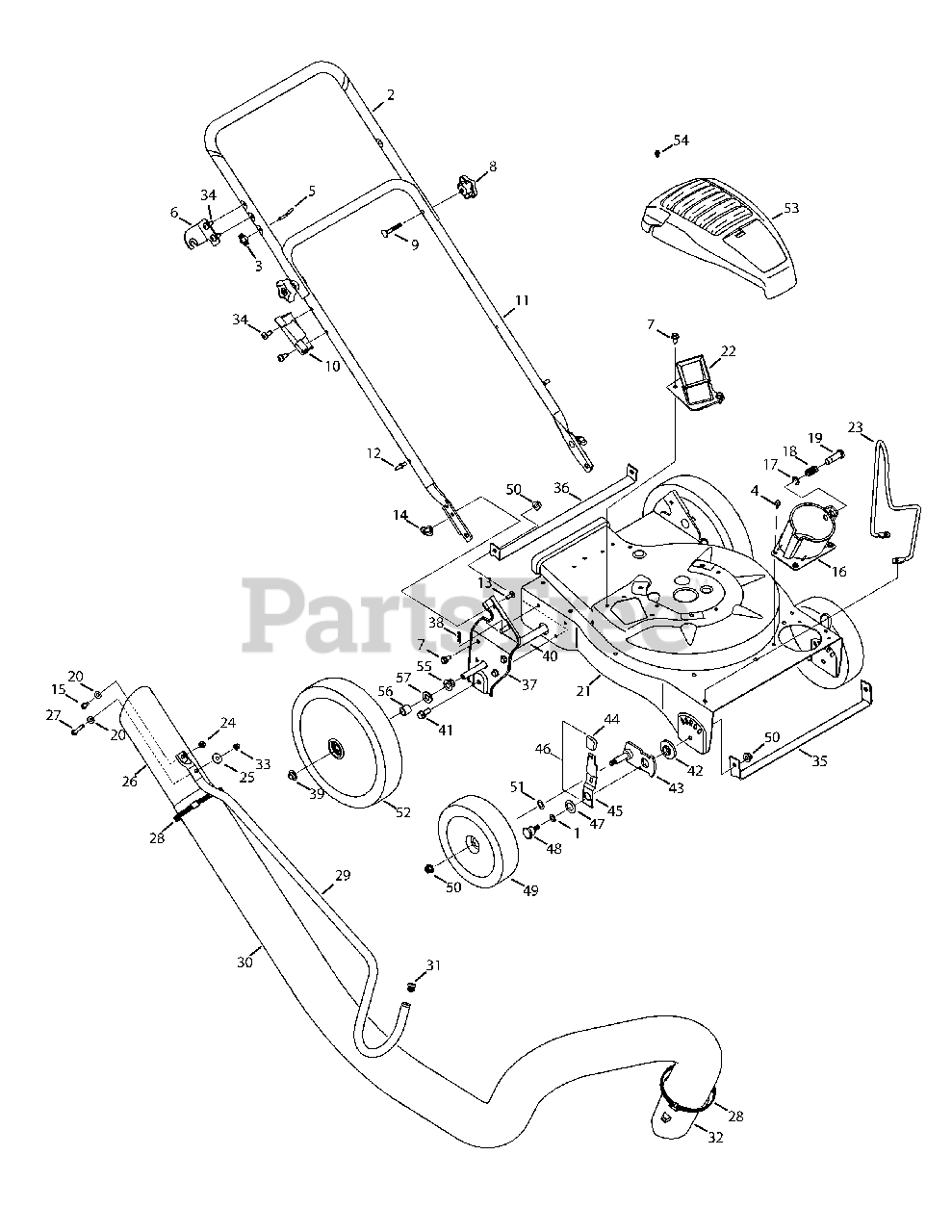

CSV050 General Assembly Parts Diagram

  • Title

1

Cub Cadet 936-0314

Thrust Washer.375 ID x.70 OD
(Superseded to 736-0314)

$

$

Not available

2

Cub Cadet 749-04172-0637

Upper Handle

$39.99

$

In Stock, only 1 left!

0

3

Cub Cadet 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 781-1056-0637

Upper Handle Bracket

$24.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-0726

Hex Cap Screw 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

10

Cub Cadet 731-04911

Nozzle Handle Clip

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 749-04165-0637

Lower Handle

$43.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 711-06418

Studs

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0703

Carriage Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0397A

Wing Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0751

Hex Cap Screw 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 681-0195

Hose Base Adapter Assembly (Incl. Ref.# 17-19)

$40.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 916-0104

E Ring.500 Dia

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 932-3035

Compression Spring

$11.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 711-1571

Clevis Pin

$8.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 936-3020

Flat Washer.271 ID x.630 OD
(Superseded to 736-3020)

$

$

Not available

21

Cub Cadet 781-04223-4021

Upper Flail Housing

$186.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 681-04088-4021

Chipper Chute Assembly

$75.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 747-04985

Hose Cradle

$25.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 748-0457

Spacer

$5.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 731-2478

Hose Nozzle
(Superseded to 731-2478A)

$77.99

$

In Stock, only 4 left!

0

27

Cub Cadet 710-3288

Hex Cap Screw 1/4-20 x 2.625

$6.99

$

In Stock, Qty 12

0

28

Cub Cadet 723-0295

Adjustment Clamp

$10.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 749-1270A

Nozzle Handle

Variations

Cub Cadet 749-1270A-0637

Nozzle Handle, CSV - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 764-0648A

Vacuum Hose

$165.99

$

In Stock, only 3 left!

0

31

Cub Cadet 720-0369

Handle Plug

$13.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 731-06469

Hose Adapter

$39.99

$

In Stock, only 1 left!

0

33

Cub Cadet 912-0442

Cap Lock Nut, 1/4-20
(Superseded to 712-0442)

$

$

Not available

34

Cub Cadet 710-1611B

TT Screw, 5/16-18 x .750

$6.99

$

In Stock, only 2 left!

0

35

Cub Cadet 781-04082-0637

Front Wheel Support Brace

$28.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 781-04081-0637

Rear Wheel Support Brace

$27.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 981-0156A-4021

Handle Bracket Ass’y RH

$45.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 981-0155A-4021

Handle Brkt Ass’y LH

$45.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 726-0299

Push Cap

$8.49

$

In Stock, Qty 20+

0

40

Cub Cadet 711-04908

Axle

$19.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-04482

HHflg, 3/8-16 x .875

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 741-04242

Height Adjustment Bearing

$7.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 687-02342

Pivot Arm Assembly

$15.99

$

In Stock, only 2 left!

0

44

Cub Cadet 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

45

Cub Cadet 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

46

Cub Cadet 987-02051

Height Lever Assembly (Incl. Ref.# 44-45)
(Superseded to 687-02051)

$

$

Not available

47

Cub Cadet 736-0741

Bell Washer.760 ID x.25 OD

$4.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 738-1172

Shoulder Screw,.750 x.500

$5.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 634-04347

Front Wheel

$48.99

$

In Stock, only 2 left!

0

50

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 936-0232

Washer, Wave, .531 x .781 x .013
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

52

Cub Cadet 634-04367

Rear Wheel

$50.99

$

In Stock, only 2 left!

0

53

Cub Cadet 731-09094B

Engine Shroud

$26.99

$

In Stock, Qty 5

0

54

Cub Cadet 710-04509

Screw, #10-16 x 1.25

$3.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 741-04108

Brg. Flg, Hex

$5.99

$

In Stock, Qty 11

0

56

Cub Cadet 748-0190

Spacer

$6.49

$

In Stock, Qty 11

0

57

Cub Cadet 936-0369

Washer, Flat, .508ID x 1.00 OD
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0
