CSV 050 (24A-05MM756) - Cub Cadet Chipper/Shredder/Vacuum (2008) General Assembly Parts Diagram

Chipper/Shredder/Vacuum

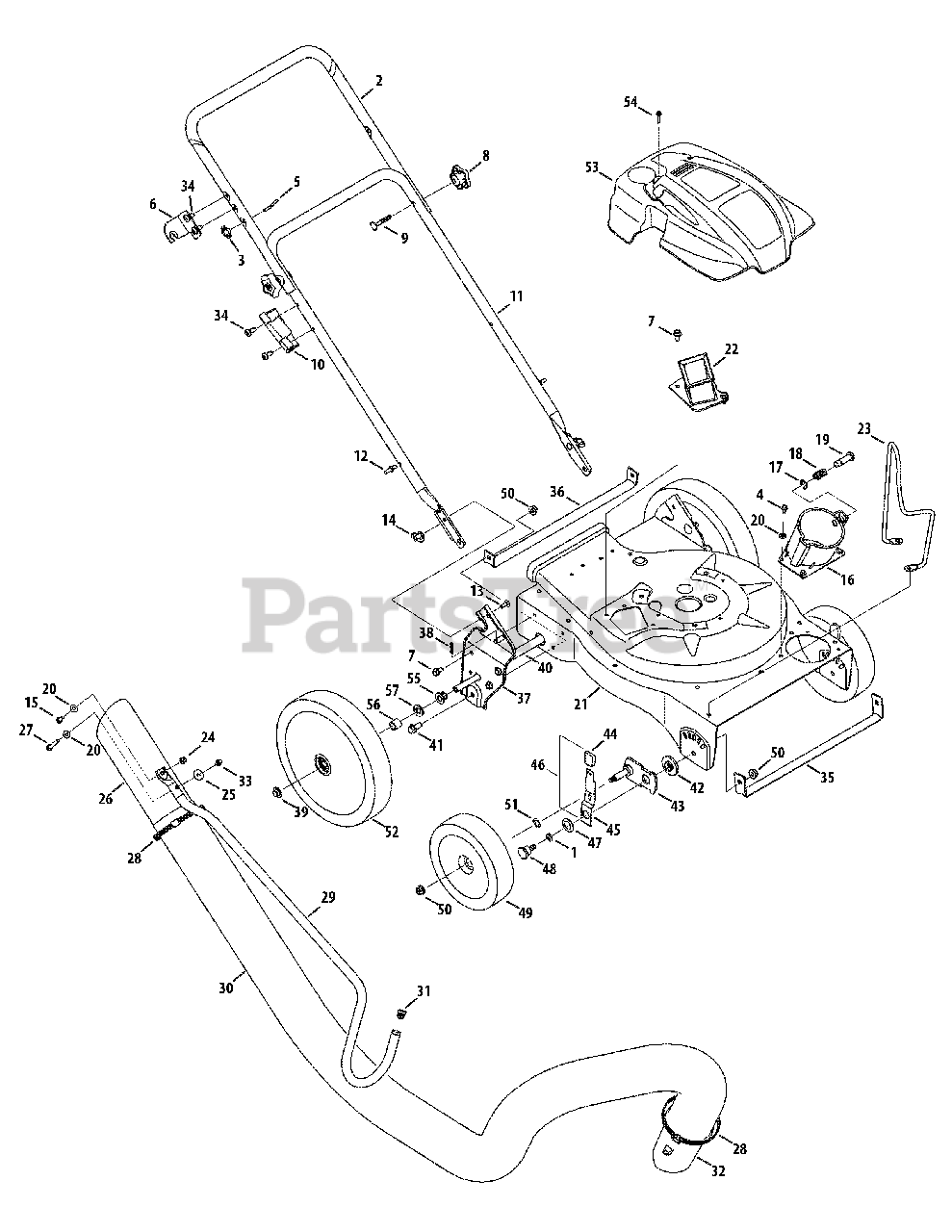

General Assembly Parts Diagram

  • Title

1

Cub Cadet 736-0314

Thrust Washer.375 ID x.70 OD

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 749-04172

Upper Handle
(Superseded to 749-04172-0637)

Variations

Cub Cadet 749-04172-0637

Upper Handle - POWDER BLACK (0637)

$39.99

$

In Stock, only 1 left!

0

$39.99

$

In Stock, only 1 left!

0

3

Cub Cadet 720-0279

Knob

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0599

Screw, 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1205

Eye Bolt

$3.99

$

In Stock, only 3 left!

0

6

Cub Cadet 781-1056

Upper Handle Bracket
(Superseded to 781-1056-0637)

Variations

Cub Cadet 781-1056-0637

Handle Bracket, Upper - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-0726

Hex Cap Screw 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

10

Cub Cadet 731-04911

Nozzle Handle Clip

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 749-04165

Lower Handle
(Superseded to 749-04165-0637)

Variations

Cub Cadet 749-04165-0637

Lower Handle, Black - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 711-1293

Studs

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0703

Carriage Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 15

0

14

Cub Cadet 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0751

Hex Cap Screw 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 681-0195

Hose Base Adapter Assembly

Note: (Incl. Ref.# 17-19)

$40.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 716-0104

E Ring.500 Dia
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 15

0

18

Cub Cadet 732-3035

Compression Spring
(Superseded to 932-3035)

$11.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 711-1571

Clevis Pin

$8.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-3020

Flat Washer.271 ID x.630 OD

$6.99

$

In Stock, Qty 9

0

21

Cub Cadet 781-04223

Upper Flail Housing

Variations

Cub Cadet 781-04223-0638

HOUSING-FLAIL UPPER - MTD/TROY-BILT RED (0638)

$200.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-04223-0665

HOUSING-FLAIL UPPER - YARDMAN GREEN (0665)

$174.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-04223-4021

HOUSING-FLAIL UPPER - CUB YELLOW 2 (4021)

$186.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-04223-4044

HOUSING-FLAIL UPPER - CRAFTSMAN RED (4044)

$200.99

$

Usually ships in 3-6 days

0

$162.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 681-04088

Chipper Chute Assembly

Variations

Cub Cadet 681-04088-0638

CHUTE ASM-CHIPPER - MTD/TROY-BILT RED (0638)

$75.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-04088-0709

CHUTE ASSY-CHIPPER - MASTERCRAFT GREEN (0709)

$75.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-04088-0691

CHUTE ASM-CHIPPER - BLACK JACK (0691)

$84.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-04088-0721

USE 681-04088-4044 CHUTE ASM- - SEARS RED (0721)

$75.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-04088-4021

CHUTE ASSY-CHIPPER - CUB YELLOW 2 (4021)

$75.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-04088-4044

CHUTE ASM-CHIPPER - CRAFTSMAN RED (4044)

$75.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 747-04985

Hose Cradle

$25.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 748-0457

Spacer

$5.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 731-2478

Hose Nozzle
(Superseded to 731-2478A)

$77.99

$

In Stock, only 1 left!

0

27

Cub Cadet 710-3288

Hex Cap Screw 1/4-20 x 2.625

$6.99

$

In Stock, Qty 12

0

28

Cub Cadet 723-0295

Adjustment Clamp

$10.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 749-1270A

Nozzle Handle

Variations

Cub Cadet 749-1270A-0637

Nozzle Handle, CSV - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 764-0648A

Vacuum Hose

$165.99

$

In Stock, only 4 left!

0

31

Cub Cadet 720-0369

Handle Plug

$13.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 731-06469

Hose Adapter

$39.99

$

In Stock, only 1 left!

0

33

Cub Cadet 712-0442

Cap Lock Nut, 1/4-20

$6.99

$

In Stock, only 4 left!

0

34

Cub Cadet 710-1611B

TT Screw, 5/16-18 x .750

$6.99

$

In Stock, only 2 left!

0

35

Cub Cadet 781-04082

Front Wheel Support Brace
(Superseded to 781-04082-0637)

Variations

Cub Cadet 781-04082-0637

BRACE-SUPT WHL FRT - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 781-04081

Rear Wheel Support Brace
(Superseded to 781-04081-0637)

Variations

Cub Cadet 781-04081-0637

BRACE-SUPT WHL RR - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 681-0156A

Handle Bracket Ass’y RH
(Superseded to 981-0156A)

Variations

Cub Cadet 681-0156A-0721

USE 981-0156A-4044 BRACKET AS - SEARS RED (0721)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0156A-4044

USE 981-0156A-4044 BRACKET AS - CRAFTSMAN RED (4044)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0156A-0637

USE 981-0156A-0637 BRACKET AS - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0156A-0638

USE 981-0156A-0638 BRACKET AS - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0156A-0662

USE 981-0156A-0662 BRACKET AS - OYSTER GRAY (0662)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0156A-0665

USE 981-0156A-0665 BRACKET AS - YARDMAN GREEN (0665)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0156A-0689

USE 981-0156A-0689 BRACKET AS - POLO GREEN (0689)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0156A-0691

USE 981-0156A-0691 BRKT ASM-H - BLACK JACK (0691)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0156A-0709

USE 981-0156A-0709 BRACKET AS - MASTERCRAFT GREEN (0709)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0156A-0716

USE 981-0156A-0716 BRACKET AS - CUB YELLOW-99 (0716)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0156A-4021

USE 981-0156A-4021 BRACKET AS - CUB YELLOW 2 (4021)

$45.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 681-0155A

Handle Brkt Ass’y LH
(Superseded to 981-0155A)

Variations

Cub Cadet 681-0155A-0637

USE 981-0155A-0637 BRACKET AS - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0155A-0638

USE 981-0155A-0638 BRACKET AS - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0155A-0662

USE 981-0155A-0662 BRACKET AS - OYSTER GRAY (0662)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0155A-0665

USE 981-0155A-0665 BRACKET AS - YARDMAN GREEN (0665)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0155A-0689

USE 981-0155A-0689 BRACKET AS - POLO GREEN (0689)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0155A-0691

USE 981-0155A-0691 BRKT ASM-H - BLACK JACK (0691)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0155A-0709

USE 981-0155A-0709 BRACKET AS - MASTERCRAFT GREEN (0709)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0155A-0716

USE 981-0155A-0716 BRACKET AS - CUB YELLOW-99 (0716)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0155A-0721

USE 981-0155A-4044 BRACKET AS - SEARS RED (0721)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0155A-4021

USE 981-0155A-4021 BRACKET AS - CUB YELLOW 2 (4021)

$45.99

$

Usually ships in 3-6 days

0

Cub Cadet 681-0155A-4044

USE 981-0155A-4044 BRACKET AS - CRAFTSMAN RED (4044)

$42.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 726-0299

Push Cap

$8.49

$

In Stock, Qty 20+

0

40

Cub Cadet 711-04908

Axle

$19.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-04482

HHg, 3/8-16 x .875

$4.49

$

In Stock, Qty 16

0

42

Cub Cadet 741-04242

Height Adjustment Bearing

$7.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 687-02342

Pivot Arm Assembly

$15.99

$

In Stock, only 2 left!

0

44

Cub Cadet 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

45

Cub Cadet 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

46

Cub Cadet 687-02051

Height Lever Assembly

Note: (Incl. Ref.# 44-45)

$9.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 736-0741

Bell Washer.760 ID x.25 OD

$4.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 738-1172

Shoulder Screw,.750 x.500

$5.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 634-04347

Front Wheel

$48.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0232

Washer, Wave, .531 x .781 x .013

$4.99

$

In Stock, Qty 12

0

52

Cub Cadet 634-04367

Rear Wheel

$50.99

$

In Stock, only 1 left!

0

53

Cub Cadet 631-04232A

Engine Shroud
(Superseded to 931-04232B)

$63.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-04744

Screw, #12-16 x 1.00

$5.49

$

In Stock, Qty 11

0

55

Cub Cadet 741-04108

Brg. Flg, Hex

$5.99

$

In Stock, only 2 left!

0

56

Cub Cadet 748-0190

Spacer

$6.49

$

In Stock, only 1 left!

0

57

Cub Cadet 736-0369

Washer, Flat, .508ID x 1.00 OD

$4.49

$

In Stock, Qty 8

0
