CSV 050 (24A-05MM710) - Cub Cadet Chipper/Shredder/Vacuum (2008) Engine Assembly Parts Diagram

Chipper/Shredder/Vacuum

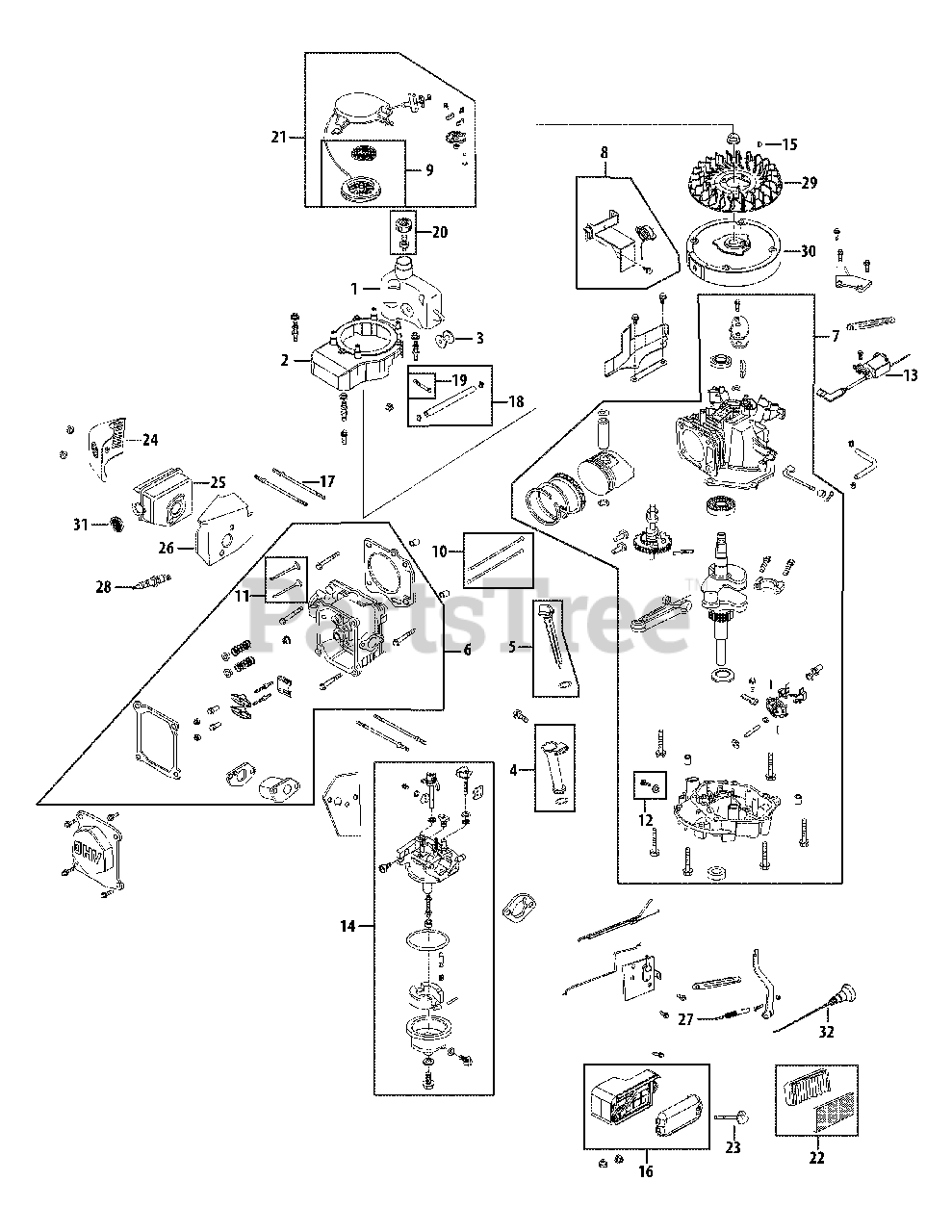

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 751-10368

Fuel Tank
(Superseded to 951-12739)

$61.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 751-10369

Flywheel Shroud
(Superseded to 951-10369)

$53.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 751-10335

Rubber Fuel Tank Mounting Washer
(Superseded to 951-10335)

$5.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 751-10334

Oil Filler Tube Assembly
(Superseded to 951-10334)

$22.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 751-10852

Dipstick Assembly
(Superseded to 951-10852)

$

$

Not available

6

Cub Cadet 751-10413

Cylinder Head Complete
(Superseded to 951-10413B)

$187.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 751-10932

Short Block Assembly

$

$

Not available

8

Cub Cadet 751-10936

On/Off Switch and Bracket Assembly
(Superseded to 951-10936)

$

$

Not available

9

Cub Cadet 751-10319

Recoil Spring and Pulley Assembly
(Superseded to 951-10319)

$47.99

$

In Stock, only 3 left!

0

10

Cub Cadet 751-10344

Push Rod Kit
(Superseded to 951-10344)

$18.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 751-10345

Valve Kit
(Superseded to 951-10345)

$65.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 751-10370

Oil Drain Plug and Washer Assembly
(Superseded to 951-10370)

$9.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 751-10931

Ignition Coil
(Superseded to 951-10931)

$

$

Not available

14

Cub Cadet 751-10929

Carburetor Assembly
(Superseded to 951-10929)

$96.99

$

In Stock, only 1 left!

0

15

Cub Cadet 751-10307

Flywheel Key
(Superseded to 951-10307)

$2.49

$

In Stock, Qty 10

0

16

Cub Cadet 751-10412A

Air Cleaner Housing Assembly Complete
(Superseded to 951-10412B)

$39.99

$

In Stock, only 4 left!

0

17

Cub Cadet 751-10342

Muffler Stud Assembly
(Superseded to 951-10342)

$9.99

$

In Stock, Qty 10

0

18

Cub Cadet 751-10364

Fuel Line Kit
(Superseded to 951-10364)

Note: Inc. hoses, clamps & filter

$28.99

$

In Stock, only 1 left!

0

19

Cub Cadet 751-10358

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

20

Cub Cadet 751-10300

Fuel Cap Assembly
(Superseded to 951-10300)

$11.99

$

In Stock, Qty 10

0

21

Cub Cadet 751-10299

Recoil Starter Assembly
(Superseded to 951-10299A)

$69.99

$

In Stock, Qty 9

0

22

Cub Cadet 751-10298

Air Cleaner Kit
(Superseded to 951-10298)

$17.99

$

In Stock, Qty 20+

0

23

Cub Cadet 751-10297

Air Cleaner Thumb Screw
(Superseded to 951-10297)

$5.99

$

In Stock, only 2 left!

0

24

Cub Cadet 751-10411

Muffler Guard
(Superseded to 951-10411)

$31.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 751-10403

Muffler
(Superseded to 951-10403)

$82.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 751-10402

Muffler Gasket /Heat Shield
(Superseded to 951-10402)

$19.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 751-10387

Governor Return Spring
(Superseded to 951-10387)

$7.49

$

In Stock, Qty 10

0

28

Cub Cadet 751-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

29

Cub Cadet 751-10934

Cooling Fan
(Superseded to 951-10934)

$23.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 751-10935

Flywheel
(Superseded to 951-10935)

$

$

Not available

31

Cub Cadet 751-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 751-10933

Choke Control Knob
(Superseded to 951-10933)

$9.49

$

Usually ships in 3-6 days

0

Cub Cadet 952Z1P70C0

Engine - Complete
(Superseded to 759-04301)

Note: Not Shown

$

$

Not available

Cub Cadet 751-10930

Carburetor Kit - Major
(Superseded to 951-10930)

Note: Not Shown

$

$

Not available

Cub Cadet 751-10859

Cylinder Head Service Kit
(Superseded to 951-10870)

Note: Not Shown

$18.99

$

Usually ships in 3-6 days

0

Cub Cadet 751-10416

Gasket Kit - Complete
(Superseded to 951-10416A)

Note: Not Shown

$

$

Not available

Cub Cadet 751-10417

Gasket Kit - External
(Superseded to 951-10417A)

Note: Not Shown

$44.99

$

Usually ships in 3-6 days

0
