CSLT 5424 (13AQA2KW897) - Columbia 54" Lawn Tractor (2015) Steering Parts Diagram

54" Lawn Tractor

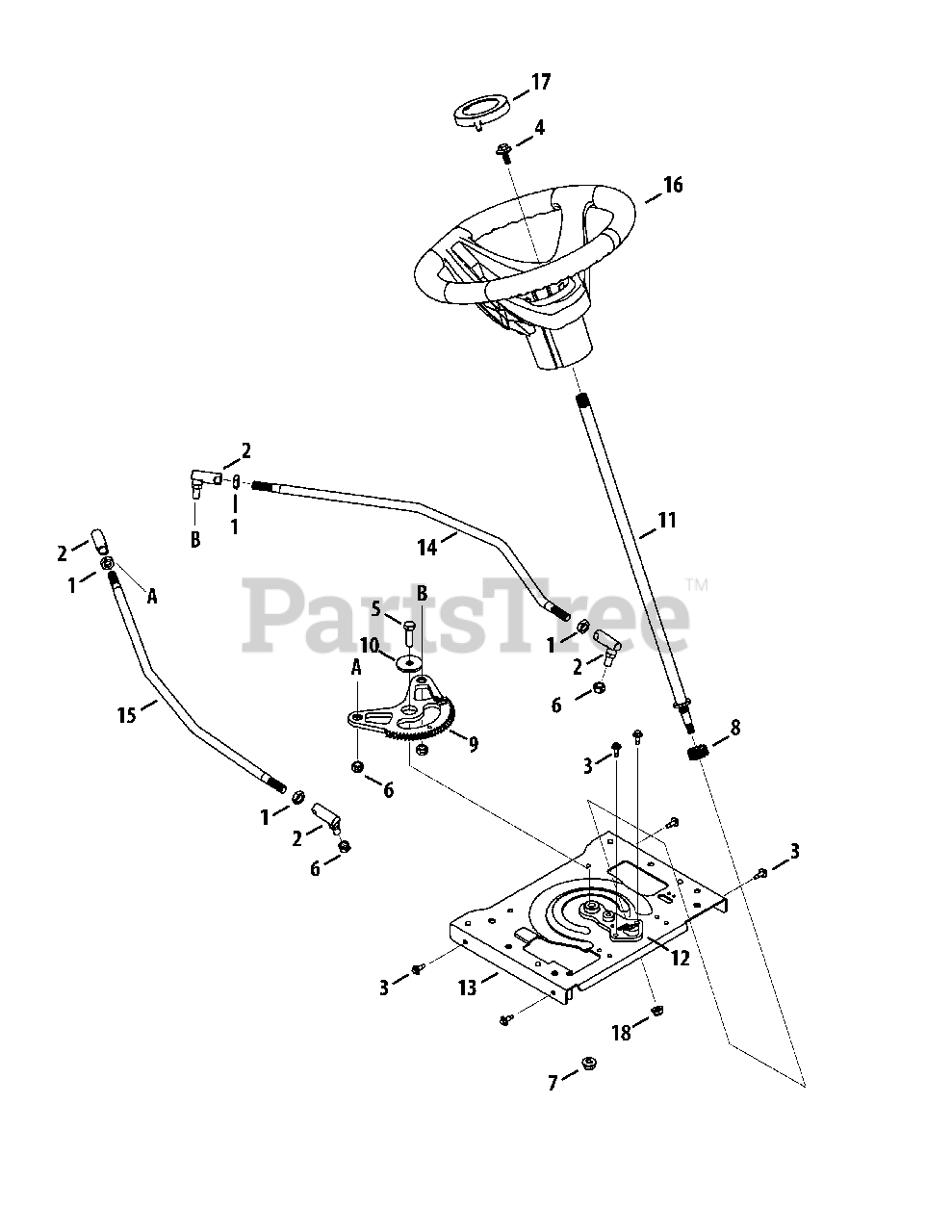

Steering Parts Diagram

  • Title

1

MTD 712-05093

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 12

0

2

MTD 723-05009

Ball Joint, 7/16-20, Lock

$20.99

$

In Stock, only 2 left!

0

3

MTD 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 8

0

4

MTD 710-06154B

Screw, 5/16-24 x .850

$4.49

$

In Stock, Qty 11

0

5

MTD 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

6

MTD 912-0214

Nut, Hex Lock, 3/8-24, Grb
(Superseded to 712-0214)

$6.49

$

In Stock, only 3 left!

0

7

MTD 712-04065

Nut, Flange Lock, 3/8-16, Grf,

$3.99

$

Usually ships in 3-6 days

0

8

MTD 717-05193A

Pinion Gear, 13T
(Superseded to 717-05193B)

$11.99

$

In Stock, only 4 left!

0

9

MTD 717-05225

Steering Gear
(Superseded to 717-05225C)

$72.99

$

In Stock, Qty 6

0

10

MTD 736-04294

Flat Washer, .390 x 2.490 x .119

$7.99

$

Usually ships in 3-6 days

0

11

MTD 738-05043

Shaft, Steering, .625 OD x 20

$55.99

$

Usually ships in 3-6 days

0

12

MTD 748-05071

Steering Support
(Superseded to 748-05071B)

$63.99

$

In Stock, only 1 left!

0

13

MTD 783-08386

Steering Mounting Plate
(Superseded to 783-08386B)

Variations

MTD 783-08386-0637

Steering Mounting Plate - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

14

MTD 747-06456

Steering Rod, LH

$33.99

$

In Stock, only 1 left!

0

15

MTD 747-06457

Steering Rod, RH

$33.99

$

Usually ships in 3-6 days

0

16

MTD 631-05102

Steering Wheel
(Superseded to 631-05102A)

$91.99

$

In Stock, only 1 left!

0

17

MTD 731-11161

Cap, Steering Wheel

$7.49

$

Usually ships in 3-6 days

0

18

MTD 712-04063

Nut, Flange Lock, 5/16-18, Grf

$3.99

$

In Stock, only 4 left!

0
