CSLT 24520 (7800345) - Snapper 52" Lawn Tractor, 24hp Main Frame Group Parts Diagram

52" Lawn Tractor, 24hp

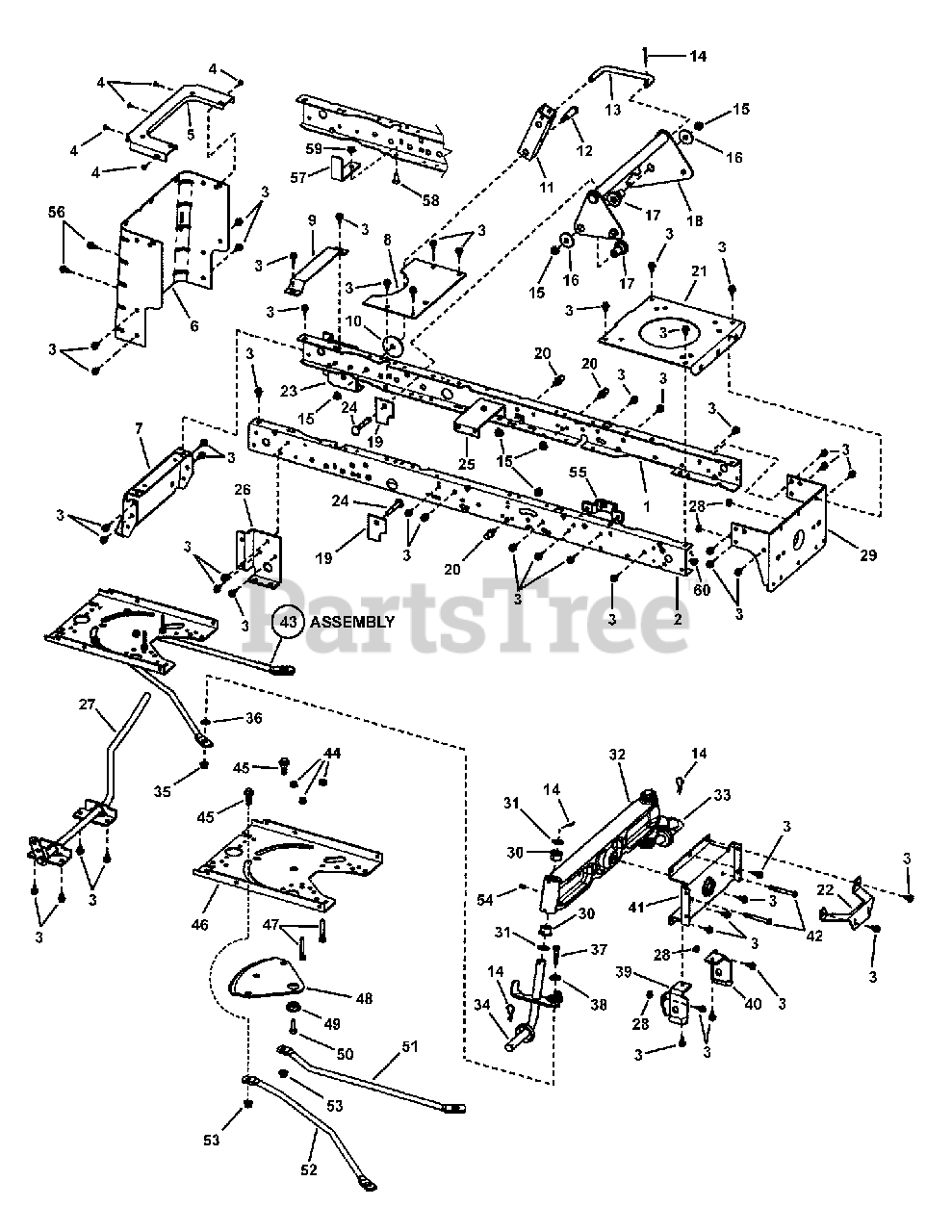

Main Frame Group Parts Diagram

  • Title

1

Snapper 7300869Z

RAIL, Frame LH
(Superseded to 7300869ZMA)

$46.99

$

In Stock, only 2 left!

0

2

Snapper 7300870Z

RAIL, Frame RH
(Superseded to 7300870ZMA)

$43.99

$

In Stock, only 2 left!

0

3

Snapper 722858

CAPSCREW, 5/16-18 Hex Washer Face
(Superseded to 26X249MA)

$

$

Not available

4

Snapper 7091286

SCREW, #10-24 x 1/2" Hex Washer Self-Tap SEMS
(Superseded to 7091286YP)

Note: or 729075

$4.99

$

In Stock, Qty 12

0

5

Snapper 7300876Z

TOP, Rear Plate
(Superseded to 7300876ZYP)

$25.99

$

Usually ships in 2-12 days

0

6

Snapper 7300866Z

PLATE, Rear
(Superseded to 7300866ZYP)

$74.99

$

Usually ships in 2-12 days

0

7

Snapper 7300864Z

PLATE, Hitch
(Superseded to 7300864ZMA)

$41.99

$

Usually ships in 2-12 days

0

8

Snapper 7300689

PLATE, Idler Pulley Hydro Gear
(Superseded to 7300689YP)

$32.99

$

Usually ships in 2-12 days

0

9

Snapper 7300741Z

BRACKET, Battery Support
(Superseded to 7300741ZMA)

$10.99

$

Usually ships in 2-12 days

0

10

Snapper 722616

WASHER, .406 x 2.25 Plain
(Superseded to 17X191MA)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 7300819Z

BRACKET, Pivot
(Superseded to 7300819ZMA)

$12.99

$

Usually ships in 2-12 days

0

12

Snapper 720099

BOLT, 3/8-16 x 1.563 Shoulder
(Superseded to 009X53MA)

$6.99

$

Usually ships in 2-12 days

0

13

Snapper 7300877Z

LINK, Handle Lift
(Superseded to 7300877ZMA)

$19.99

$

Usually ships in 2-12 days

0

14

Snapper 7091809

PIN, 1/8 x 1-1/4" Cotter, YZ
(Superseded to 7091809YP)

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock, YZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

16

Snapper 722603

WASHER, .391 ID x 1-1/4" OD
(Superseded to 17X168ZMA)

Note: or 7013866

$6.49

$

Usually ships in 2-12 days

0

17

Snapper 725131

SPACER, Lifter Pivot
(Superseded to 690151MA)

$6.99

$

Usually ships in 2-12 days

0

18

Snapper 7500525Z

WELDMENT, Lifter
(Superseded to 7500525ZMA)

$102.99

$

Usually ships in 2-12 days

0

19

Snapper 7300868Z

PLATE, Stiffening
(Superseded to 7300868ZMA)

$12.99

$

Usually ships in 2-12 days

0

20

Snapper 721221

PIN, Threaded Shoulder (3/8-16)
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

21

Snapper 7300863Z

PLATE, Engine
(Superseded to 7300863ZMA)

$34.99

$

Usually ships in 2-12 days

0

22

Snapper 7300817Z

BRACKET, Muffler Mounting
(Superseded to 7300817ZMA)

$11.99

$

Usually ships in 2-12 days

0

23

Snapper 7300830Z

BRACKET, Transaxle LH
(Superseded to 7300830ZYP)

$15.99

$

Usually ships in 2-12 days

0

24

Snapper 7091008

BOLT, 3/8-16 x 2-1/2" Round Head Short Square Neck
(Superseded to 7091008YP)

$4.99

$

In Stock, only 1 left!

0

25

Snapper 7500601Z

ASSY, Idler Brkt (Secondary)
(Superseded to 7500601ZYP)

$40.99

$

Usually ships in 2-12 days

0

26

Snapper 7300831Z

BRACKET, Transaxle RH
(Superseded to 7300831ZYP)

$14.99

$

Usually ships in 2-12 days

0

27

Snapper 7400237Z

WELDMENT - Brake Lever
(Superseded to 7400237ZYP)

$77.99

$

Usually ships in 2-12 days

0

28

Snapper 7092081

NUT, 5/16-24 Hex Flange Lock, BZ
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

29

Snapper 7300751Z

BRACKET, Hanger Rear
(Superseded to 7300751ZMA)

$54.99

$

Usually ships in 2-12 days

0

30

Snapper 725130

BEARING, SPINDLE
(Superseded to 690150MA)

$8.99

$

In Stock, only 2 left!

0

31

Snapper 7010935

WASHER, .77 x 1.13 x .06
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

32

Snapper 729160Z

GT AXLE, Cast Iron

$

$

Currently unavailable

33

Snapper 7400232Z

WELDMENT, Spindle LH
(Superseded to 7400232ZMA)

$204.99

$

In Stock, only 1 left!

0

34

Snapper 7400231Z

WELDMENT, Spindle RH
(Superseded to 7400231ZMA)

$

$

Not available

35

Snapper 720142

NUT, 3/8-16 Hex Flange, NC
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

36

Snapper 720166

FLAT WASHER, .41 x .82 x 16 GA
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

37

Snapper 720192

BOLT, 3/8-16 x 1-1/2" Hex, GR 5
(Superseded to 01X111MA)

$4.49

$

In Stock, only 1 left!

0

38

Snapper 722580

FLAT WASHER, 25/64 ID x 1" OD x 14 GA.
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

39

Snapper 7300861Z

HANGER, Deck RH
(Superseded to 7300861ZMA)

$10.99

$

Usually ships in 2-12 days

0

40

Snapper 7300860Z

HANGER, Deck LH
(Superseded to 7300860ZMA)

$

$

Not available

41

Snapper 7300742Z

HANGER, Axle
(Superseded to 7300742ZMA)

$37.99

$

Usually ships in 2-12 days

0

42

Snapper 720211

BOLT, 5/16-24 x 2-3/4" Hex Head
(Superseded to 01X146MA)

$3.99

$

Usually ships in 2-12 days

0

43

Snapper 7500524

ASSY, Sector Gear (Gear Drive - LT)
(Superseded to 7300867ZMA)

$

$

Not available

44

Snapper 7090585

NUT, 5/16-18 Hex Flange Lock, BZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

45

Snapper 720103

BOLT, 3/8-16 Shoulder
(Superseded to 009X57MA)

$9.99

$

In Stock, Qty 11

0

46

Snapper 7300867Z

PLATE, Steering Mount
(Superseded to 7300867ZMA)

$

$

Not available

47

Snapper 721293

SCREW, Guide (5/16-18)
(Superseded to 094384MA)

$4.49

$

Usually ships in 2-12 days

0

48

Snapper 721240

GEAR, Sector
(Superseded to 094121MA)

$

$

Not available

49

Snapper 721241

BEARING, Sector Gear
(Superseded to 094123MA)

$12.99

$

In Stock, only 1 left!

0

50

Snapper 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, GR 5, YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

51

Snapper 7101805Z

DRAG LINK, LH
(Superseded to 7101805BMYP)

$20.99

$

In Stock, only 1 left!

0

52

Snapper 7101806Z

DRAG LINK, RH
(Superseded to 7101806BMYP)

$20.99

$

Usually ships in 2-12 days

0

53

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock, YZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

54

Snapper 721095

FITTING, Lubrication (1/4-28 Self-Tap)
(Superseded to 092530MA)

$5.49

$

Usually ships in 2-12 days

0

55

Snapper 7300796Z

BRACKET, Bellcrank
(Superseded to 7300796ZMA)

$8.99

$

Usually ships in 2-12 days

0

56

Snapper 720353

SCREW, 3/8-16 x 3/4 Hex Washer Self-Tap
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

57

Snapper 7300960

GUIDE, Hydro Belt

$

$

Currently unavailable

58

Snapper 720018

BOLT, 5/16-18 x 5/8 Hex Head, GR 5
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

59

Snapper 7090951

NUT, 5/16-18 Hex Flange Center Lock
(Superseded to 704001)

Note: or 720139

$4.49

$

In Stock, Qty 13

0

60

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0
