CSLT 24520 (7800345) - Snapper 52" Lawn Tractor, 24hp Hood / Seat Group Parts Diagram

52" Lawn Tractor, 24hp

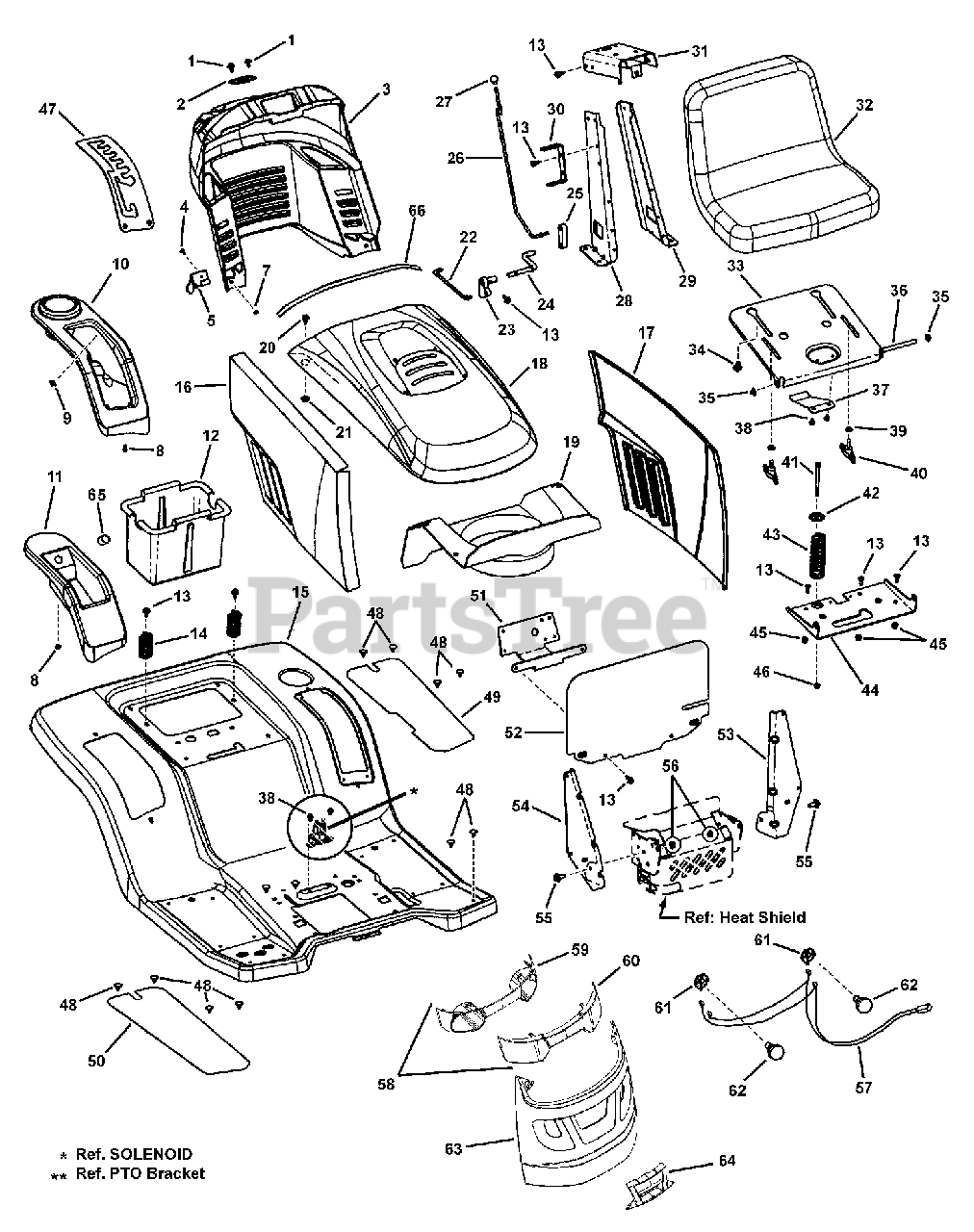

Hood / Seat Group Parts Diagram

  • Title

1

Snapper 7091016

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 7091016YP)

Note: w/loose captured washer

$4.49

$

In Stock, Qty 5

0

2

Snapper 721487

BEARING, Steering
(Superseded to 1001491MA)

$5.49

$

Usually ships in 2-12 days

0

3

Snapper 7101355

CONSOLE, Tractor
(Superseded to 7101355YP)

$202.99

$

Usually ships in 2-12 days

0

4

Snapper 1929477

SCREW, #10-24 x 1/2" Hex Washer Head (Taptite)
(Superseded to 1929477SM)

Note: or 1960392

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 1732031

HOOD GUIDE, RH
(Superseded to 1732031SM)

$7.49

$

In Stock, Qty 5

0

5

Snapper 1732030

HOOD GUIDE, LH (not shown)
(Superseded to 1732030SM)

$7.49

$

In Stock, only 2 left!

0

7

Snapper 1933896

NUT, #10-24 Hex Nyloc, BZ
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

8

Snapper 7090952

SCREW, 1/4-20 Thread Cutting
(Superseded to 7090952YP)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7101493

CUTTING HEIGHT INDICATOR
(Superseded to 7101493YP)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7101770

POD, W/ DETENT
(Superseded to 7101770YP)

$45.99

$

Usually ships in 2-12 days

0

11

Snapper 7101771

POD, W/ COMPARTMENT
(Superseded to 7101771YP)

$45.99

$

Usually ships in 2-12 days

0

12

Snapper 725181

CONTAINER, Battery
(Superseded to 690424MA)

$45.99

$

In Stock, only 1 left!

0

13

Snapper 722858

CAPSCREW, 5/16-18 Hex Washer Face
(Superseded to 26X249MA)

$

$

Not available

14

Snapper 722411

SPRING, Compression 2.43 Length
(Superseded to 164X30MA)

$15.99

$

Usually ships in 2-12 days

0

15

Snapper 7300677D

SEAT DECK
(Superseded to 7300677DYP)

$444.99

$

Usually ships in 2-12 days

0

16

Snapper 1727294D

PANEL, Hood RH Side
(Superseded to 1727294DSM)

$128.99

$

Usually ships in 2-12 days

0

17

Snapper 1727295D

PANEL, Hood LH Side
(Superseded to 1727295DSM)

$111.99

$

Usually ships in 2-12 days

0

18

Snapper 1722110D

HOOD, w/ Louvers
(Superseded to 1722110DSM)

$304.99

$

Usually ships in 2-12 days

0

19

Snapper 7102326

AIR DUCT, Plastic
(Superseded to 7102326YP)

Note: or 1731891

$131.99

$

In Stock, only 1 left!

0

20

Snapper 1960295

SCREW, 1/4-20 x 5/8" Hex Whiz Lock Flange, Black
(Superseded to 1960295SM)

$4.49

$

In Stock, only 1 left!

0

21

Snapper 1930641

NUT, 1/4-20 Large Hex Flange Lock, Black
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7102076

LINK, Cruise Rod
(Superseded to 7102076YP)

$14.99

$

Usually ships in 2-12 days

0

23

Snapper 7400261

WELDMENT, Latch Arm
(Superseded to 7400261YP)

Note: or 7300820

$49.99

$

Usually ships in 2-12 days

0

24

Snapper 7101894

ROD, Pivot Cruise
(Superseded to 7101894YP)

$21.99

$

Usually ships in 2-12 days

0

25

Snapper 7300805

CHANNEL, CRUISE
(Superseded to 7300805YP)

$11.99

$

Usually ships in 2-12 days

0

26

Snapper 7101891

ACTUATOR, CRUISE
(Superseded to 7101891YP)

$35.99

$

Usually ships in 2-12 days

0

27

Snapper 7102074

PULL KNOB, 1/4-20 Thread
(Superseded to 7102074YP)

$5.99

$

Usually ships in 2-12 days

0

28

Snapper 7300696Z

BRACKET, Dash Support, RH
(Superseded to 7300696ZYP)

$50.99

$

In Stock, only 1 left!

0

29

Snapper 7300697Z

BRACKET, Dash Support, LH
(Superseded to 7300697ZYP)

$50.99

$

In Stock, only 1 left!

0

30

Snapper 7300810Z

BRACKET, Support Cruise
(Superseded to 7300810ZYP)

$7.49

$

Usually ships in 2-12 days

0

31

Snapper 7400252Z

WELDMENT, Clutch Rod Support

$

$

Currently unavailable

32

Snapper 7101860

SEAT, Hi Back
(Superseded to 1687498YP)

$445.99

$

Usually ships in 2-12 days

0

33

Snapper 7300875D

SUPPORT, Seat
(Superseded to 7300875DYP)

$51.99

$

Usually ships in 2-12 days

0

34

Snapper 720102

BOLT, 5/16-18 Shoulder
(Superseded to 009X56MA)

$3.49

$

Usually ships in 2-12 days

0

35

Snapper 720360

CAP, Push On
(Superseded to 703948)

Note: (for .375 dia. Stud)

$4.49

$

In Stock, Qty 20+

0

36

Snapper 721259

ROD, Pivot
(Superseded to 094156ZMA)

$7.99

$

Usually ships in 2-12 days

0

37

Snapper 721214

SPRING, Leaf
(Superseded to 094057MA)

$5.99

$

Usually ships in 2-12 days

0

38

Snapper 722851

SCREW, 1/4-14 x 3/8" Hex Washer Self-Tap
(Superseded to 26X229MA)

$4.49

$

In Stock, only 1 left!

0

39

Snapper 720163

WASHER, .34 x .62 x 16 GA Flat
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

40

Snapper 721425

WING BOLT, 5/16-18 UNC 2A
(Superseded to 1001054MA)

$6.99

$

Usually ships in 2-12 days

0

41

Snapper 720101

BOLT, 1/4-20 x 3.652 2A Shoulder
(Superseded to 009X55MA)

$3.49

$

Usually ships in 2-12 days

0

42

Snapper 721258

WASHER, Cup, 1.50 OD x 0.344 ID
(Superseded to 094155ZMA)

$3.99

$

Usually ships in 2-12 days

0

43

Snapper 727614

SPRING, Compression, 4.57 Free Length
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

44

Snapper 7300794D

BRACKET, Seat Pivot
(Superseded to 7300794DYP)

$33.99

$

Usually ships in 2-12 days

0

45

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

46

Snapper 720146

NUT, 1/4-20 Hex Flange Lock
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

47

Snapper 7300865Z

PLATE, Index
(Superseded to 7300865ZYP)

$22.99

$

Usually ships in 2-12 days

0

48

Snapper 720182

FASTENER, Panel
(Superseded to 0193X1MA)

$3.99

$

In Stock, only 1 left!

0

49

Snapper 7101772

MAT, Left
(Superseded to 7101772YP)

$17.99

$

Usually ships in 2-12 days

0

50

Snapper 7101773

MAT, Right
(Superseded to 7101773YP)

$17.99

$

Usually ships in 2-12 days

0

51

Snapper 7300818Z

STIFFENER, Steering
(Superseded to 7300818ZYP)

$43.99

$

Usually ships in 2-12 days

0

52

Snapper 7300772Z

BULKHEAD
(Superseded to 7300772BMYP)

$53.99

$

Usually ships in 2-12 days

0

53

Snapper 7300658Z

HOOD, Pivot LH
(Superseded to 7300658BMYP)

$80.99

$

Usually ships in 2-12 days

0

54

Snapper 7300657Z

HOOD, Pivot RH
(Superseded to 7300657BMYP)

$49.99

$

Usually ships in 2-12 days

0

55

Snapper 720097

BOLT, 3/8-16 Shoulder
(Superseded to 009X51MA)

Note: or 7101657

$4.99

$

In Stock, only 2 left!

0

56

Snapper 720142

NUT, 3/8-16 Hex Flange Lock, NC
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

57

Snapper 7101458

HARNESS, Headlight, TCT, 1/4 Terminals
(Superseded to 7101458YP)

$10.99

$

Usually ships in 2-12 days

0

58

Snapper 1727296

HEADLIGHT ASSY, (Includes #'s 59, 60, 61, & 62)
(Superseded to 1727296SM)

$237.99

$

In Stock, Qty 7

0

59

Snapper 1728973

REFLECTOR, Headlight
(Superseded to 1728973SM)

$237.99

$

In Stock, Qty 7

0

60

Snapper 1728974

LENS, Headlight
(Superseded to 1728974SM)

$237.99

$

In Stock, Qty 7

0

61

Snapper 1723451

SOCKET, Light
(Superseded to 1723451SM)

$28.99

$

In Stock, only 1 left!

0

62

Snapper 1677371

BULB, 12.8V (1141)
(Superseded to 1677371SM)

$30.99

$

In Stock, only 1 left!

0

63

Snapper 1728059D

GRILLE, Snapper
(Superseded to 1728059DSM)

$143.99

$

Usually ships in 2-12 days

0

64

Snapper 7101810

INSERT, Light Bar
(Superseded to 1739019YP)

$5.99

$

Usually ships in 2-12 days

0

65

Snapper 1732007

HOLE PLUG, Plastic
(Superseded to 1732007SM)

Note: for 7/8" dia. Hole

$4.49

$

Usually ships in 2-12 days

0

66

Snapper 7102404

STRIP, Trim
(Superseded to 7102404YP)

$6.99

$

Usually ships in 2-12 days

0
