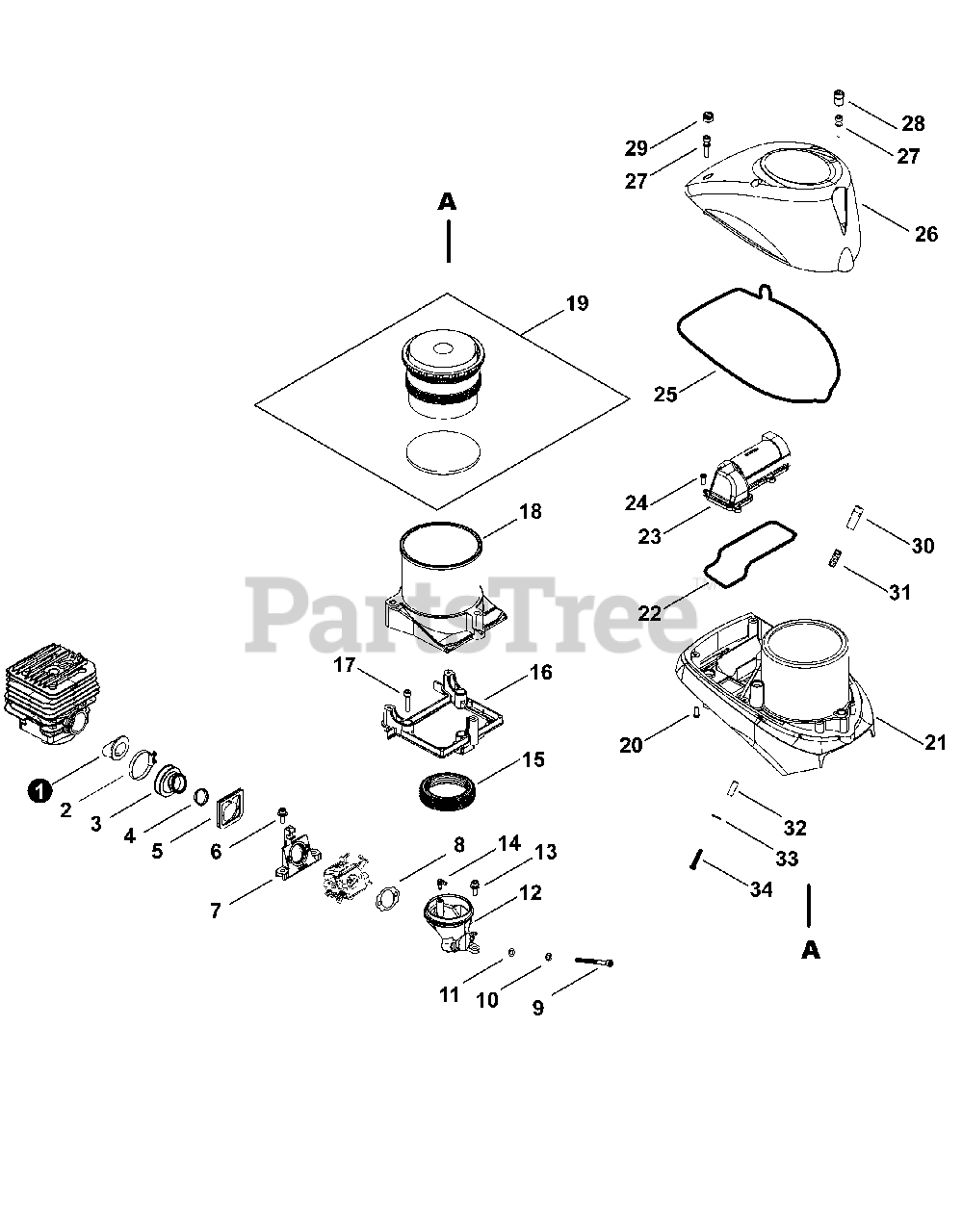

CSG-7410 - Echo Cut-Off Saw (SN: C72715001001 - C72715999999) Intake Parts Diagram

Cut-Off Saw

Intake Parts Diagram

  • Title
1

Echo A239000100

PIPE, INTAKE

$3.49

$

Usually ships in 2-4 days

0

$10.99

$

Usually ships in 2-4 days

0

3

Echo A202000280

BELLOWS, INTAKE

$30.99

$

Usually ships in 2-4 days

0

4

Echo V360000120

SLEEVE 18

$2.49

$

In Stock, only 4 left!

0

$3.49

$

Usually ships in 2-4 days

0

6

$1.49

$

Usually ships in 2-4 days

0

7

Echo A200001111

INSULATOR, INTAKE

$8.99

$

Usually ships in 2-4 days

0

8

Echo V103001270

GASKET, INTAKE

$1.99

$

In Stock, Qty 5

0

9

Echo 90010505060

BOLT 5×60

$2.49

$

In Stock, Qty 17

0

10

Echo 900605-00005

WASHER, SPRING 5 MM

$0.99

$

In Stock, Qty 9

0

11

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

12

Echo A204000241

ELBOW, CARBURETOR

$5.49

$

Usually ships in 2-4 days

0

13

$1.49

$

Usually ships in 2-4 days

0

14

Echo V186000530

CONNECTOR, PIPE

$1.49

$

In Stock, Qty 16

0

15

$8.99

$

Usually ships in 2-4 days

0

16

Echo A163000050

SUPPORT, FILTER

$27.99

$

Usually ships in 2-4 days

0

17

Echo V203000631

BOLT M5×25
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

18

Echo E616000070

CASE ASSY, AIR FILTER

$20.99

$

Usually ships in 2-4 days

0

19

Echo P021052670

AIR FILTER KIT

$46.99

$

In Stock, only 1 left!

0

20

Echo V252000630

SCREW 4

$0.99

$

In Stock, only 1 left!

0

21

Echo A232001990

COVER, AIR FILTER

$29.99

$

In Stock, only 1 left!

0

22

Echo A228000070

SEAL, CLEANER

$6.99

$

Usually ships in 2-4 days

0

23

Echo A232001980

COVER, AIR FILTER

$6.99

$

In Stock, only 1 left!

0

24

Echo V252000630

SCREW 4

$0.99

$

In Stock, only 1 left!

0

25

Echo A228000080

SEAL, CLEANER

$10.99

$

Usually ships in 2-4 days

0

26

Echo A160003590

COVER, CYLINDER

$30.99

$

Usually ships in 2-4 days

0

27

$1.99

$

Usually ships in 2-4 days

0

28

Echo V141000170

GROMMET, PLUG

$7.49

$

In Stock, only 1 left!

0

29

Echo V141000160

GROMMET, PLUG

$1.99

$

Usually ships in 2-4 days

0

30

Echo A607000040

SHAFT, DECOMPRESSSION

$1.49

$

Usually ships in 2-4 days

0

31

Echo V450002280

SPRING, COMPRESSION

$1.49

$

Usually ships in 2-4 days

0

32

$1.49

$

Usually ships in 2-4 days

0

33

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

34

Echo V253000850

SCREW 5

$0.99

$

Usually ships in 2-4 days

0
