CSG-7410 - Echo Cut-Off Saw (SN: C72715001001 - C72715999999) Fuel System Parts Diagram

Cut-Off Saw

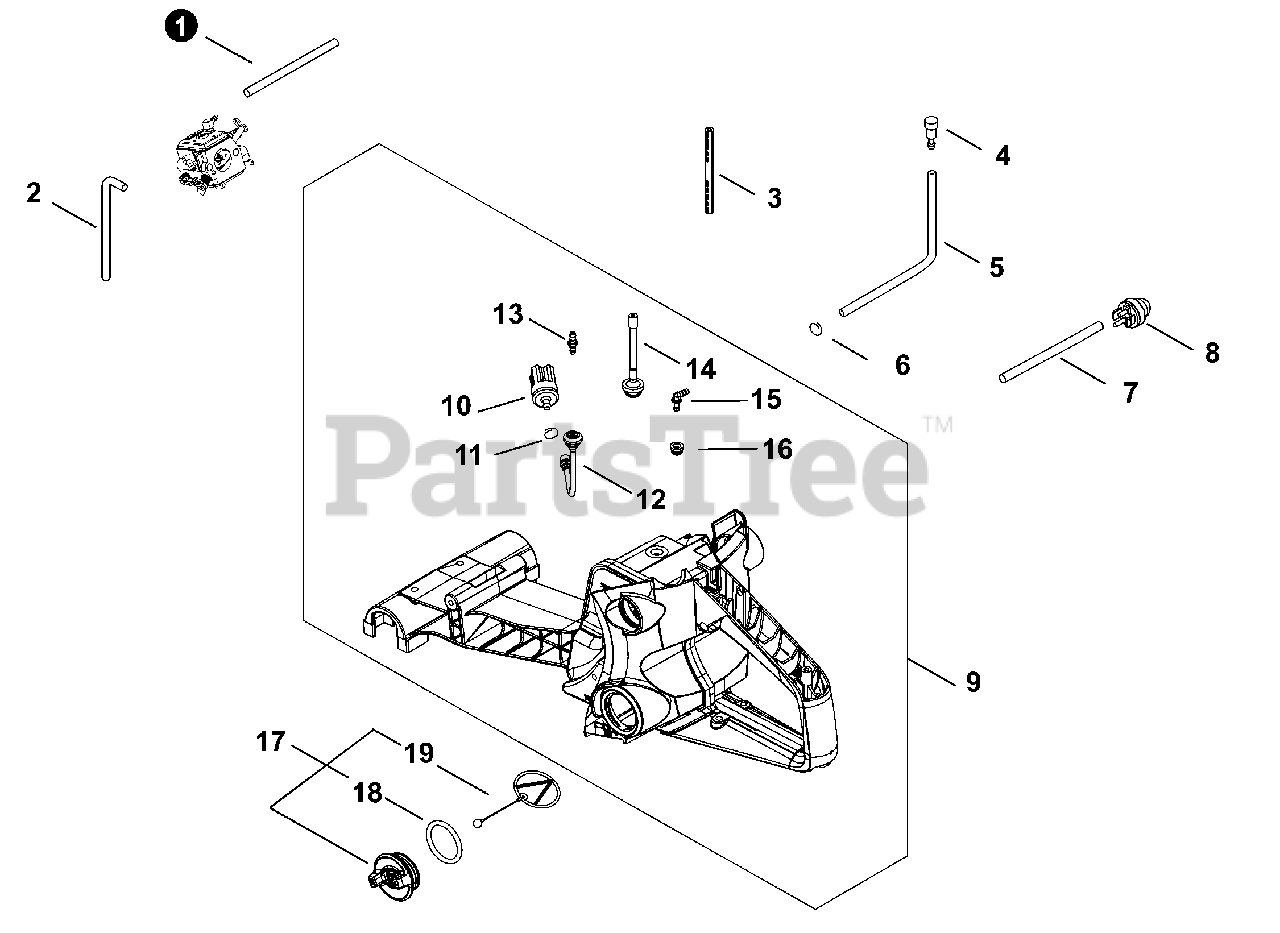

Fuel System Parts Diagram

  • Title

1

Echo V470001640

PIPE, PULSE

$8.99

$

Usually ships in 2-4 days

0

2

Echo V471002800

PIPE, PULSE

$8.99

$

Usually ships in 2-4 days

0

3

Echo V471003970

PIPE, FUEL 3×6×75

$4.49

$

In Stock, only 1 left!

0

4

Echo A356000190

VENT ASSY

$25.99

$

Usually ships in 2-4 days

0

5

Echo V471005400

PIPE, FUEL 3×5×255

$1.99

$

Usually ships in 2-4 days

0

6

Echo V490000580

CLIP

$0.99

$

In Stock, Qty 6

0

7

Echo V470001650

PIPE, FUEL

$7.99

$

Usually ships in 2-4 days

0

8

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

9

Echo P021052690

HANDLE ASSY, REAR
(Superseded to P021052691)

Note: Includes Items 10-16

$90.99

$

In Stock, only 1 left!

0

10

Echo A369000540

FILTER, FUEL

$16.99

$

In Stock, Qty 7

0

11

Echo V490000500

CLIP Ø6

$0.99

$

In Stock, Qty 20+

0

12

Echo V470001990

PIPE, FUEL
(Superseded to V470001991)

$6.99

$

In Stock, only 1 left!

0

13

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 5

0

14

Echo V470002130

PIPE
(Superseded to V470002131)

$6.49

$

In Stock, only 1 left!

0

15

Echo V186000530

CONNECTOR, PIPE

$1.49

$

In Stock, Qty 19

0

16

Echo V137000130

GROMMET, FUEL
(Superseded to V137000131)

$1.49

$

Usually ships in 2-4 days

0

17

Echo P100004890

CAP ASSY, FUEL

Note: Includes Items 18-19

$12.99

$

Usually ships in 2-4 days

0

18

Echo V581000600

O-RING 29

$2.49

$

In Stock, only 2 left!

0

19

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0
