CSG-7410 - Echo Cut-Off Saw (SN: C72715001001 - C72715999999) Carburetor Parts Diagram

Cut-Off Saw

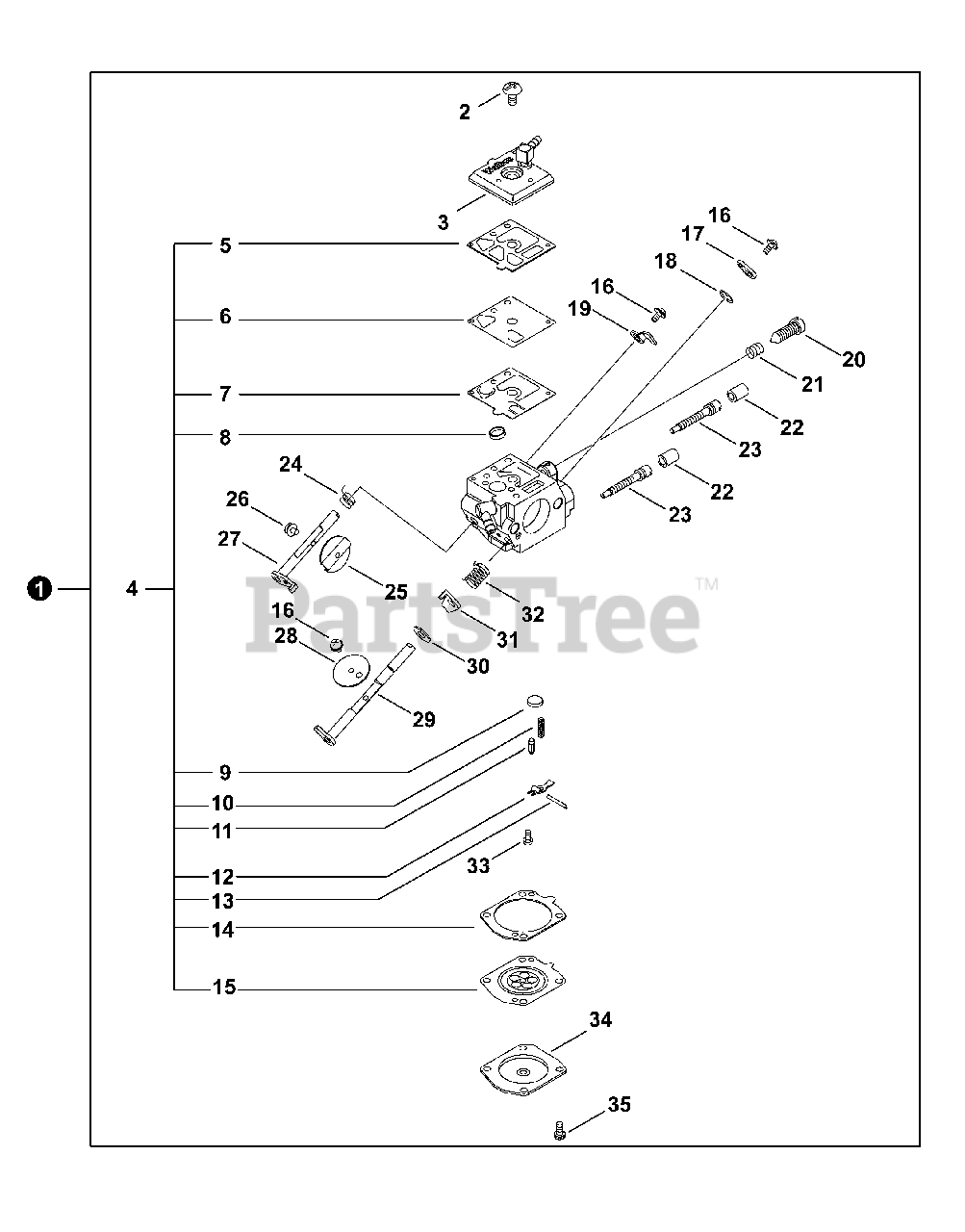

Carburetor Parts Diagram

  • Title
1

Echo A021004910

CARBURETOR

Note: Includes Items 2-35

$136.99

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

3

COVER, FUEL PUMP

$

$

Not available

4

Echo P021052740

REPAIR KIT, CARBURETOR

Note: Includes Items 5-15

$33.99

$

Usually ships in 2-4 days

0

5

Echo 12312512330

GASKET, FUEL PUMP

$2.99

$

In Stock, only 1 left!

0

6

Echo P003003150

DIAPHRAGM, PUMP

$16.99

$

Usually ships in 2-4 days

0

7

DIAPHRAGM, FUEL PUMP

$

$

Not available

8

Echo 12312610631

SCREEN, FUEL INLET

$1.49

$

In Stock, Qty 17

0

9

Echo 12314610631

PLUG, WELCH

$1.49

$

Usually ships in 2-4 days

0

10

SPRING, METERING LEVER

$

$

Not available

11

Echo 12313719830

VALVE, INLET NEEDLE

$18.99

$

Usually ships in 2-4 days

0

12

Echo 12312318330

LEVER, METERING

$4.49

$

Usually ships in 2-4 days

0

13

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

14

Echo 12314016130

GASKET, METERING DIAPHRAGM

$2.49

$

In Stock, only 1 left!

0

15

Echo P003004920

DIAPHRAGM, METERING
(Superseded to 12314116131)

$13.99

$

Usually ships in 2-4 days

0

16

$1.49

$

In Stock, Qty 13

0

17

Echo P003003020

LEVER, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

18

$0.99

$

In Stock, only 2 left!

0

19

Echo 12315630830

STOP, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

20

Echo P003003650

SCREW, IDLE ADJUST

$6.49

$

Usually ships in 2-4 days

0

21

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 15

0

22

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

23

NEEDLE, MIXTURE

$

$

Not available

24

Echo P003000560

SPRING, THROTTLE RETURN

$0.99

$

Usually ships in 2-4 days

0

25

Echo 12313216130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

26

$0.99

$

In Stock, only 2 left!

0

27

Echo P003003320

SHAFT ASSY, THROTTLE

$

$

Currently unavailable

28

VALVE, CHOKE

$

$

Not available

29

Echo P003003340

SHAFT ASSY, CHOKE

$19.99

$

Usually ships in 2-4 days

0

30

$0.99

$

In Stock, only 1 left!

0

31

Echo P003000620

LEVER, FAST IDLE

$1.49

$

Usually ships in 2-4 days

0

32

Echo P003000610

SPRING, CHOKE RETURN

$1.49

$

Usually ships in 2-4 days

0

33

$3.99

$

In Stock, only 1 left!

0

34

Echo P003003300

COVER, DIAPHRAGM

$

$

Currently unavailable

35

$1.99

$

Usually ships in 2-4 days

0
