CSG-680 - Echo Cut-Off Saw (SN: C23220001001 - C23220999999) Fuel System, Throttle Control Parts Diagram

Cut-Off Saw

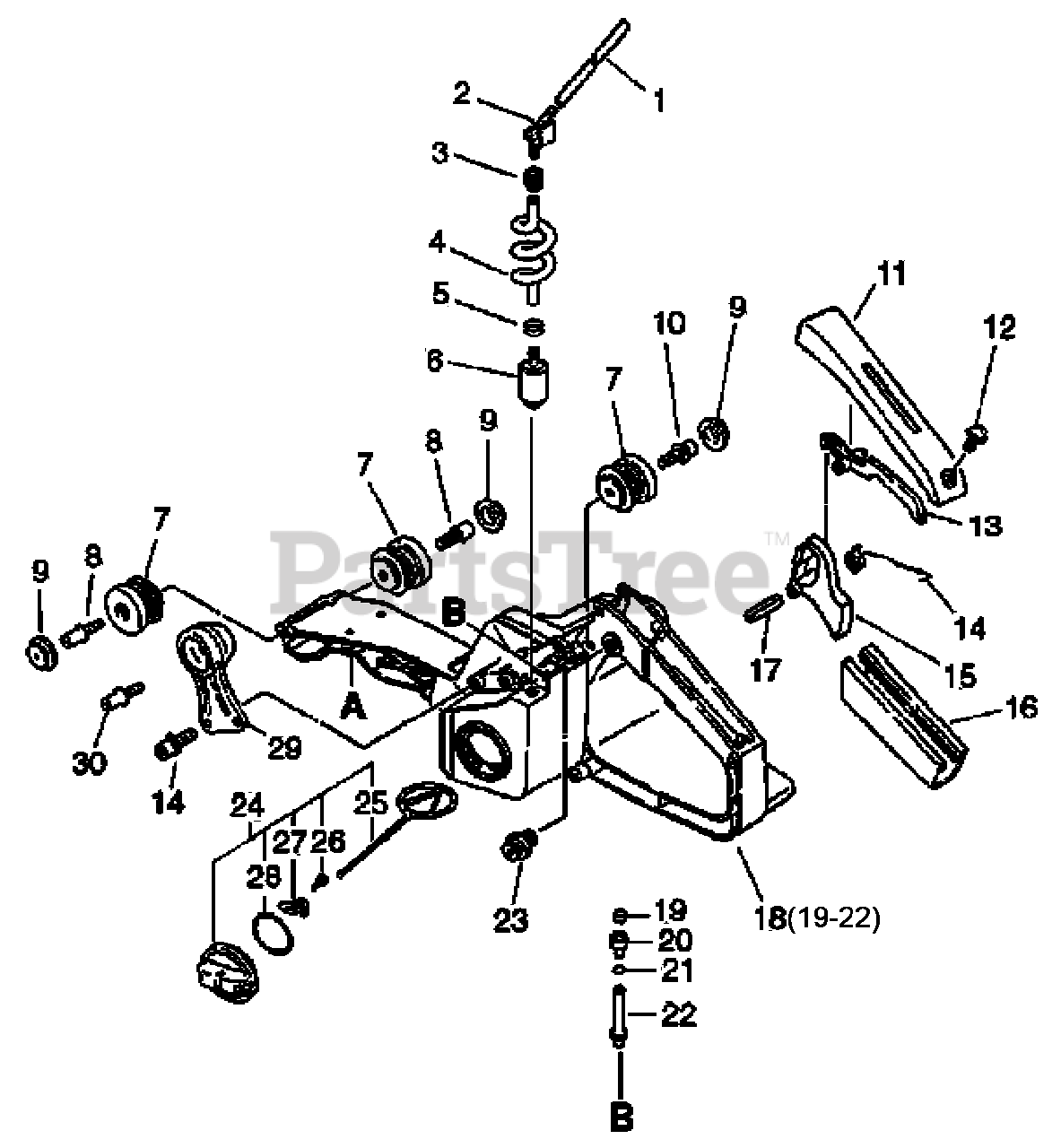

Fuel System, Throttle Control Parts Diagram

  • Title
1

Echo 43721720760

PIPE - 3X6X100 -- BLACK
(Superseded to 43721720761)

$5.49

$

In Stock, only 1 left!

0

2

Echo 13201133031

CONNECTOR, PIPE

$4.49

$

In Stock, only 1 left!

0

3

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 9

0

4

Echo 13201030830

PIPE - BLACK
(Superseded to 13201030831)

$5.99

$

In Stock, only 1 left!

0

5

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

6

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

7

$14.99

$

Usually ships in 2-4 days

0

$3.49

$

In Stock, Qty 11

0

9

Echo 10091819830

CAP, CUSHION

$1.99

$

In Stock, Qty 9

0

10

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

11

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$11.99

$

In Stock, only 2 left!

0

12

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

13

Echo 17809037930

LOCKOUT, THROTTLE

$4.99

$

In Stock, only 1 left!

0

14

Echo 17804319830

SPRING, TRIGGER

$2.49

$

In Stock, Qty 10

0

15

Echo C450000281

TRIGGER, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

16

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$6.49

$

In Stock, only 1 left!

0

17

Echo 90034250025

PIN - SPRING -- 5X25

$1.49

$

In Stock, Qty 10

0

18

Echo P021007482

HANDLE - REAR

$

$

Currently unavailable

19

Echo 13130056431

VENT, FUEL TANK

$7.49

$

In Stock, Qty 10

0

20

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 10

0

21

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

22

Echo 13131232430

PIPE - VENT

$13.99

$

Usually ships in 2-4 days

0

23

Echo 17830212330

LATCH, THROTTLE
(Superseded to 17830237930)

$9.99

$

In Stock, only 1 left!

0

24

Echo P021037420

CAP ASSY

$3.49

$

In Stock, Qty 18

0

25

Echo 13105119830

CONNECTOR, CAP
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

26

Echo 90024603008

SCREW - 3X8

$

$

Not available

27

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

28

Echo V581000600

O-RING - 29

$2.49

$

In Stock, only 2 left!

0

29

$20.99

$

In Stock, only 1 left!

0

30

$2.49

$

In Stock, Qty 5

0
