CSG-680 - Echo Cut-Off Saw (SN: C02004001001 - C02004999999) Intake Parts Diagram

Cut-Off Saw

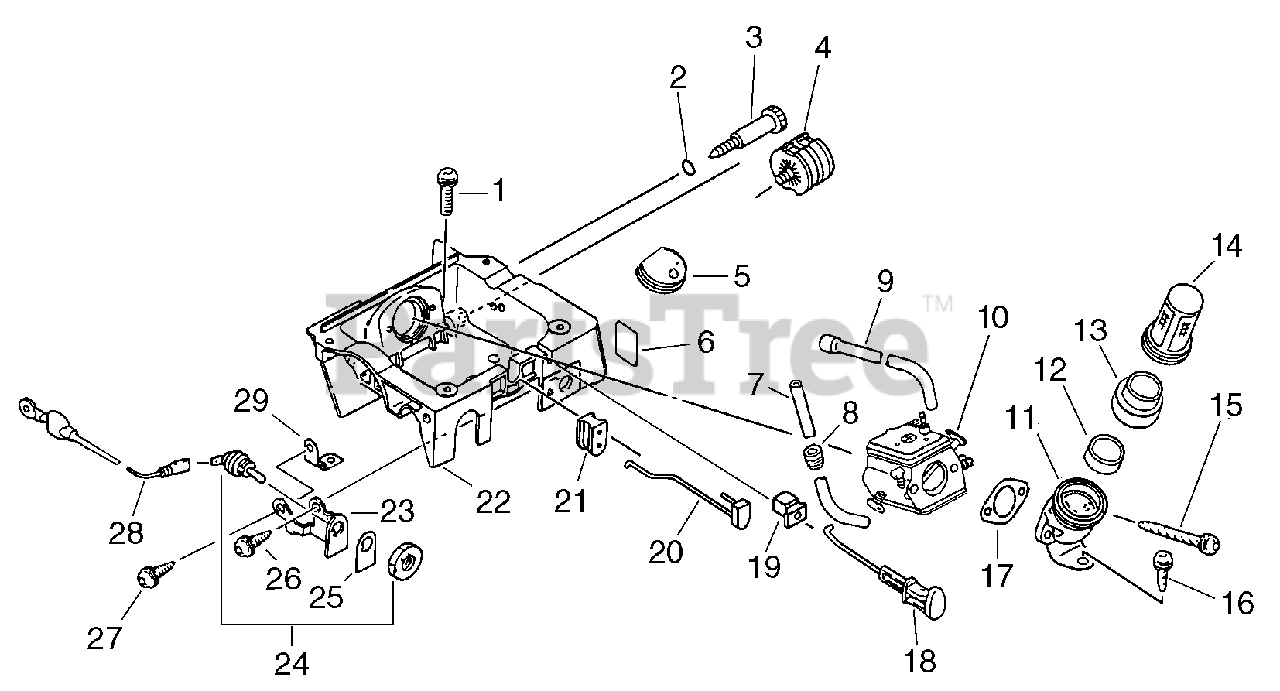

Intake Parts Diagram

  • Title
1

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

2

Echo 90072020007

O-RING - 7

$1.49

$

Usually ships in 2-4 days

0

3

Echo 12901307061

SCREW, IDLE ADJUST

$6.49

$

Usually ships in 2-4 days

0

4

$23.99

$

Usually ships in 2-4 days

0

5

Echo V140000010

GROMMET

$2.99

$

Usually ships in 2-4 days

0

6

Echo 89018503460

LABEL - IDLE

$0.99

$

Usually ships in 2-4 days

0

7

Echo 43721114730

PIPE - 3X6X130

$3.99

$

Usually ships in 2-4 days

0

8

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 9

0

9

Echo 13011019830

PIPE - IMPULSE
(Superseded to 13011019831)

$2.99

$

Usually ships in 2-4 days

0

10

Echo A021000730

CARBURETOR HDA-216

$89.99

$

In Stock, only 1 left!

0

11

Echo A204000030

ADAPTOR, INTAKE

$21.99

$

Usually ships in 2-4 days

0

12

Echo V362000020

COLLAR - 22

$1.99

$

In Stock, only 1 left!

0

13

Echo V420000690

CUSHION
(Superseded to V420000691)

$3.49

$

In Stock, only 1 left!

0

14

Echo 13082106060

SCREEN, DEBRIS

$5.99

$

In Stock, only 1 left!

0

15

Echo 90025205053

SCREW - 5X53

$0.99

$

Usually ships in 2-4 days

0

16

Echo 90025205014

SCREW - 5X14

$0.99

$

In Stock, only 2 left!

0

17

Echo 13001020760

GASKET, INTAKE

$1.99

$

Usually ships in 2-4 days

0

18

Echo 17851007060

ROD, CHOKE

$5.99

$

Usually ships in 2-4 days

0

19

$1.49

$

In Stock, only 2 left!

0

20

Echo C454000000

ROD, THROTTLE
(Superseded to C454000001)

$4.99

$

In Stock, only 1 left!

0

21

Echo 17811432630

GUIDE, THROTTLE ROD

$1.49

$

In Stock, only 2 left!

0

22

Echo A220000020

CASE, CARBURETOR

$24.99

$

Usually ships in 2-4 days

0

23

Echo 16381030130

BRACKET, SWITCH

$2.99

$

Usually ships in 2-4 days

0

24

Echo 16340030830

IGNITION SWITCH ASSY

$10.99

$

In Stock, only 1 left!

0

25

Echo 89034233930

LABEL - SWITCH

$

$

Currently unavailable

26

Echo 90025205010

SCREW - 5X10
(Superseded to Discontinued)

$

$

Not available

27

Echo 90025204010

SCREW - 4X10

$0.99

$

Usually ships in 2-4 days

0

28

Echo 16202132530

LEAD - GROUND

$3.99

$

Usually ships in 2-4 days

0

29

Echo 15663532530

TERMINAL - GROUND

$1.99

$

Usually ships in 2-4 days

0
