CSG-680 - Echo Cut-Off Saw (SN: C02004001001 - C02004999999) Ignition, Starter Parts Diagram

Cut-Off Saw

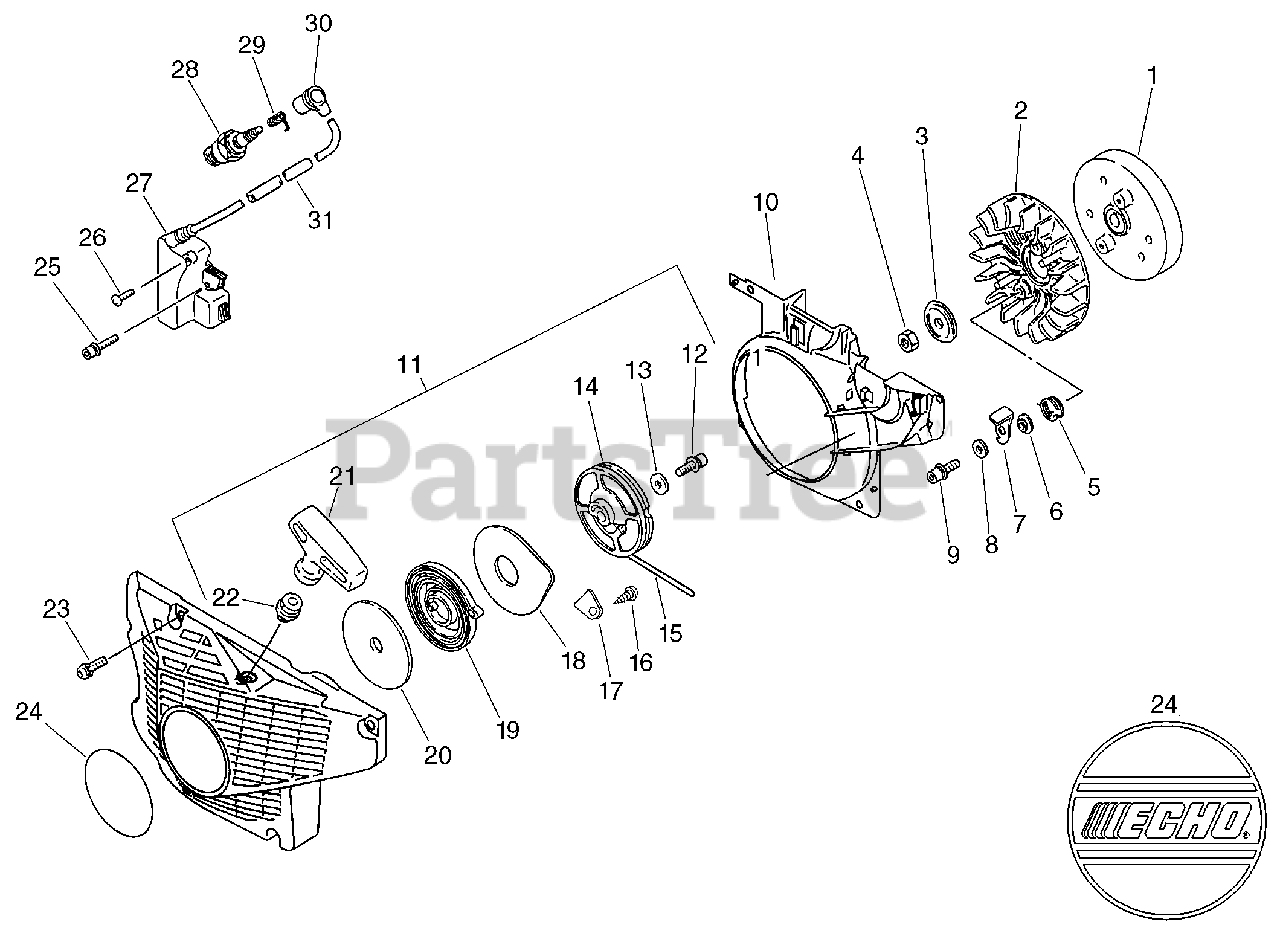

Ignition, Starter Parts Diagram

  • Title

1

Echo 15680032631

FLYWHEEL

$104.99

$

Usually ships in 2-4 days

0

2

Echo 10152132330

FAN

$14.99

$

Usually ships in 2-4 days

0

3

Echo 10014319830

WASHER - CUP

$1.49

$

In Stock, only 4 left!

0

4

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

5

Echo 17723419830

SPRING, RETURN
(Superseded to 17723419832)

$3.49

$

In Stock, Qty 5

0

6

Echo 17724707060

SPACER

$2.99

$

Usually ships in 2-4 days

0

7

Echo 17721832630

PAWL, STARTER
(Superseded to P021009870)

$16.99

$

In Stock, only 1 left!

0

8

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

9

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

10

Echo A172000130

COVER, FAN

$11.99

$

Usually ships in 2-4 days

0

11

Echo P021004210

STARTER ASSY

$

$

Not available

12

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

13

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 17721507060

REEL, ROPE

$8.99

$

Usually ships in 2-4 days

0

15

Echo 17722606060

ROPE, STARTER - 4X900

$11.99

$

Usually ships in 2-4 days

0

16

Echo 90025304008

SCREW - 4X8

$0.99

$

In Stock, only 2 left!

0

17

Echo 43314415130

RETAINER, BRAKE BAND

$1.99

$

In Stock, only 1 left!

0

18

Echo 17722107060

PLATE, STARTER

$10.99

$

In Stock, only 1 left!

0

19

Echo 17722002834

SPRING, REWIND

$21.99

$

In Stock, Qty 8

0

20

Echo 17722102830

PLATE, STARTER

$5.99

$

In Stock, Qty 7

0

21

Echo 17722830830

GRIP, STARTER
(Superseded to 17722830832)

$5.99

$

Usually ships in 2-4 days

0

22

Echo 17722707060

GUIDE, ROPE

$17.99

$

Usually ships in 2-4 days

0

23

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

24

Echo 89011817930

LABEL - ECHO

$7.99

$

In Stock, Qty 9

0

25

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

26

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

27

Echo 15660132631

COIL, IGNITION
(Superseded to 15660132632)

$138.99

$

In Stock, only 1 left!

0

28

Echo 15901010230

SPARK PLUG -- BPMR-7A

$3.99

$

In Stock, Qty 20+

0

29

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

30

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 11

0

31

Echo 15661119830

TUBE

$1.99

$

Usually ships in 2-4 days

0
