CSG-6700 - Echo Cut-Off Saw (SN: 002601 - 005530) Handles, Fuel System Parts Diagram

Cut-Off Saw

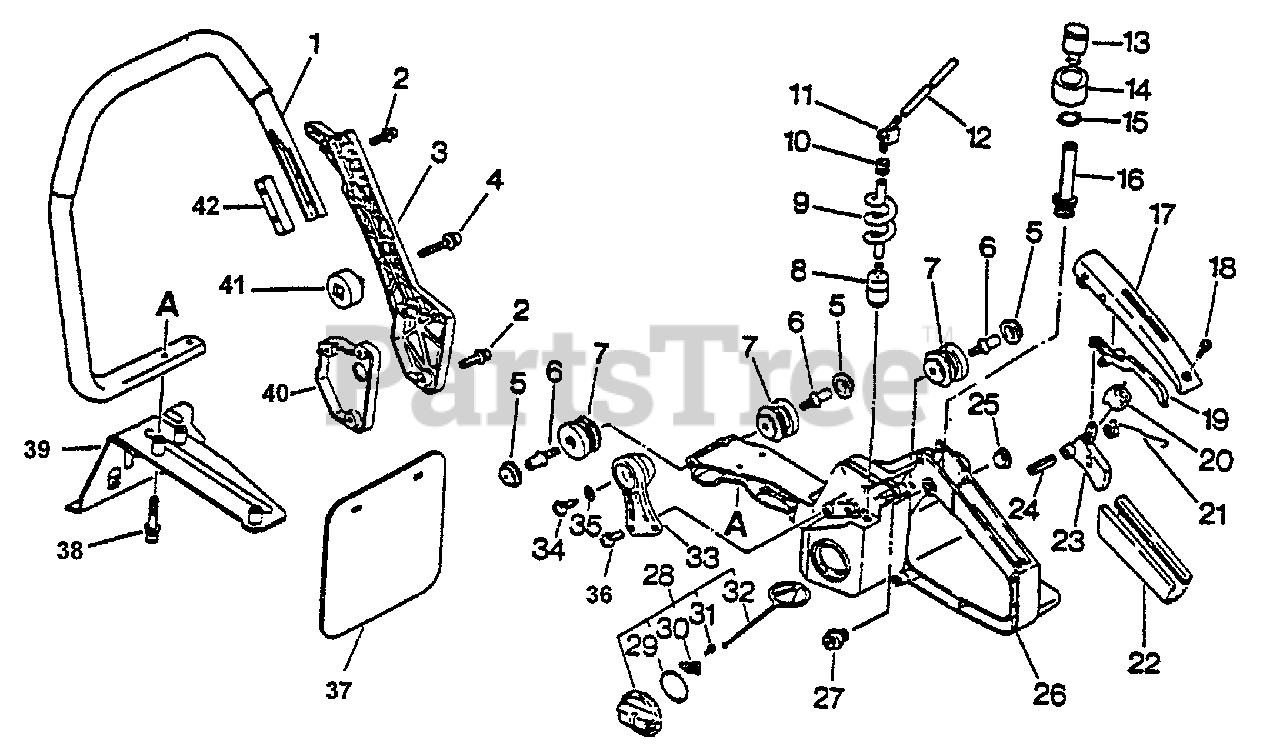

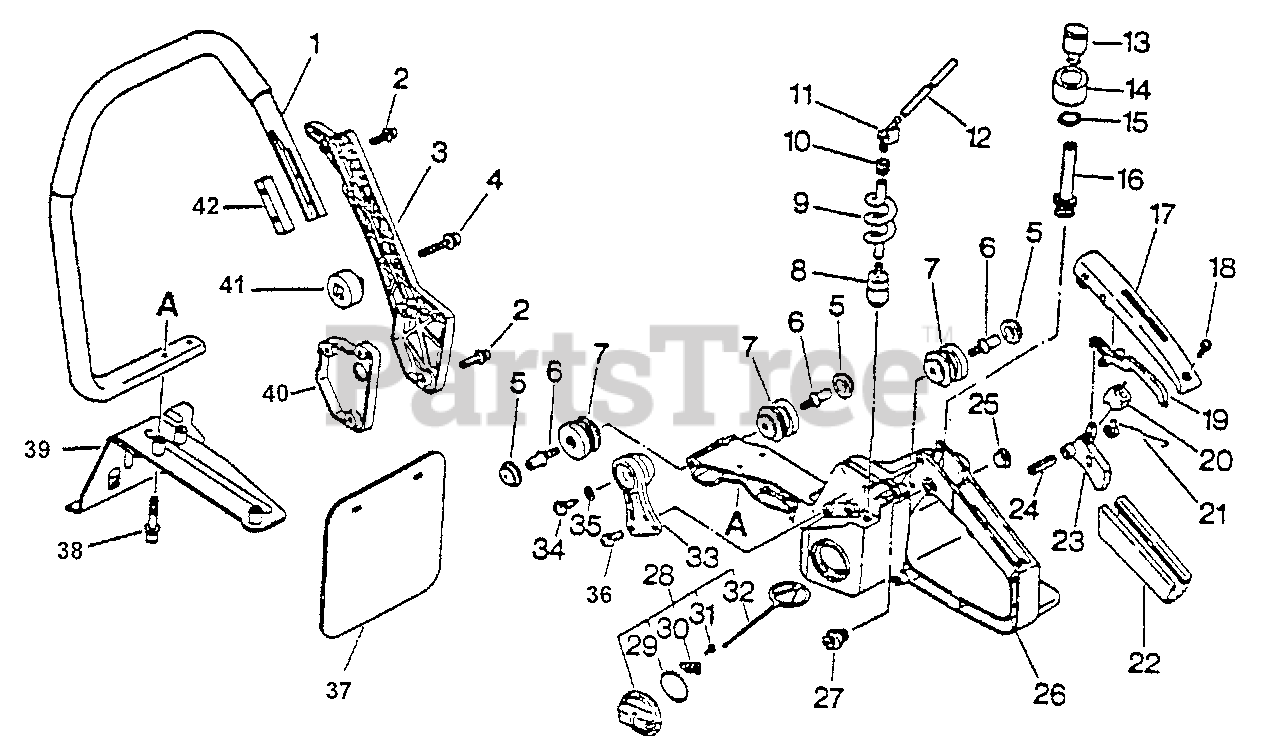

Handles, Fuel System Parts Diagram

  • Title

1

Echo 35160606060

HANDLE - FRONT

$111.99

$

Usually ships in 2-4 days

0

2

Echo 90023805035

SCREW - 5X35

$0.99

$

In Stock, Qty 12

0

3

Echo 35160332430

SUPPORTER, FRONT HNDL. KIT

Note: INCLUDES 10090532331 CUSHION

$73.99

$

Usually ships in 2-4 days

0

4

Echo 90023805030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

5

Echo 10091819830

CAP, CUSHION

$1.99

$

In Stock, Qty 9

0

6

Echo 10091532530

SCREW

$3.49

$

In Stock, Qty 11

0

7

Echo 10092232430

CUSHION

$14.99

$

Usually ships in 2-4 days

0

8

Echo 13120530830

FILTER, FUEL
(Superseded to 13120519830)

$9.49

$

In Stock, Qty 20+

0

9

Echo 13201030830

PIPE - BLACK
(Superseded to 13201030831)

$5.99

$

In Stock, only 1 left!

0

10

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 9

0

11

Echo 13201119830

CONNECTOR, PIPE
(Superseded to 13201119831)

$4.49

$

In Stock, only 1 left!

0

12

Echo 43721116431

PIPE - FUEL

$0.99

$

In Stock, Qty 20+

0

13

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 10

0

14

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 10

0

15

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

16

Echo 13131232430

PIPE - VENT

$13.99

$

Usually ships in 2-4 days

0

17

Echo 35115530131

COVER, HANDLE

$7.49

$

In Stock, only 4 left!

0

18

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

19

Echo 17809019830

LOCKOUT, THROTTLE

$4.49

$

Usually ships in 2-4 days

0

20

Echo 17807332430

CUSHION

$2.99

$

Usually ships in 2-4 days

0

21

Echo 17804319830

SPRING, TRIGGER

$2.49

$

In Stock, Qty 10

0

22

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$6.49

$

In Stock, only 1 left!

0

23

Echo 17800533330

TRIGGER, THROTTLE
(Superseded to 17801019830)

$4.49

$

Usually ships in 2-4 days

0

24

Echo 90034250025

PIN - SPRING -- 5X25

$1.49

$

In Stock, Qty 10

0

25

Echo 16391130130

PLUG

$1.99

$

Usually ships in 2-4 days

0

26

Echo 35110307061

HANDLE - REAR
(Superseded to 35110307062)

$210.99

$

Usually ships in 2-4 days

0

27

Echo 17830237930

LATCH, THROTTLE

$9.99

$

In Stock, only 1 left!

0

28

Echo 13100437631

CAP ASSY
(Superseded to 13100437632)

Note: INCLUDES ITEMS 29 - 32

$3.49

$

In Stock, Qty 18

0

29

Echo 90072000029

O-RING - 29

$3.49

$

In Stock, Qty 18

0

30

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

31

Echo 90024603008

SCREW - 3X8

$

$

Not available

32

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

33

Echo 10092132431

CUSHION

$20.99

$

In Stock, only 1 left!

0

34

Echo 90025305014

SCREW - 5X14

$1.49

$

In Stock, Qty 6

0

35

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

36

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 12

0

37

Echo 30511506060

SHIELD
(Superseded to 30511506061)

$10.99

$

Usually ships in 2-4 days

0

38

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

39

Echo 35161107060

FIXTURE, HANDLE

$35.99

$

Usually ships in 2-4 days

0

40

Echo 35161207060

SPACER
(Superseded to 35161207061)

$

$

Not available

41

Echo 35163006060

SPACER

$7.49

$

Usually ships in 2-4 days

0

42

Echo 30511406060

BRACKET

$6.99

$

Usually ships in 2-4 days

0
