CSG-6700 - Echo Cut-Off Saw (SN: 001001 - 002600) Carburetor Parts Diagram

Cut-Off Saw

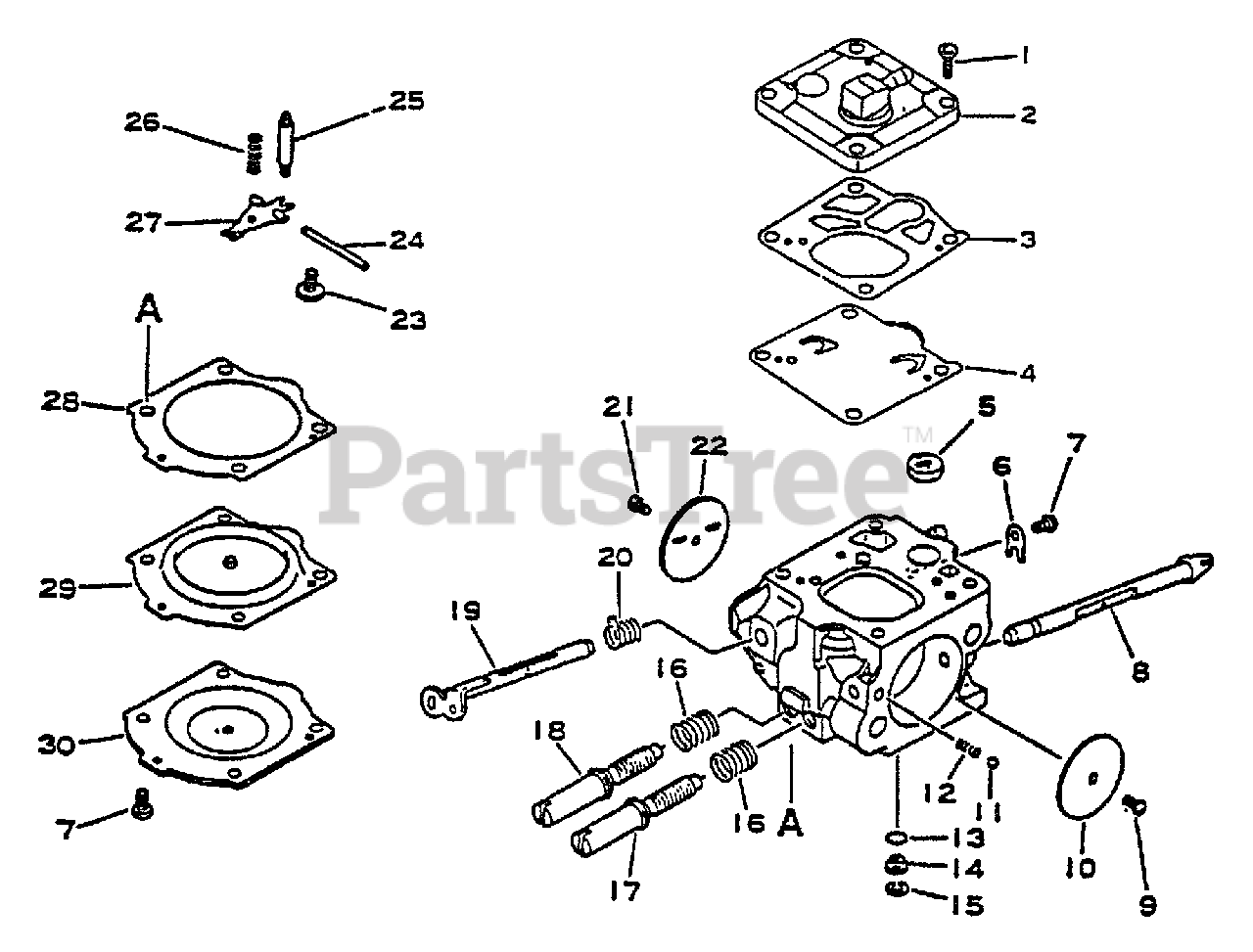

Carburetor Parts Diagram

  • Title

Echo 12300006060

CARBURETOR HDA-85
(Superseded to 12300006061)

$

$

Not available

1

Echo 12311010630

SCREW, PUMP COVER
(Superseded to Discontinued)

$

$

Not available

2

Echo 12312419830

COVER, PUMP

$7.99

$

Usually ships in 2-4 days

0

3

------------------

GASKET, PUMP

Note: Use Carburetor Kit, P/N 12310006060 & Gasket/Diaphram Kit, P/N 12310117330

$

$

Not available

4

------------------

DIAPHRAGM, PUMP

Note: Use Carburetor Kit, P/N 12310006060 & Gasket/Diaphram Kit, P/N 12310117330

$

$

Not available

5

------------------

STRAINER

Note: Use Carburetor Kit, P/N 12310006060

$

$

Not available

6

Echo 12312710630

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

7

------------------

SCREW

Note: Use Carburetor Kit, P/N 12310006060

$

$

Not available

8

Echo 12313119830

SHAFT, CHOKE

$5.49

$

Usually ships in 2-4 days

0

9

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 13

0

10

Echo 12313232430

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

11

Echo 12313610631

BALL, CHOKE
(Superseded to Discontinued)

$

$

Not available

12

Echo 12313510631

SPRING
(Superseded to Discontinued)

$

$

Not available

13

------------------

O-RING

Note: Use Carburetor Kit, P/N 12310006060

$

$

Not available

14

------------------

JET - 42

Note: Use Carburetor Kit, P/N 12310006060

$

$

Not available

15

------------------

WASHER

Note: Use Carburetor Kit, P/N 12310006060

$

$

Not available

16

------------------

SPRING

Note: Use Carburetor Kit, P/N 12310006060

$

$

Not available

17

Echo 12312006060

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

18

Echo 12311818331

NEEDLE - LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

19

Echo 12311732630

SHAFT, THROTTLE

$9.99

$

Usually ships in 2-4 days

0

20

Echo 12311316130

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

21

Echo 12315410630

SCREW
(Superseded to Discontinued)

$

$

Not available

22

Echo 12313216130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

23

------------------

SCREW, METERING LEVER PIN

Note: Use Carburetor Kit, P/N 12310006060

$

$

Not available

24

------------------

PIN, METERING LEVER

Note: Use Carburetor Kit, P/N 12310006060

$

$

Not available

25

------------------

VALVE, INLET NEEDLE

Note: Use Carburetor Kit, P/N 12310006060

$

$

Not available

26

------------------

SPRING, METERING LEVER

Note: Use Carburetor Kit, P/N 12310006060

$

$

Not available

27

------------------

LEVER, METERING

Note: Use Carburetor Kit, P/N 12310006060

$

$

Not available

28

------------------

GASKET, METERING

Note: Use Carburetor Kit, P/N 12310006060 & Gasket/Diaphram Kit, P/N 12310117330

$

$

Not available

29

------------------

DIAPHRAGM, METERING

Note: Use Carburetor Kit, P/N 12310006060 & Gasket/Diaphram Kit, P/N 12310117330

$

$

Not available

30

Echo 12314217330

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

Echo 12310006060

REPAIR KIT

$14.99

$

Usually ships in 2-4 days

0

Echo 12310117330

DIAPHRAGM/GASKET KIT

$8.99

$

Usually ships in 2-4 days

0
