CSG-670 - Echo Cut-Off Saw (Type 1E) (SN: 001001 - 999999) Handles, Fuel System Parts Diagram

Cut-Off Saw (Type 1E)

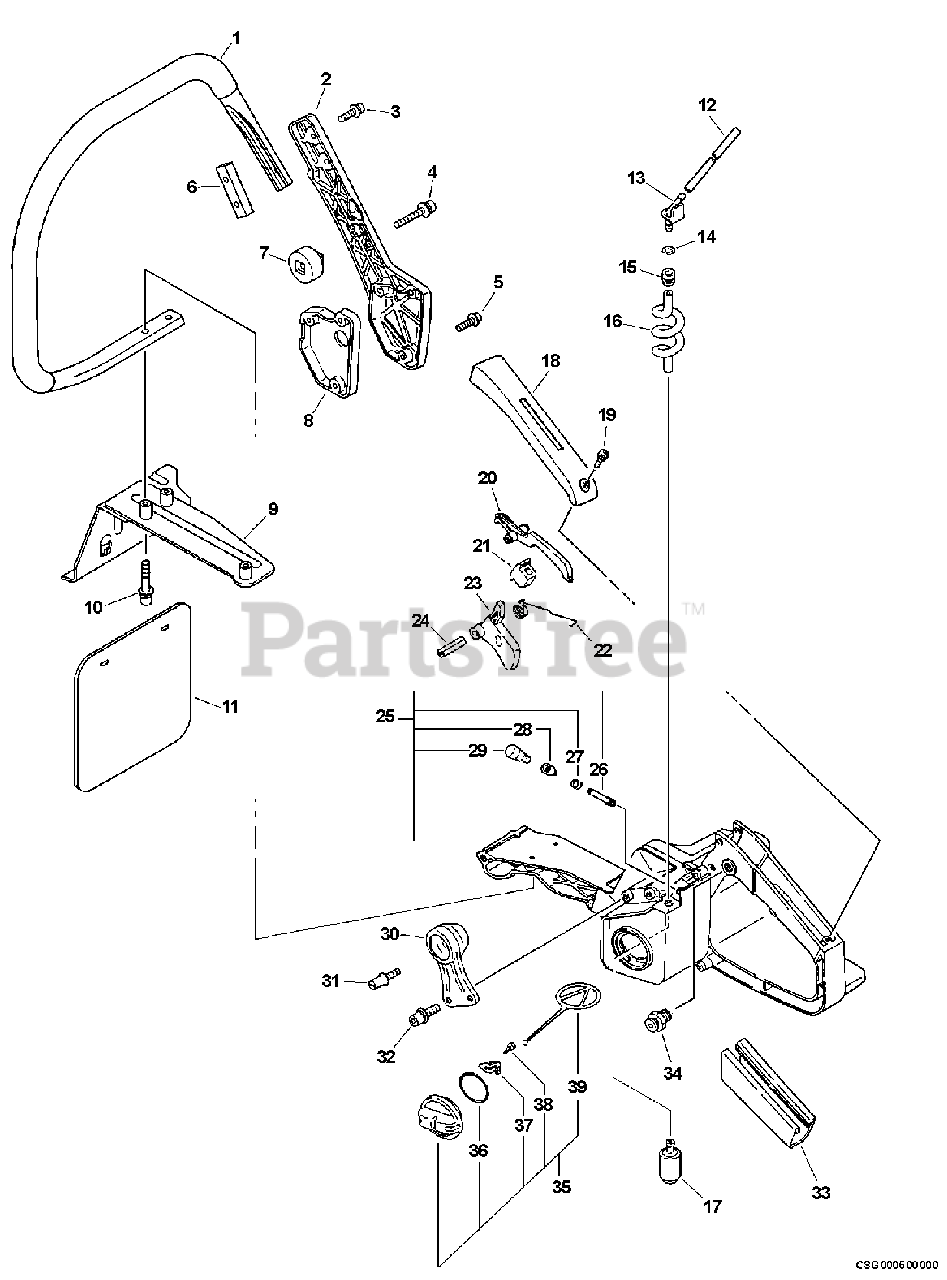

Handles, Fuel System Parts Diagram

  • Title

1

Echo 35160606060

HANDLE - FRONT

$111.99

$

Usually ships in 2-4 days

0

2

Echo 35161607060

BRACKET, HANDLE - OUTER

$45.99

$

Usually ships in 2-4 days

0

3

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

4

Echo 90023805030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

5

Echo 90023805035

SCREW - 5X35

$0.99

$

In Stock, Qty 12

0

6

Echo 30511406060

BRACKET

$6.99

$

Usually ships in 2-4 days

0

7

Echo 35163006060

SPACER

$7.49

$

Usually ships in 2-4 days

0

8

Echo 35161207060

SPACER
(Superseded to 35161207061)

$

$

Not available

9

Echo 35161107060

FIXTURE, HANDLE

$35.99

$

Usually ships in 2-4 days

0

10

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, Qty 10

0

11

Echo 30511506060

SHIELD
(Superseded to 30511506061)

$10.99

$

Usually ships in 2-4 days

0

12

Echo 13201219830

PIPE - 3X6X100 -- BLACK
(Superseded to 43721720760)

Note: RePower BULK OPTION: 90015

$5.49

$

In Stock, only 1 left!

0

13

Echo 13201119830

CONNECTOR, PIPE
(Superseded to 13201119831)

$4.49

$

In Stock, only 1 left!

0

14

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

15

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 19

0

16

Echo 13201030830

PIPE - BLACK
(Superseded to 13201030831)

$5.99

$

Usually ships in 2-4 days

0

17

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

18

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$11.99

$

In Stock, only 2 left!

0

19

Echo 90023804014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

20

Echo 17809037930

LEVER, TRIGGER LOCKOUT

$4.99

$

In Stock, only 1 left!

0

21

Echo 17807332430

CUSHION

$2.99

$

Usually ships in 2-4 days

0

22

Echo 17804319830

SPRING, TRIGGER

$2.49

$

In Stock, Qty 10

0

23

Echo 17801038130

TRIGGER, THROTTLE

$5.99

$

In Stock, Qty 5

0

24

Echo 90034250025

PIN - SPRING -- 5X25

$1.49

$

In Stock, Qty 10

0

25

Echo 35110307062

HANDLE - REAR

$210.99

$

Usually ships in 2-4 days

0

26

Echo 13131232430

PIPE - VENT

$13.99

$

Usually ships in 2-4 days

0

27

Echo 13011100530

CLIP - 5.5

$0.99

$

In Stock, Qty 20+

0

28

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 13

0

29

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

30

Echo 10092132431

CUSHION

$20.99

$

In Stock, only 1 left!

0

31

Echo 10091533930

SCREW

$2.49

$

In Stock, only 3 left!

0

32

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

33

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$6.49

$

Usually ships in 2-4 days

0

34

Echo 17830237930

LATCH, THROTTLE

$9.99

$

In Stock, only 1 left!

0

35

Echo 13100437631

CAP ASSY
(Superseded to 13100437632)

Note: INCLUDES ITEMS 36-39

$3.49

$

In Stock, Qty 15

0

36

Echo 90072020029

O-RING - 29

$3.49

$

Usually ships in 2-4 days

0

37

Echo 13105019830

RETAINER
(Superseded to Discontinued)

$

$

Not available

38

Echo 90024603008

SCREW - 3X8

$

$

Not available

39

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0
